Quick Details
-
Product name:
-

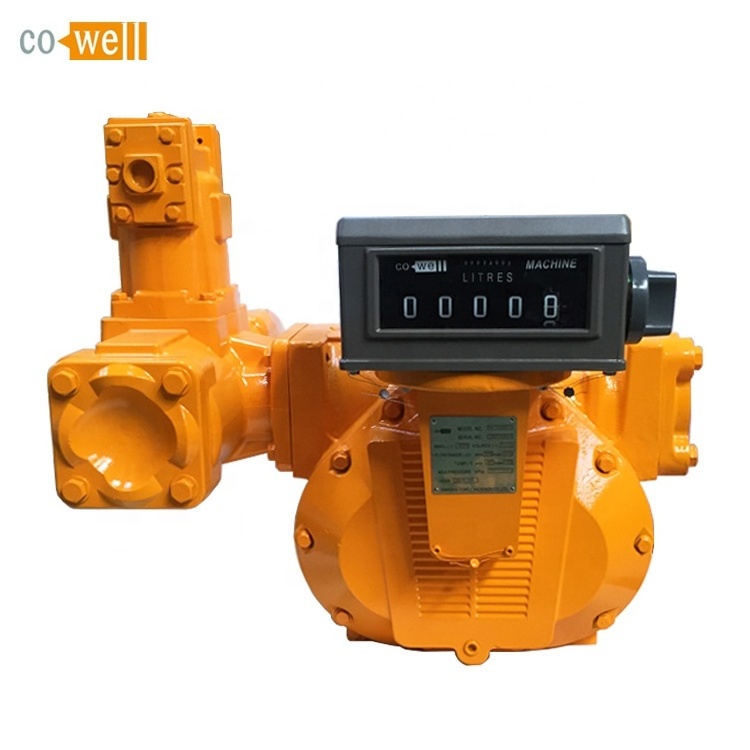

Counter Meter
-
Description:
-
Positive Displacement Flow Meter
-
Application:
-
Measuring flow capacity
-
Material:
-
Aluminium
-
Accuracy:
-
0.2%
-
Display:
-
Big digit
-
Color:
-
Yellow/Blue
Quick Details
-
Brand Name:
-
COWELL
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
M-50-1
-
Product name:
-
Counter Meter
-
Description:
-
Positive Displacement Flow Meter
-
Application:
-
Measuring flow capacity
-
Material:
-
Aluminium
-
Accuracy:
-
0.2%
-
Display:
-
Big digit
-
Color:
-
Yellow/Blue
|
Characteristics
Excellent stepless adjusting mechanism allows a micro adjustment on the meter;
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow;
Low maintenance, no metal-to-metal contact in measuring chamber, long life service;
Low pressure loss, a true gravity flow meter;
Accuracy regardless of pressure fluctuations, temperature variation, viscosity. |
| Model |
M-40-1 |
M-50-1 |
M-50H-1 |
M-80-1 |
M-80H-1 |
M-100-1 |
M-100H-1 |
M-150-1 |
M-150H-1 |
| Size |
40mm / 1.5” |
50mm / 2 " |
80mm / 3 " |
100mm / 4 " |
150mm / 6 " |
||||
| Flow Range (L/Min) |
25-250 |
38-380 |
55-550 |
75-750 |
115-1150 |
130-1300 |
170-1700 |
225-2250 |
300-3000 |
| Volume /Rev. |
0.309L |
0.681L |
1.839L |
5.102L |
9.507L |
||||
| Max. Pressure |
10Bar/150PSI |
25Bar/350PSI |
|||||||
| Accuracy |
±0.2% |
||||||||
| Repeatability |
≤0.05% |
||||||||
| Standard Measurement |
Liter / US Gallon/IMP Gallon |
||||||||
| Viscosity |
30SSU~1,500,000SSU |
||||||||
-
Refined petroleum products; A wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,. Aviation gasolines and jet fuels;
-
Treated waters (deionized, demineralized, and potable);
-
Chlorinated solvents and general solvent metering;
-
Acid pH liquids;
-
Liquefied petroleum gas(LPG);
-
Crude oil, also for heated and/or viscous liquids;
-
Oil or water based latex products, polyester resins, and adhesives (neutral pH), also for meteringherbicides and nitrogen fertilizer solutions;
-
Herbicide;
-
Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids
-
Abrasive liquids
Automotive; Adhesives; Agriculture; Asphalt ; Aviation fueling ; Animal feeds; Beverage; Cosmetics ;Chemical processing; Concrete Add mixtures; Dairy; Liquid fertilizers; Food processing ; Fuel oil delivery; General industrial; Hydrocarbon processing; Liquefied gases; Lube oils; Marine; Paint and varnish; Petroleum marketing; Petroleum production ; Pharmaceutical; Printing ink; Pulp &paper;Refining commercial Solvents; Recycling Railroad ; Textile.
