Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
100
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TwinPai
-
Model Number:
-
TP14-58/1800
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Outdoor, Hotel, Garage, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
100
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TwinPai
-
Model Number:
-
TP14-58/1800

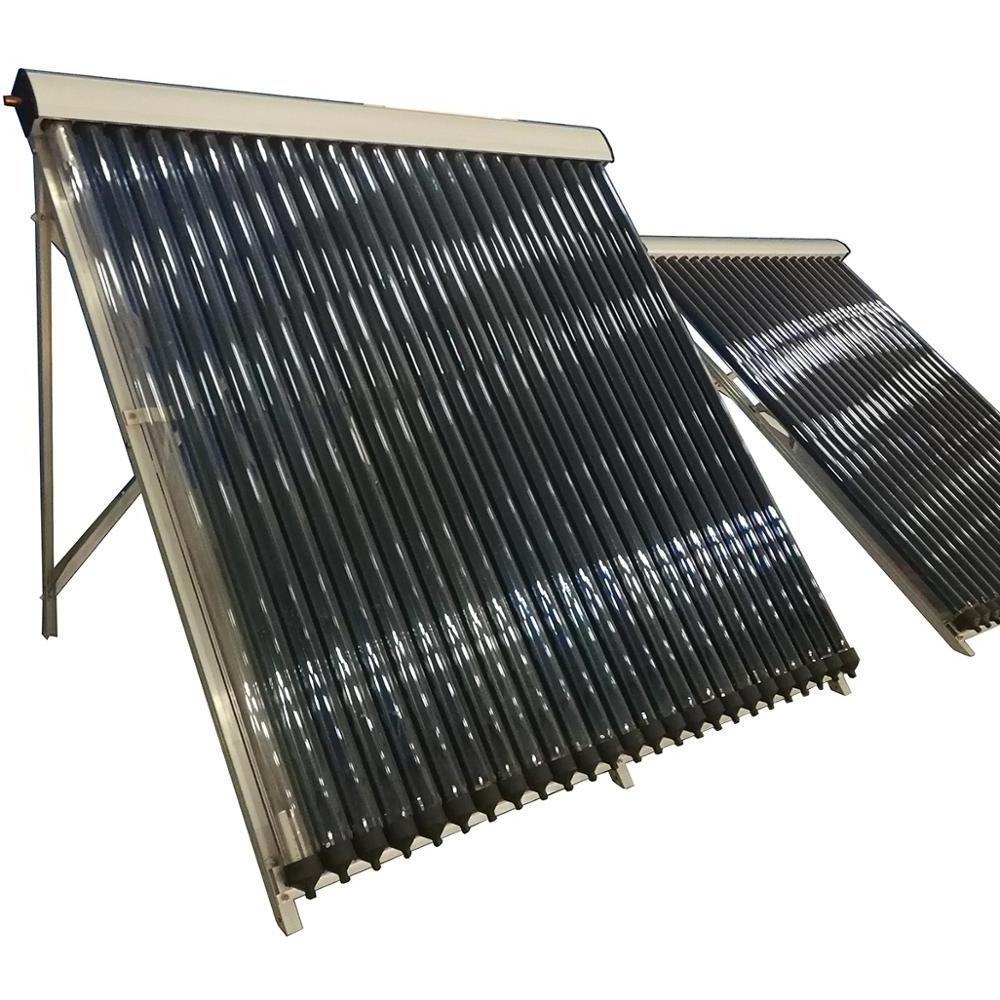

Heat Pipe Solar Water Heater Collector Specification
| Model | Tube | Size mm | Gross Area | Power Out | |||||
| FH14-58/1800-10H1 | 10 | 1933*795 | 1.54 | 850w | |||||
| FH14-58/1800-15H1 | 15 | 1933*1170 | 2.26 | 1275w | |||||
| FH14-58/1800-20H1 | 20 | 1933*1545 | 2.99 | 1700w | |||||
| FH14-58/1800-25H1 | 25 | 1933*1920 | 3.71 | 2125w | |||||
| FH14-58/1800-30H1 | 30 | 1933*2295 | 4.44 | 2550w | |||||
| Manifold | |||||||||
| Main tube | Ø 35*1mm | ||||||||
| Riser | Ø 16*1mm | ||||||||
| Distance tube | 75mm(70,73,75,78,80,83for choose) | ||||||||
| Insulatuon | 4cm(Insulation&Polyurethane) | ||||||||
| Inlet/outlet | 22mm,19.1mm,R3/4 | ||||||||
| Shell | Square Aluminum Alloy | ||||||||
| Absorber | |||||||||
| Evacuated tube | Ø 58*1800 |
|
|||||||
| Heat pipe | Condensor: Ø 14*70mm,Evaporator Ø 8*1630mm | ||||||||
| Aluminium fin | 0.16mm Thickness | ||||||||
| Frame | |||||||||
| Material | Aluminium Ally | ||||||||
| Angle | 0,30,45 | ||||||||
| Function | |||||||||
| Reistance Temperature | Below zero 25~200centigrade | ||||||||
| Stagnation | >220 | ||||||||
| Efficiency | 73% | ||||||||
| Rated Pressure | 600KPa | ||||||||
| MAX Pressure | 850KPa | ||||||||
| Suggested flow rate | 0.25L~1L/min*sqm | ||||||||
| Suggested MAX number connected directly | 180 tubes | ||||||||
