Quick Details
-
Voltage:
-
220V~380V
-
Power:
-
customized
-
Weight (KG):
-
8000
-
Drive mode:
-
air&pneumate&hydraulic device
-
Weight of sand mould:
-
100~250kgs
-
Number of pouring:
-
15~25
-
Diameter of the pouring:
-
30~40
Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Type:
-
Foundry Casting Molding Plant
-
Brand Name:
-
yuanbang
-
Voltage:
-
220V~380V
-
Power:
-
customized
-
Weight (KG):
-
8000
-
Drive mode:
-
air&pneumate&hydraulic device
-
Weight of sand mould:
-
100~250kgs
-
Number of pouring:
-
15~25
-
Diameter of the pouring:
-
30~40
superior quality green sand molding machine mini block molding machine making molding forming shape machine supplier
- Technology data
| Type | Z-Y4252 | Z-Y4555 | Z-Y5161 | Z-Y6171 |
| Size of sand box(mm) | 420*520 | 450*550 | 510*610 | 610*710 |
|
Height of sand mould
(Numerical control) |
(top)80~170
(bottom)80~150 |
(top)100~200
(bottom)100~200 |
(top)100~180
(bottom)100~180 |
(top)100~180
(bottom)100~180 |
| Modeling method | air shoot sand + hydraulic extrusion | |||
|
Modeling speed
(not includ the time of putting core) |
35sec/mold
100molds/hr |
38sec/mold
95molds/hr |
41sec/mold
90molds/hr |
45sec/mold
85molds/hr |
| Air consumption of shooting sand | 1.1m³ | 1.1m³ | 1.2m³ | 1.3m³ |
| Squeezing press | 0.6Mpa | 0.6Mpa | 0.7Mpa | 0.7Mpa |
| Drive mode | air&pneumate&hydraulic device | |||
| Input voltage | AC220V~380V | |||
| Motor power | 11KW | 11KW | 15KW | 15KW |

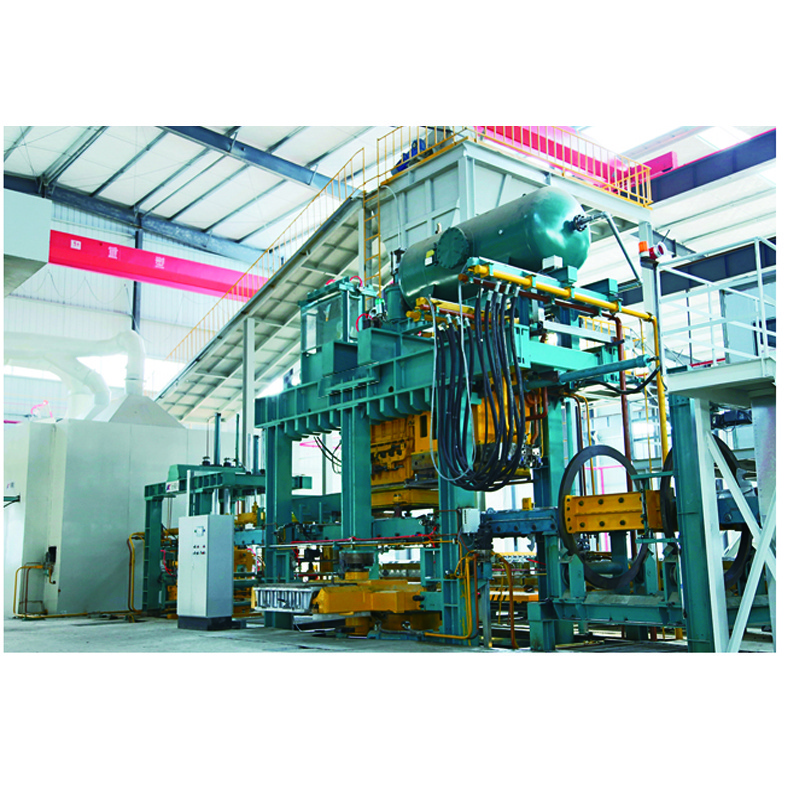

- About product and Practical case
- About company
Qingdao Yuanbang Machinery Manufacturing CO.,LTD. is a modern high-tech enterprise that specialized in manufacturing foundry sand preperation line / sand reclamation system / full set of automatic moulding line.
The company is located in the Tianzhuang Town Industrial Park in Qingdao and has a total area of 35000 square meters. Since its foundation, the company has closely cooperated with Tsinghua University Machinery Design Institute, Tianjin University. Shandong University, Shandong Jianzhu University and other domestic research institutions.
In the past more than thirty years, the company has provided good quality sand preparation system solutions for hundreds of well-known enterprises in China.
- FAQ
Q. Where is your factory located ? How can I visit it ?
A : Our factory is located in Qingdao city,Shandong province,China.You can fly to
Qingdao Jiaodong International Airport,IATA:TAO,ICAO:ZSQD
,we will pick you up.
Q. Are you produce machine’s specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine and so on.
Q. Do you test all your machine before delivery?
A: Yes, we pay much attention to quality control throughout the production process . And we have 100% test before delivery.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
