Quick Details
-
Noise:
-
<50dB
-
Wind speed:
-
20m/s
-
Filter effect:
-
0.3μm 99.99%
-
Smoking pipe:
-
Bamboo tube 50mm * L1.3M
-
Air volume:
-
260 m3/h
-
Size:
-
W420mm*T245mm*H450mm
-
Color:
-
white/black/blue/champagne
-
Air flow:
-
260m3/h
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
smoke purifier machine/fume extractor
-
Application:
-
soldering machine
-
Noise:
-
<50dB
-
Wind speed:
-
20m/s
-
Filter effect:
-
0.3μm 99.99%
-
Smoking pipe:
-
Bamboo tube 50mm * L1.3M
-
Air volume:
-
260 m3/h
-
Size:
-
W420mm*T245mm*H450mm
-
Color:
-
white/black/blue/champagne
-
Air flow:
-
260m3/h

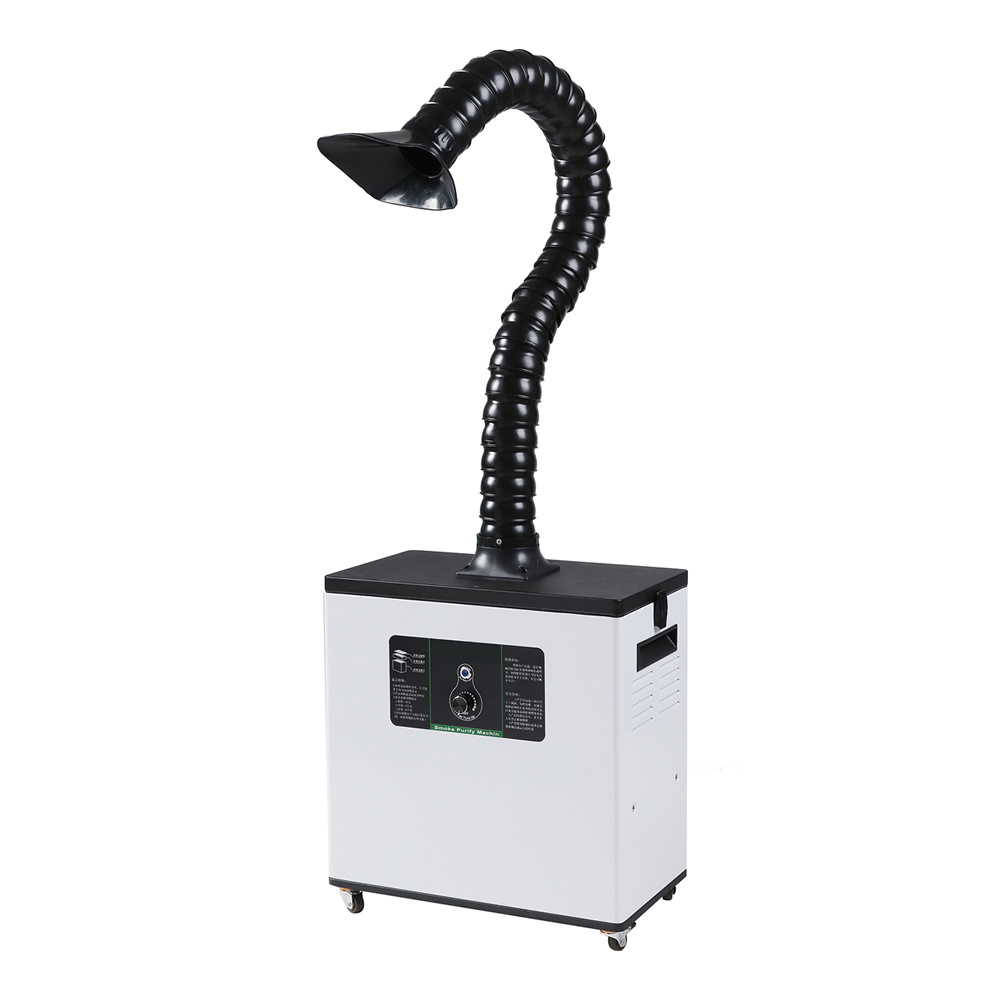

Liujiang smoke purifier machine Laser welding fume extractor , Smoke Absorber for laser cutting machine and soldering machine
Product parameters
|
Product parameters |
Single station |
Double station |
LCD models |
|
Into the air interface |
φ75mm |
φ75mm*2 |
φ75mm*2 |
|
Input voltage |
AC220V 50Hz |
AC220V 50Hz |
AC220V 50Hz |
|
rated power |
120W |
200W |
200W |
|
Wind speed |
20m/s |
2×12 m/s |
2×12 m/s |
|
Filter effect |
0.3μm 99.99% |
0.3μm 99.99% |
0.3μm 99.99% |
|
Noise |
<50dB |
<55dB |
<55dB |
|
Smoking pipe (standard) |
Bamboo tube 50mm*L1.3M |
Bamboo tube 50mm*L1.3M |
Bamboo tube 50mm*L1.3M |
|
Air volume |
260m³/h |
360m³/h |
360m³/h |
|
Size(mm) |
W420×T245×H450mm |
W420×T245×H450mm |
W420×T245×H450mm |
|
Weight (No smoking arms) |
14.5kg |
15.5kg |
15.5kg |
Product features
1.Appearance and structure
- simple and elegant appearance, steady and elegant. Body integration design, the use of metal frame structure, high-quality cold-rolled steel electrostatic spray process, durable. Brushed stainless steel panel with more classic and exquisite, refreshing!
- Both sides of the concave with high quality plastic handle, feel fine, stable and reliable, easy to handle.
- Inlet flange unique shape curve design, more in line with the principles of fluid dynamics.
- Install the user-friendly step less speed regulator, free to adjust the air flow and suction size.
- Small size, no need to install,it is conducive to clean and beautiful working space, easy to move.
2.Fan
- DC brushless motor, built-in controller form, performance, quality more secure.
- stable operation, low noise, high efficiency, low power consumption, long working hours. No regular maintenance, lower cost.
- Wind wheel with vortex-style design, special alloy material, effectively prevent the rotor is corroded. Unique balance correction technology, so that the rotor run more stable and reliable. High air volume, high suction, higher filtration rate.
3.Filter system
- Quad filter design. Filter layer by layer to ensure that harmful fumes are filtered out more thoroughly. Purification rate of up to 99.97%.
- modular design, layers of protection. Initial, middle and high efficiency can be replaced individually, filter longer life, replacement costs lower.
- Internal unique sealing structure, coupled with special sealing materials, so that all the harmful substances through the filtration system, filter more efficient.
- Built-in active recycling filter cycle, to avoid the indoor air ,heating discharge outdoors, do not undermine the operating temperature and humidity environment.
4.Smoke collection device
- Machine coupled with universal smoking arm, free to change, positioning (length can be customized according to customer requirements). Installed at the end with a new set of hood, unique shape, smoking more efficient.
- Installation is simple, easy to use, no additional pipe laying.
5.Safety certification and design standards, national patents
- meet CE, UL, WHO certification, safe and reliable.
- relies on design standards: "Indoor Air Quality Standards", GB21551.1-2008, GB / T 18801.
- access to the state issued by the appearance of design patents and machine structure utility model patents, counterfeit study!
