Quick Details
-
Brand Name:
-
Hiyoung
-
Weight:
-
8000 KG
-
Dimension(L*W*H):
-
1250*650*2150
-
Name:
-

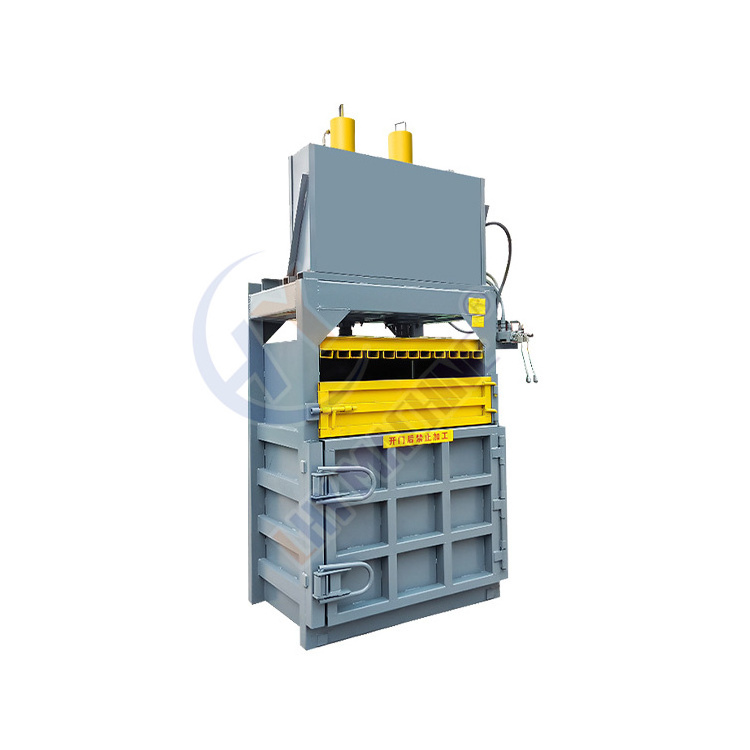

Vertical hydraulic baler
-
Machine type:
-
Hydraulic packer
-
Usage:
-
Fully automatic and manual
-
Control system:
-
Easy to operate
-
Hay balers Application:
-
Completely maintain the physical characteristics of the material
-
Baling track:
-
Two bundles for easy operation
-
Platen:
-
The platen automatically returns to position
-
Compression effect:
-
Anti-rebound barb, keep compression effect
-
Compaction ratio:
-
The waste compaction ratio can reach 5:1
-
Dynamic:
-
High power
Quick Details
-
Voltage:
-
220v/380v
-
Power:
-
4kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hiyoung
-
Weight:
-
8000 KG
-
Dimension(L*W*H):
-
1250*650*2150
-
Name:
-
Vertical hydraulic baler
-
Machine type:
-
Hydraulic packer
-
Usage:
-
Fully automatic and manual
-
Control system:
-
Easy to operate
-
Hay balers Application:
-
Completely maintain the physical characteristics of the material
-
Baling track:
-
Two bundles for easy operation
-
Platen:
-
The platen automatically returns to position
-
Compression effect:
-
Anti-rebound barb, keep compression effect
-
Compaction ratio:
-
The waste compaction ratio can reach 5:1
-
Dynamic:
-
High power
Product Description
Product Details
|
model
|
Motor（kw）
|
Package size
|
Overall
dimensions
|
oil pump
（mm）
|
Cylinder bore
|
Oil cylinder diameter
|
|
8T Single bar
|
4
|
600*400*600
|
1250*650*2150
|
306 Gear Pumps
|
80
|
90
|
|
10T Single bar
|
7.5
|
800*400*800
|
1450*650*2600
|
320 Gear Pumps
|
100
|
115
|
|
20T Single bar
|
7.5
|
800*400*800
|
1450*650*2700
|
325 Gear Pumps
|
125
|
140
|
|
30T Single bar
|
11
|
1000*600*800
|
1650*850*2750
|
532 Gear Pumps
|
140
|
160
|
|
30T Double bar
|
11
|
1000*600*800
|
1650*850*2700
|
532 Gear Pumps
|
100
|
115
|
|
40T Double bar
|
11
|
1000*600*800
|
1650*850*2750
|
550 Gear Pumps
|
125
|
140
|
|
60T Double bar
|
15
|
1200*800*1000
|
1600*2100*3100
|
563 Gear Pumps
|
140
|
160
|
|
80T Double bar
|
18.5
|
1200*800*1000
|
1700*2100*3300
|
563 Gear Pumps
|
160
|
180
|
|
100T Double bar
|
22
|
1200*800*1000
|
1700*2100*3900
|
563 Gear Pumps
|
160
|
180
|
|
120TFull steel plate
|
22
|
1100*700
|
1400*2000*4200
|
80YCY PZS
|
200
|
230
|
Product Real shot
