Quick Details
-
Brand Name:
-
AGFRC
-
Model Number:
-
AR-30A
-
Product name:
-
AR-30A
-
Constant Current:
-
30A
-
Peak Current:
-
40A
-
Input Voltage:
-
2-4s lipo
-
Dimension:
-
50*25*7mm
-
Weight:
-
24g
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Type:
-
ESC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AGFRC
-
Model Number:
-
AR-30A
-
Product name:
-
AR-30A
-
Constant Current:
-
30A
-
Peak Current:
-
40A
-
Input Voltage:
-
2-4s lipo
-
Dimension:
-
50*25*7mm
-
Weight:
-
24g

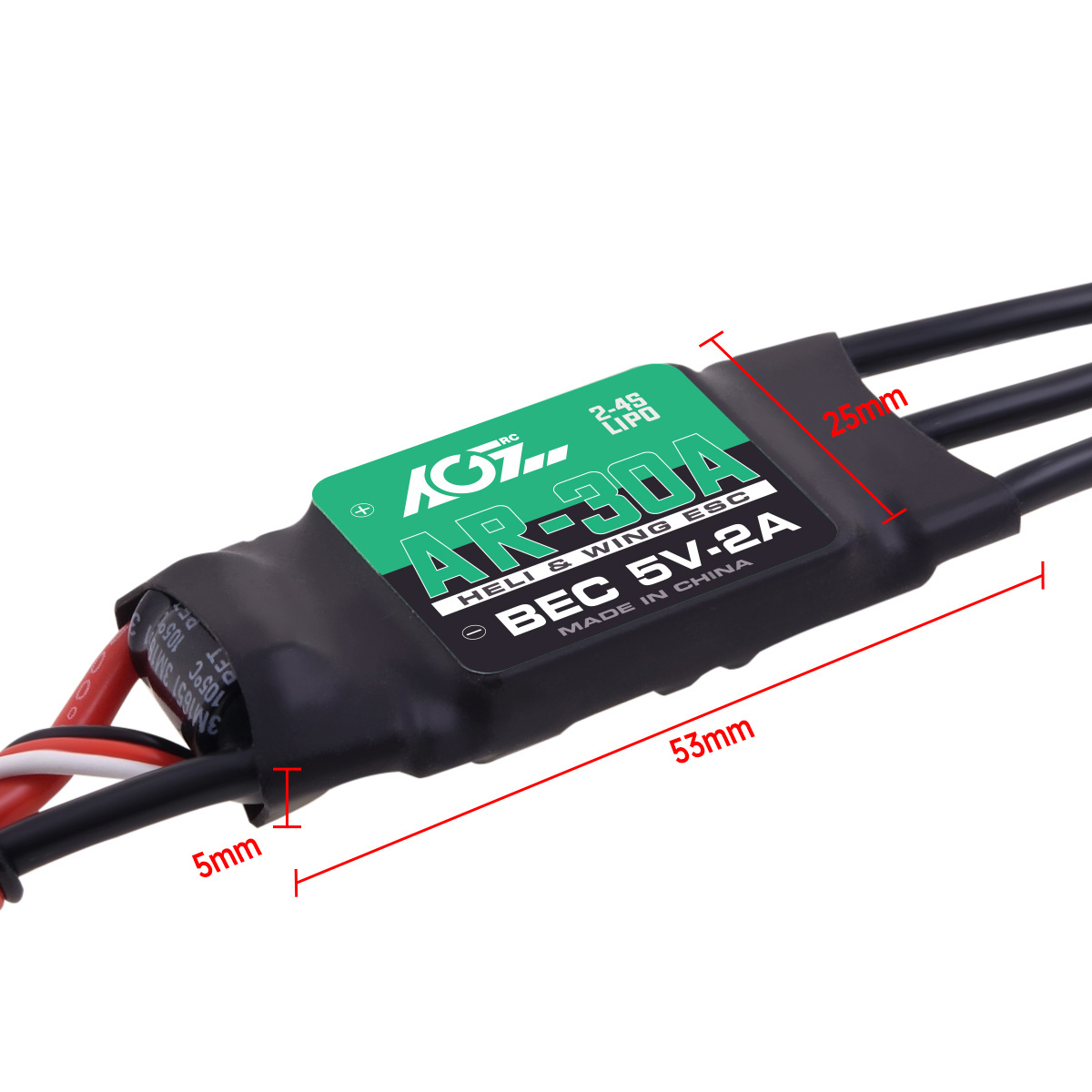

AGFRC AR-30A 2-4S Brushless 5V/2A Hobbywing 24g 30A Linear ESC For Fixed Wing Aircraft Helicopter
Products Description
|
Specification
Item Name: AR-30A Constant Current: 30A Peak Current: 40A Input Voltage: 2-4s lipo Dimension: 50*25*7mm Weight: 24g |
Main Features
1. All the components are original quality to ensure the high quality and reliability.
2. Import MOSFE with ultra-low resistance and 4 layer 3OZ copper plate for strong withstanding current.
3. Three start mode: regular start, soft start and super soft start, which compatible with fixed wing aircraft and helicopter.
4. Programmable throttle curve suitable for all kinds of remote controllers. Smooth and exquisite speed regulation, perfect speed linear.
5. The maximum rotation speed can up to 210000RPM (2 poles motor), 70000RPM ( 6 poles motor), 35000RPM (12 poles motor).
6. Multiple protection: input voltage abnormality protection, low voltage battery protection, overheat protection, throttle signal loss protection etc.
3. Three start mode: regular start, soft start and super soft start, which compatible with fixed wing aircraft and helicopter.
4. Programmable throttle curve suitable for all kinds of remote controllers. Smooth and exquisite speed regulation, perfect speed linear.
5. The maximum rotation speed can up to 210000RPM (2 poles motor), 70000RPM ( 6 poles motor), 35000RPM (12 poles motor).
6. Multiple protection: input voltage abnormality protection, low voltage battery protection, overheat protection, throttle signal loss protection etc.
