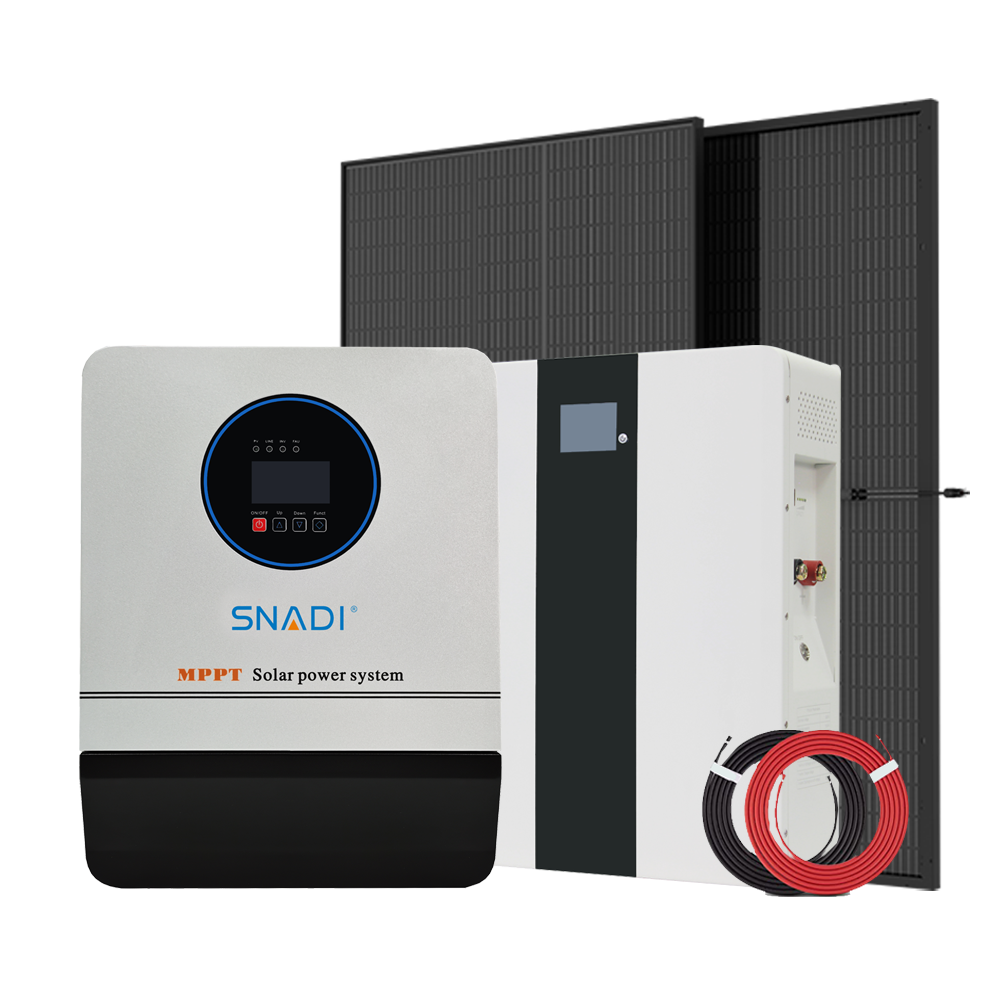

Complete Set 5KW off grid Solar Power System Solar Energy System 5000w house Hybrid Solar System with lithium battery backup

Complete Set 5KW off grid Solar Power System Solar Energy System 5000w house Hybrid Solar System with lithium battery backup

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1399

≥10 Pieces

US $1199

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Mounting Type:: Ground Mounting

Certificate:: CE ISO9001

Place of Origin:: Guangdong, China

Brand Name:: Snat

Model Number:: NKM-5KW

Output Voltage (V):: 110V/220V

Output Frequency:: 5KW

Work Time (h):: 24 HOURS

Product name:: NKM single phase Power-frequency Inverter

Output waveform:: Prue Sine Wave

Display:: LCD

Output Efficiency:: >85%(100% Resistive Load)

Logo:: Depends on customers

Ground mounting:: Ground Mounting Solar Energy System

OEM/ODM:: Accept

type:: solar energy system for home

Mounting Structure:: Roof Mounting Solar Energy System

Quick Details

Application:: Home

Solar Panel Type:: Monocrystalline Silicon, Polycrystalline Silicon

Battery Type:: Lead-Acid, Lithium Ion

Controller Type:: MPPT

Mounting Type:: Ground Mounting

Certificate:: CE ISO9001

Place of Origin:: Guangdong, China

Brand Name:: Snat

Model Number:: NKM-5KW

Output Voltage (V):: 110V/220V

Output Frequency:: 5KW

Work Time (h):: 24 HOURS

Product name:: NKM single phase Power-frequency Inverter

Output waveform:: Prue Sine Wave

Display:: LCD

Output Efficiency:: >85%(100% Resistive Load)

Logo:: Depends on customers

Ground mounting:: Ground Mounting Solar Energy System

OEM/ODM:: Accept

type:: solar energy system for home

Mounting Structure:: Roof Mounting Solar Energy System

Complete Set 5KW off grid Solar Power System Solar Energy System 5000w house Hybrid Solar System with lithium battery backup

5KW 10KWA SOLAR POWER SYSTEM FOR HOME

Home solar system
Target facilities	Personal residence
Application	Refrigerator, energy-saving lighting, TV, fan, street light
Advantage	The system structure is simple; Very suitable for scattered rural areas; Use more accurately because the user is a separate household.

Solar panels

- High efficiency A Grade mono cells, 300W

- 21% conversion efficiency

- Anti-reflection tempered glass

- Anodic aluminium-alloy frame

- MC4 junction box

NKM Hybrid Solar Inverter

- A wide range of input voltage

- Double CPU intelligent control technology

- Settable the mains mode

- Controlled by intelligent fan

- Pure sine wave AC output

- LCD display

- A utomatic protection

- Intelligent MPPT solar controller, overcharge, over discharge protection

PV array combiner box

- Applicable for outdoor PV systems
- Number of PV input array: 6
- Max input pv current each array: 16A
- Max output current: 96A, 600Vdc
- Lighting Protection, it reduces solar cable
IP65

LiFePO4 Lithium Battery

- Big discharge current, suitablefor solar system
- 25.6V/200Ah
- 70kg
- RS485/CAN compatible withdiferent brand of solar inverter

Mounting structure

- Pitched Roof, flat roof, tile roof, tin roof,

ground, vertical wall
- High Class Anodized Aluminum
- Wind Load: up to 130mph (60m/s)
- Snow Load: up to 30psf (1.4kN/m2)

Connection cable

- Solar panel cables 4mm2
- Battery connection cables 10mm2
- Electric cables Connector
- MC4 Solar connector
- Battery cable connector Connector
- MC4 Solar connector
- Battery cable connector

The solar power system consists of photovoltaic modules (including brackets), photovoltaic combiners, solar controllers, and batteries (including battery cabinets). If the load is AC equipment (220V or 110V), you need to configure the inverter. The functions of each part are as follows:

(1) Photovoltaic modules : Photovoltaic modules are an important part of solar power generation systems and a high value part of solar power generation systems. Its role is to convert the radiant energy of the sun into electrical energy, or send it to a battery for storage, or to drive the load.

(2) Photovoltaic combiner box : The photovoltaic combiner box is used to reduce the connection between the PV module and the inverter/controller and is convenient for maintenance. It has perfect functions such as anti-counter-attack, over-current protection and lightning protection to improve the product. Safety and reliability.

(3) Hybrid Inverter with MPPT controller inbulit : The electricity generated by the PV module is DC, and it cannot supply power to the AC load. The inverter needs to convert DC power into AC power and provide it to the load.

(4) Battery : Generally, lead-acid batteries and colloidal batteries are used. In small and micro systems, nickel-hydrogen
batteries, nickel-cadmium batteries or lithium batteries can also be used. Its function is to store the energy generated by the solar panel when there is light, and then release it when needed.

FAQ

Q1: What is the warranty of your product?
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.

Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.

Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.

Q4: What minimum order do you require?
A4: 1 piece.

Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
