Quick Details
-
Brand Name:
-
HTF/OEM
-
Use:
-
DWDM
-
Warranty Time:
-
3 Years
-
Center wavelength::
-
DWDM ITU 17~ITU61
-
Data Rate:
-
100Gbps
-
Client Side:
-
QSFP28 module
-
Line Side:
-
CFP 100Gbps coherent module
-
NMS:
-
TELNET, SNMP, WEB
-
Size:
-
191 (W) x 253 (D) x 42 (H) mm
-
Power Consumption:
-
≤50W
-
Operating Temperature:
-
-10℃ ~ 60℃
-
Storage Temperature:
-
-40℃ ~ 80℃
-
Certification:
-
CE RoHS FCC, FCC, RoHS, ce
Quick Details
-
Type:
-
DWDM OTN tansmission equipment
-
Model Number:
-
HT6000_OTUQ2CFP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HTF/OEM
-
Use:
-
DWDM
-
Warranty Time:
-
3 Years
-
Center wavelength::
-
DWDM ITU 17~ITU61
-
Data Rate:
-
100Gbps
-
Client Side:
-
QSFP28 module
-
Line Side:
-
CFP 100Gbps coherent module
-
NMS:
-
TELNET, SNMP, WEB
-
Size:
-
191 (W) x 253 (D) x 42 (H) mm
-
Power Consumption:
-
≤50W
-
Operating Temperature:
-
-10℃ ~ 60℃
-
Storage Temperature:
-
-40℃ ~ 80℃
-
Certification:
-
CE RoHS FCC, FCC, RoHS, ce
Products Description
Description

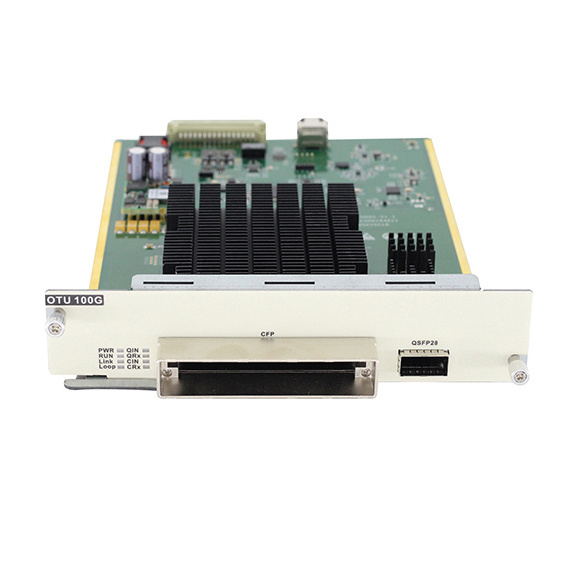

The 100G OTN Transmitter supports one QSFP28 client interface and one CFP line-side interface to support single-channel 100Gbps large-grain data transfers. The industry's most advanced coherent technology and FEC forward error correction coding technology enable high-capacity, long-distance high-performance transmission.
Function
* Media conversion
* Signal repeating
* Lambda conversion
* Media conversion
* Signal repeating
* Lambda conversion
Product Highlights
* Support single channel 100Gbps
* Client side: QSFP28 module
* Line side: CFP 100Gbps coherent module;
* Ultra-long-distance transmission: FEC technology can be used to achieve 1500km transmission without regeneration
* Large dispersion tolerance: 4nm
* Support port loopback test
* Support 80 channel wavelength tunable
* Client side: QSFP28 module
* Line side: CFP 100Gbps coherent module;
* Ultra-long-distance transmission: FEC technology can be used to achieve 1500km transmission without regeneration
* Large dispersion tolerance: 4nm
* Support port loopback test
* Support 80 channel wavelength tunable
HTF 100G Transponder includes integrated OTN FEC capability on the transponder, allowing operation over longer distances or in applications requiring ultra-low bit error rates.
The 100Gbps Transponders from HTF offer a choice of pluggable QSFP28 Client side optics and CFP Coherent DWDM line side optics based on distance and capacity requirements.
The Coherent DWDM Optics are the most technologically advanced and offer benefits on dispersion management, signal reach, andother optical properties. Coherent DWDM Optics can greatly increase the capacity and reach of an optical network, The 100G Transponder models fit for HT6000 Series CH04, CH08, CH20 Chassis.
The 100Gbps Transponders from HTF offer a choice of pluggable QSFP28 Client side optics and CFP Coherent DWDM line side optics based on distance and capacity requirements.
The Coherent DWDM Optics are the most technologically advanced and offer benefits on dispersion management, signal reach, andother optical properties. Coherent DWDM Optics can greatly increase the capacity and reach of an optical network, The 100G Transponder models fit for HT6000 Series CH04, CH08, CH20 Chassis.
Specifications
|
System Parameters
|
|
Technical Indicators
|
|
|
Center Wavelength
|
|
DWDM 1529.5~1565.50nm
|
|
|
Data Rate (Gbps)
|
|
100Gbps
|
|
|
100G Interface
|
Client Side
|
QSFP28 module
|
|
|
|
Line Side
|
CFP 100Gbps coherent module
|
|
|
FEC (Gain, Delay, BER Threshold)
|
GFEC
|
6.2dB, 1.2µs, 8.5e-2
|
|
|
|
100GE-SDFEC-LOW-LATENCY-SD2
|
10.6dB, 9.4µs, 1.40e-2
|
|
|
|
100GE-SDFEC-LH-SD2
|
9.4dB, 7.9µs, 1.01e-2
|
|
|
|
100GE-SDFEC-LOW-LATENCY-SD0
|
10.8dB, 9.4µs, 1.56e-2
|
|
|
NMS
|
|
TELNET, SNMP, WEB
|
|
|
Size
|
|
191 (W) x 253 (D) x 42 (H) mm
|
|
|
Environment
|
Operating Temperature
|
-10℃ ~ 60℃
|
|
|
|
Storage Temperature
|
-40℃ ~ 80℃
|
|
|
|
Relative Humidity
|
5% ~ 95% Non-condensing
|
|
|
Power Consumption
|
|
≤50W
|
|
Customized DWDM Solution
Ordering Information
|
Model
|
Function
|
Protocols
|
Client Side
|
Line Side
|
|
HT6000-OTUQ2CFP
|
Coherent 100G Transponder
|
LAN or WAN PHY: 100Gbps
|
QSFP28
|
CFP-DCO
|
HTF DWDM OTN equipment
HT6000 Series Chassis is the foundation for deploying and managing the HTF multi-service mixed-media solutions
|
HT6000 Series Chassis Optional
|
|
|
|
|||
|
CH04 Chassis: 482.5(W) x 350(D) x 44.5(H) mm
|
1U 19-inch chassis
|
1 network management slot
|
3 universal service slots
|
|||
|
CH08 Chassis: 482.5(W) x 350(D) x 89(H) mm
|
2U 19-inch chassis
|
1 network management slot
|
7 universal service slots
|
|||
|
CH20 Chassis: 482.5(W) x 350(D) x 222.5(H) mm
|
5U 19-inch chassis
|
1 network management slot
|
19 universal service slots
|
|||
|
Power Consumption: 1U <120W, 2U<200W, 5U<400W
|
|
|
|
|||
|
Support SNMP, Web, CLI multiple network management modes
|
|
|
|
|||
|
Support dual power supply redundancy protection, Power supply support AC: 220V / DC: -48V optional
|
|
|
|
|||
HT6000 Series Chassis support multiple service intermixing:
|
100G Transponder
|
100G OEO
|
4/8/16/40/48 Channel DWDM MUX/DEMUX, or OADM Card
|
|
2x100G to 200G Muxponder
|
25G OEO
|
4/8/16 Channel CWDM MUX/DEMUX
|
|
4x25G to 100G Muxponder
|
2x10G OCP Transponder
|
OLP Optical Line Protection
|
|
4x10G SFP+ Transponder
|
8x1.25G Convergence
10G Muxponder |
EDFA Card
|
