Quick Details
-
Weight:
-
2080 KG
-
Engine:
-
Chinese Famous Brand
-
Model:
-
DQ554
-
Drive type:
-
4*4
-
The smallest clearance:
-
325bottom of front axle
-
Color:
-
Customer Requirements
-
Options:
-
Air Brake
-
Name:
-
Agriculture Machinery Tractor Rotary Tiller
-
Engine type:
-
Diesel Powered
-
Style:
-
Crawler Self-propelled
Quick Details
-
Brand Name:
-
TIANDE
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
New Product 2023
-
Weight:
-
2080 KG
-
Engine:
-
Chinese Famous Brand
-
Model:
-
DQ554
-
Drive type:
-
4*4
-
The smallest clearance:
-
325bottom of front axle
-
Color:
-
Customer Requirements
-
Options:
-
Air Brake
-
Name:
-
Agriculture Machinery Tractor Rotary Tiller
-
Engine type:
-
Diesel Powered
-
Style:
-
Crawler Self-propelled
WARM PROMPT : All prices are subject to actural consultation .
Factory direct sale , best prices , quality is assured , and good service
TIANDE MACHINERY

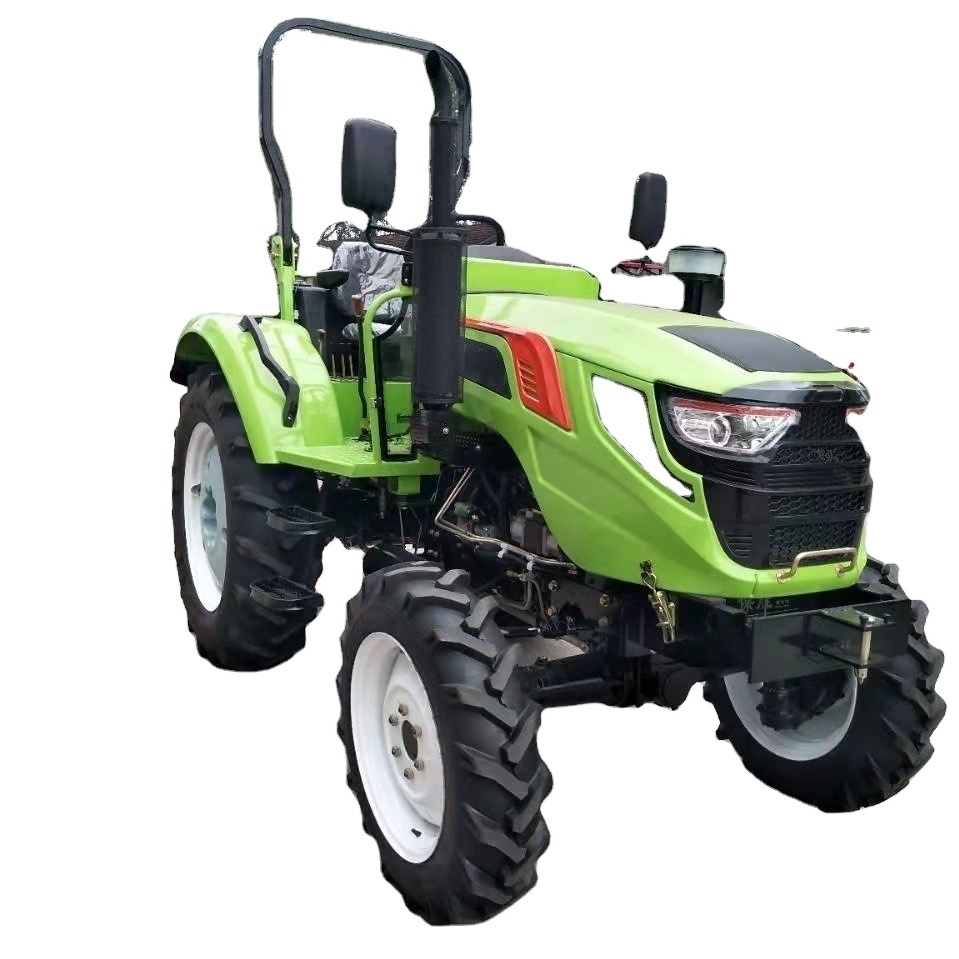

Cheap new mini cable farm hand tractor
| Model | TD504 | |
| Drive Type | 4x4 | |
| Overall Size | LxWxH (mm) | 3500x1750x2150 |
| Wheel Base(mm) | 1300 | |
| Axle Base (mm) | 2000 | |
| Min.Ground Clearance (mm) | 355 | |
| Engine | Type | WEICHAI / JD / LD / XC / QC |
| Rated Power(kw) | 36.8 | |
| Rated speed (r/min) | 2400 | |
| Fuel Tank(L) | 38L | |
| Tires | Front Tire | 7.5-16 |
| Rear Tire | 11.2-28 | |
| Clutch | Single-stage clutch | |
| Steering | Hydraulic | |
| Transmission Type | 8+2 | |
| Category of 3 point linkage | Rear, Cat I | |
| PTO speed | 6 teeth, 540/1000rpm | |
| Lifting force(at point of 610mm)KN | 12 | |
TD series tractors offer a wide range of compact tractors in various horsepower and chassis sizes that provides land owners, small farmers and commercial users the ability to select a model perfectly suited for their needs. Tractors have many function in agriculture, such as it can plow subsoiling, spray, harvest the grain, transport goods with a trailer, farmland planting with rotary tiller, etc.
Features of TD series tractors give many usable and suitable. It provides easy to operate and easy to maintain. Below is the detailed features of TD tractor.
Diesel Saver Unit
Hydraulics pumps of tractor can be disconnected from engine saving power suitable for haulage, threshing, compressor, Generator and trailed harrow.
Air Cleaner
Dry type air cleaner with pre cleaner and clogging system provide comfort while maintenance.
Clutch
Dual clutch is suitable for PTO driven applications which require PTO running during declutching reverse PTO clears clogging in reaper, thresher and etc.
Gear Box
Gearbox with side shift provides easy gear shifting more leg space centre and also available in select market.
Axle
Adjustable front axle is suitable in row crops like potato which require adjustable track width.
Power Steering
Power steering provides easy manoeuvring within small inside the field better operator comforts.
4 wheels drive
4 wheels drive provide better traction while heavy operation and sustaining heavier
Application
Tractors have many function in agriculture, such as it can plow subsoiling, planting seeds, spray, harvest the grain, transport goods with a trailer, farmland planting with rotary tiller, etc.
YOU MAY LIKE
Pre-Sales Service:
We will observe customer's working site to come up with an right model machine accordingly.
After-Sales Service:
Engineering will provide our cunstomers the best services to avoid your trouble back at home.
JINING TIANDE MACHINERY Co.,Ltd was founded in 2000 , located in Jining city Shandong province which is a traditional machinery industry base in North China . Our company is specialized manufacturer which integrates research , production and sales enterprises in China agricultural enterprises .
We have 28 R&D engineers and more than 300 personnel . Our major products are tractors, cultivators , subsoilers, sowing and fertilizing machines , straw collecting and handing machines , farmland fundamental machines , and other agricultural machinery .
TIANDE has gained the domestic well-know market validation . And we also received majority of customers' favorable comment from international customers .
Hope to join hands with you , please don't hesitate to contact to us .
FAQ
Q1 What kind terms of payment can be accepted?
A For terms of payment, L/C,T/T, Trade Assurance could accepted.
Q2 What certificates are available in Machinery?
A For the certificate, we have ISO, CE.
Q3 What about the delivery time?
A Within 5 days after receiving the deposit.
Q4 What about the warranty time?
A 18 months after shipment.
Q5 Could we support personalized services?
A Yes, we could personalize product’s color and other things.
Q6 Do you test for your all goods before delivery ?
A Yes , all the goods will be teased by three times .
Q7 Can you produce according to our requirement ?
A : Yes , our professional engineer team can produce in accordance with your request .
