Quick Details
-
Brand Name:
-
Fibertel
-
Use:
-
FTTH
-
Warranty Time:
-
1 Year
-

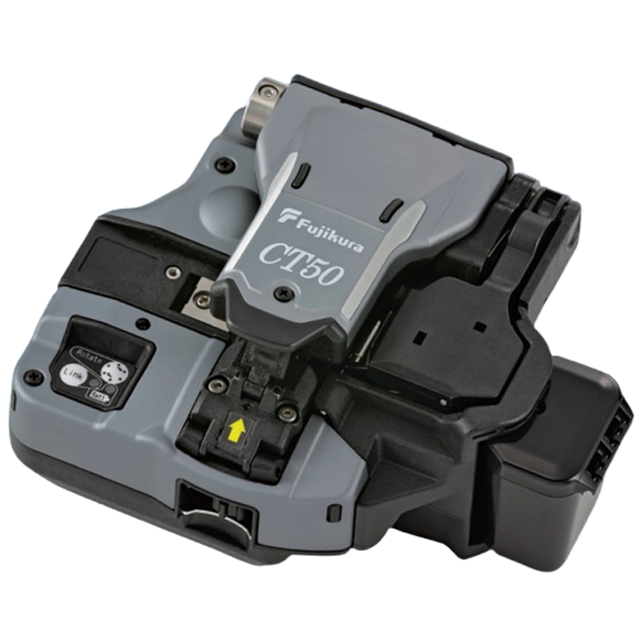

Product name:
-
Fiber Optic Cleaver
-
Part No.:
-
TJ01CCT50
-
Fiber count:
-
Up to 12
-
Cladding diameter:
-
125 μm
-
Coating diameter:
-
160 to 900μm 2 to 3mm cord and drop cable
-
Cleaving angle*1:
-
Typical 0.5 degrees
-
Blade life:
-
Typical 60,000 fibers
-
Dimensions:
-
120(W) x 95(D) x 58(H)mm
-
Weight:
-
300g
-
Origin:
-
Japan
Quick Details
-
Type:
-
Fiber optic fusion splicer
-
Model Number:
-
TJ01CCT50
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fibertel
-
Use:
-
FTTH
-
Warranty Time:
-
1 Year
-
Product name:
-
Fiber Optic Cleaver
-
Part No.:
-
TJ01CCT50
-
Fiber count:
-
Up to 12
-
Cladding diameter:
-
125 μm
-
Coating diameter:
-
160 to 900μm 2 to 3mm cord and drop cable
-
Cleaving angle*1:
-
Typical 0.5 degrees
-
Blade life:
-
Typical 60,000 fibers
-
Dimensions:
-
120(W) x 95(D) x 58(H)mm
-
Weight:
-
300g
-
Origin:
-
Japan
Product Description
○ Applicable for up to 12-fiber cleaving
○ Automatic cleaving blade rotation via wireless communication
○ User replaceable fiber clamps and cleaving blade
○ Blade life up to 60,000 cleaves
○ Wide lever opening angle allows easy fiber placement
○ Single-action operation including fiber scrap collection
Standard Package
|
Description
|
Model No.
|
Qty.
|
|
Fiber plate
|
AD-10-M24
|
1pc
|
|
Fiber plate
|
AD-50
|
1pc
|
|
Spacer
|
SPA-CT08-10
|
1pc
|
|
Carrying case
|
CC-37
|
1pc
|
|
Hexagonal wrench
|
HEX-01
|
1pc
|
|
Instruction manual
|
M-CT50-E
|
1pc
|
Optional Items
|
Description
|
Model No.
|
|
Blade
|
CB-08
|
|
Arm set
|
ARM-CT50-01
|
|
Arm set
|
FDB-05
|
|
Blade rotary wheel
|
BRW-CT08-01
|
|
Side cover
|
SC-CT50-01
|
Specification
|
Product Name
|
|
Description
|
|
|
Part No.
|
|
TJ01CCT50
|
|
|
Applicable optical fiber
|
|
Silica optical fiber
|
|
|
Fiber count
|
|
Up to 12
|
|
|
Cladding diameter
|
|
125 μm
|
|
|
Coating diameter
|
|
160 to 900μm\uDBC0\uDC012 to 3mm cord and drop cable
|
|
|
Cleaving length
|
AD-10-M24
AD-50
|
5mm to 20mm( coating diameter =250μm)
10mm to 20mm( coating diameter > 250μm)
|
|
|
|
Fiber holder
|
10mm (from the edge of FH:13mm)
|
|
|
Cleaving angle*1
|
|
Typical 0.5 degrees
|
|
|
Blade life
|
|
Typical 60,000 fibers
|
|
|
Wireless connectivity
|
|
Wireless technical standard:Bluetooth®4.1 LE*2 OS : Andoroid 5.0 or above, iOS 8.0 or above (iPhone6 above)
|
|
|
Power supply
|
|
AAA (LR03) dry battery: 2pc
|
|
|
Dimensions
|
|
120(W) x 95(D) x 58(H)mm
|
|
|
Weight
|
|
300g
|
|
|
Operation condition
|
|
0 to 95% RH and 0 to 40°C (non-dew)
|
|
|
Storage condition
|
|
0 to 95% RH and -40 to 80°C (non-dew)
|
|
|
Resistance features*3
|
|
Shock: 76cm (30inch) all directions drop
|
|
|
|
|
Dust resistance: Exposure to dust
(0.1 to 500μm dia. Alumina Silicate)
|
|
|
|
|
Rain resistance: H=10mm/hr for 10min
|
|
