Quick Details
-
Brand Name:
-
SUNRISE
-
Model Number:
-
SU-TJ23-500W
-
Beam Angle(°):
-
90, 120
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
AC85-265V
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30 - 50
-
Product Weight（kg）:
-
9.3
-
Product Name:
-
Outdoor 100w 200w 300w 400w 500w 600w 700w Led Flood Light
-
LED Driver:
-
Constant current driver
-
Material:
-
Aluminum + Tempered Glass
-
Keyword:
-
Qualified Outdoor Flood Light
-
Usage:
-
Indoor/Outdoor LED IP66 Floodlight
-
Feature:
-
Waterproof, Economy
Quick Details
-
Lamp Luminous Flux(lm):
-
48000LM
-
Warranty(Year):
-
3-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRISE
-
Model Number:
-
SU-TJ23-500W
-
Beam Angle(°):
-
90, 120
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
AC85-265V
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30 - 50
-
Product Weight（kg）:
-
9.3
-
Product Name:
-
Outdoor 100w 200w 300w 400w 500w 600w 700w Led Flood Light
-
LED Driver:
-
Constant current driver
-
Material:
-
Aluminum + Tempered Glass
-
Keyword:
-
Qualified Outdoor Flood Light
-
Usage:
-
Indoor/Outdoor LED IP66 Floodlight
-
Feature:
-
Waterproof, Economy

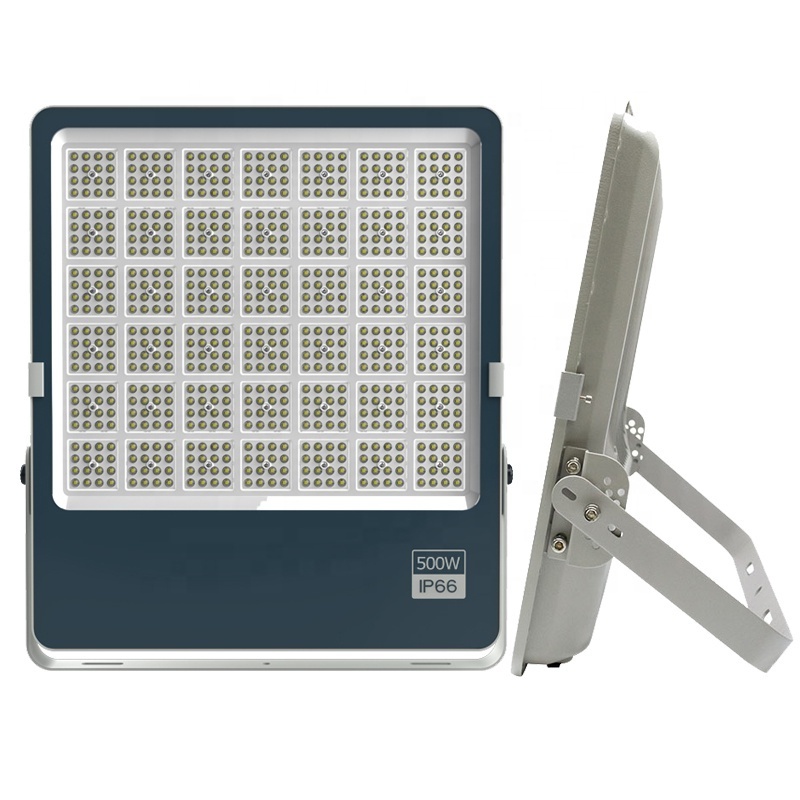

OEM Focus Stadium Court Reflector Lights Outdoor 100w 200w 300w 400w 500w 600w 700w Led Flood Light
Product Description
Product Descriptions
♦
HIGH HARDNESS GLASS
: adopting 4mm high density and high hardness tempered glass, IK08 against shocking and 90% light transmission rate.
♦ OPTIONAL BEAM ANGLES : attaching optical lens for 30 º , 60 º , 90º and 120 º inside, different angle with different lighting effect, applicable for different regions.
♦ SMART FUNCTIONS AVAILABLE : Based perfect performance, the LED flood light can be considered to produce smart functions: 0-10 dimming, light control, motion sensor etc.
♦ HIGH LUMEN LED CHIPS : Super bright and low light dissipation famous brand SMD 2835 480 PCS LEDs as light source to meet high light luminous efficiency 110-120lm/W. Higher light efficiency is available.
♦ CONSTANT CURRENT DRIVER : High accurate constant current waterproof driver with stable performance and circuit protection, able to meet power factor 0.9, perfectly meeting full load power consumption. Moreover, brand drivers are available.
♦ FREE REPLACEMENT, EASY INSTALLATION : Offer warranty 3 years. During this period, any product problem can be replaced freely. The lamp is very easy installation, 2 expansion screws just.
♦ WIDE APPLICATION : The flood lights can be applicable for many applications such as street, road, stadium sport fields, tennis court, gymnasium, football, baseball, volleyball, airports, harbors, squares, docks, plaza, wharf, warehouse, workshop, buidling outline, bridge, sculpture back light etc.
♦ OPTIONAL BEAM ANGLES : attaching optical lens for 30 º , 60 º , 90º and 120 º inside, different angle with different lighting effect, applicable for different regions.
♦
DIECAST ALUMINUM
, BETTER HEAT SINKING
: High density and thick AD12 aluminum, much better heat sinking than common AL or ABS in the markets., Sunrise LED flood light is treated with graphene coating, which has better thermal conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life.
♦ SMART FUNCTIONS AVAILABLE : Based perfect performance, the LED flood light can be considered to produce smart functions: 0-10 dimming, light control, motion sensor etc.
♦ HIGH LUMEN LED CHIPS : Super bright and low light dissipation famous brand SMD 2835 480 PCS LEDs as light source to meet high light luminous efficiency 110-120lm/W. Higher light efficiency is available.
♦ CONSTANT CURRENT DRIVER : High accurate constant current waterproof driver with stable performance and circuit protection, able to meet power factor 0.9, perfectly meeting full load power consumption. Moreover, brand drivers are available.
♦ FREE REPLACEMENT, EASY INSTALLATION : Offer warranty 3 years. During this period, any product problem can be replaced freely. The lamp is very easy installation, 2 expansion screws just.
♦ WIDE APPLICATION : The flood lights can be applicable for many applications such as street, road, stadium sport fields, tennis court, gymnasium, football, baseball, volleyball, airports, harbors, squares, docks, plaza, wharf, warehouse, workshop, buidling outline, bridge, sculpture back light etc.
|
Model
|
SU-TJ23 series
|
|
|
||
|
Rated power
|
500 Watts
|
|
|
||
|
Indescent Equivalent
|
2500 Watts
|
|
|
||
|
Lumen flux:
|
55000-60000LM
|
|
|
||
|
Work voltage
|
AC 85-265V 50/60Hz (12V-48V DC available)
|
|
|
||
|
Light Efficiency
|
110-120lm/W
|
|
|
||
|
Light source
|
Super bright brand SMD 2835 LEDs
|
|
|
||
|
Driver
|
Constant current brand driver
|
|
|
||
|
Color temperature
|
2700K, 3000K; 4000K; 5500K, 6500K, 7000k+
|
|
|
||
|
Beam Angle
|
30°, 60°, 90°, 120°
|
|
|
||
|
Light Body Material
|
ADC#12 Aluminium + tempered glass
|
|
|
||
|
Finished Body Color
|
Grey, Black
|
|
|
||
|
SDCM
|
<5
|
|
|
||
|
THD
|
<20%
|
|
|
||
|
Work temperature
|
-30 ~ +50°C
|
|
|
||
|
Storage Temperature
|
-40 ~+60°C
|
|
|
||
|
CRI
|
>70Ra
|
|
|
||
|
PF
|
>0.9
|
|
|
||
|
Surge Protection
|
6KV
|
|
|
||
|
Class of Protection
|
IK07 / IP66
|
|
|
||
|
Application
|
Stadium, gymnasium, large-scale center,
|
|
|
||
|
Warranty
|
3 Years
|
|
|
||
|
Certificate
|
CE ROHS EMC
|
|
|
||
|
Gross Weight
|
9.3 KG
|
|
|
||
|
Package
|
2pc/ctn
|
|
|
||
More available wattages for same series:
|
Model
|
Rated Power
|
Lumen Flux
|
Light Source
|
Dimension
|
Package
|
|
SU-TJ23
|
50 Watts
|
5500-6000lm
|
SMD LED
|
L210*W190*H41
|
20pcs/ctn
|
|
|
100 Watts
|
11000-12000lm
|
|
L210*W190*H41
|
20pcs/ctn
|
|
|
200 Watts
|
22000-24000lm
|
|
L360*W426*H52
|
5pcs/ctn
|
|
|
300 Watts
|
33000-36000lm
|
|
L390*W426*H52
|
3pc/ctn
|
|
|
400 Watts
|
44000-48000lm
|
|
L445*W445*H55
|
3pc/ctn
|
|
|
500 Watts
|
55000-60000lm
|
|
L560*W485*H60
|
2pc/ctn
|
Detailed Images
- SUPER BRIGHT LED CHIP
Adopting high lumen & low light dissipation famous brand SMD 2835 LED chip, light efficiency up to 110-120lm/W, no color deviation, cct customization available.
- 270
º ROTATABLE BRACKET
Flexible and strong aluminum support is good with rotating 270 degree, larger than those 180
°
in the markets, widely enlarge its applications and lighting effects.
- PATENT WATERPROOF INTERFACE
High waterproof interface with patent, stainless steel screw and silicone ring double waterproof protection, no worry about the water in.
- BREATHABLE VENT VALVE
Venting valve can perfectly push the heat sinking, and moreover, it can balance the air pressure difference of
the lamp body inside and outside. Better to prolong lamp's working life..
- RUBBER WIRE
Outdoor flood lights are using 3x0.75mm
2
rubber wire H05RN-F 300/500V 50CM as standard. Cable length and spec can be customized.
- FIN ALUMINUM RADIATOR
Outdoor flood light is fin radiator with high density aluminum for quicker heat sinking. The fin design is beautiful and modern,too.
Packing & Delivery
Our Company
FAQ
1. Can I have 1 piece to test?
Re: Yes, sample is available at the first time, and mixed samples are welcome.
2. Will you have better discount for the big quantity?
Re: Yeah, it's sure. We must send you the lowest price in the market.
3. What's your main markets?
Re: The main markets is Asia, European, Southeast Asia and some American regions, Australia.
4. How long can I get my package?
Re: It will tell you the delivery time when you are placing the order.
5. Which kind of driver do you use?
Re: With 3 years warranty, we use Chinese good quality driver. But famous brand drivers are possible if needed.
6. Can I have my logo on the product?
Re: Yes, logo on the product is available. We are taking laser marking for it.
7. Why choose us?
Re: Flexible quality option, high quality, fast delivery, quick and efficiency service, OEM & ODM service.
Re: Yes, sample is available at the first time, and mixed samples are welcome.
2. Will you have better discount for the big quantity?
Re: Yeah, it's sure. We must send you the lowest price in the market.
3. What's your main markets?
Re: The main markets is Asia, European, Southeast Asia and some American regions, Australia.
4. How long can I get my package?
Re: It will tell you the delivery time when you are placing the order.
5. Which kind of driver do you use?
Re: With 3 years warranty, we use Chinese good quality driver. But famous brand drivers are possible if needed.
6. Can I have my logo on the product?
Re: Yes, logo on the product is available. We are taking laser marking for it.
7. Why choose us?
Re: Flexible quality option, high quality, fast delivery, quick and efficiency service, OEM & ODM service.
8.
Can you design the packing for the client?
Re: Yes, we can. We have professional designers to design the images and package as you are hoping. Please tell us your requests.
Re: Yes, we can. We have professional designers to design the images and package as you are hoping. Please tell us your requests.
