Wholesale Gz-Link High Speed Qsfp+ Aoc 3m (33ft) 40G Active Optical Cable For Internet Data

Wholesale Gz-Link High Speed Qsfp+ Aoc 3m (33ft) 40G Active Optical Cable For Internet Data

FOB Reference Price: Get Latest Price

≥2 Pieces

US $88

≥500 Pieces

US $85

≥1000 Pieces

US $80

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: GZ-LINK

Use:: Data Center

Warranty Time:: 3Year

Data Rate:: 40Gbps

Connector Type:: QSFP+ to QSFP+

Distance:: 300m on OM3 MMF

Optical Connector:: MTP/MPO MMF Without PIN

Cable Length:: 3m (33ft)or Customized

Minimum Bend Radius:: 7.5mm

Diagnostics:: Digital Monitor

Transmitter:: 4CH VCSEL Array Laser

Receiver:: 4CH PIN photo detector Array

TX Output Power:: -7.5~+2.5Bm

Quick Details

Type:: Fiber Optic Transceivers

Model Number:: GQS-40GAOC-003

Place of Origin:: Guangdong, China

Brand Name:: GZ-LINK

Use:: Data Center

Warranty Time:: 3Year

Data Rate:: 40Gbps

Connector Type:: QSFP+ to QSFP+

Distance:: 300m on OM3 MMF

Optical Connector:: MTP/MPO MMF Without PIN

Cable Length:: 3m (33ft)or Customized

Minimum Bend Radius:: 7.5mm

Diagnostics:: Digital Monitor

Transmitter:: 4CH VCSEL Array Laser

Receiver:: 4CH PIN photo detector Array

TX Output Power:: -7.5~+2.5Bm

Product Description

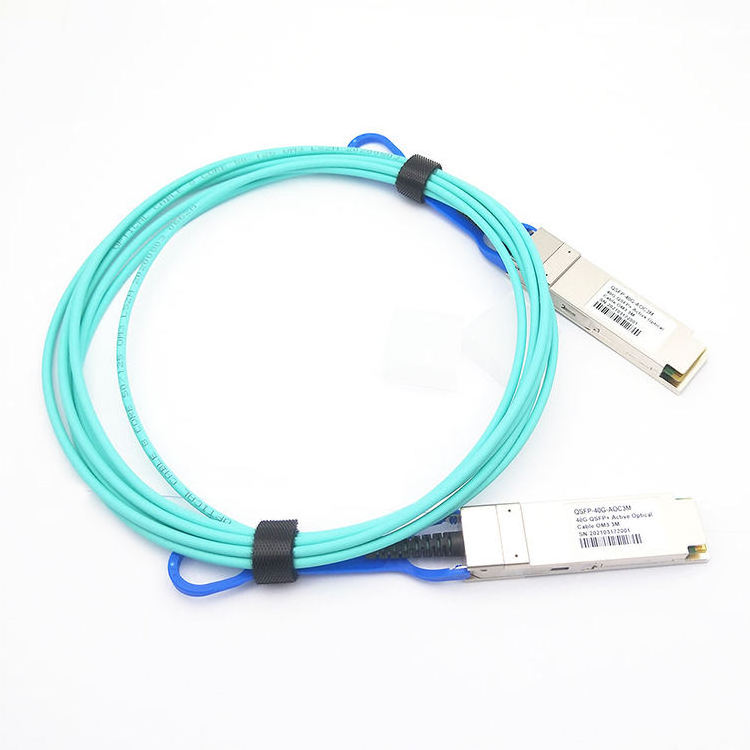

40G QSFP+ Active Optical Cable

Overview

QSFP active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. Sourcelight QSFP active optic cables is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Features

* Full duplex 4CH 850nm parallel active optical cable
* Transmission data rate up to 10.3Gbit/s per channel
* SFF-8436 QSFP+ compliant
* Hot pluggable electrical interface
* Differential AC-coupled high speed data interface
* 4 channels 850nm VCSEL array
* 4 channels PIN photo detector array
* Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
* Low power consumption <1.5W
* Operating case temperature 0°C to +70°C
* 3.3V power supply voltage
* RoHS 6 compliant

Package (Form Factor)	QSFP+ Active Optical Cable
Data Rate (typical)	10.3 Gbps/CH
Distance	300m on OM3 MMF
Transmitter	4CH VCSEL Array Laser
Receiver	4CH PIN photo detector Array
TX Output Power (dBm)	-7.5~+2.5
RX Sensitivity (dBm)	-5.4
Low/High Case Temperature	0°C~70°C
Voltage Supply (typical)	3.3v
Connector	QSFP+

Application * Infiniband transmission at 4ch SDR, DDR and QDR
* 40GBASE-SR4 40G Ethernet
* Data Centers

Application

Factory direct, FULL COMPATIBLE WITH FOLLOWING NETWORK DEVICES

Packaging & Shipping

Packing Details:
10pcs/ anti-static box.

Shipping Methods:
1. Samples and Small quantity order FedEx/DHL/UPS/TNT ,Door to Door.
2. Batch goods :By Air, by Sea or by Rail.
3. FCL: Airport/Seaport/Railway Station receiving.
4. Lead Time: 1-5 working days for samples; 5-10 working days for mass.

Precautions:
1. Storage in anti-static box.
2. When used, please ensure that the voltage is normal and stable.
