These pictures are the details of the machine, which can better help you understand the machine.
- Product Details
- {{item.text}}
Quick Details
-
Range of Spindle Speed(r.p.m):
-
65 - 4500 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
timeway
-
Model Number:
-
M250C
-
Spindle Motor Power(kW):
-
3.7
-
Dimension(L*W*H):
-
1516*1550*2080mm
-
Weight (KG):
-
1490
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Metal Milling Machine
-
Machine Type:
-
Milling Machine Vertical Universal
-
Model:
-
M250C
-
CNC or Not:
-
Normal Milling Machine
-
Color:
-
Cusomer Request
-
Table size:
-
254*1270mm
-
Spindle Speed:
-
65-4500/80-5440 Rpm
-
Main motor power:
-
3.7KW
-
After-sales Service Provided:
-
1 Year
-
Cross travel:
-
410mm
Quick Details
-
Table Travel (X) (mm):
-
820
-
Table Travel (Y) (mm):
-
410
-
Table Travel (Z) (mm):
-
400
-
Range of Spindle Speed(r.p.m):
-
65 - 4500 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
timeway
-
Model Number:
-
M250C
-
Spindle Motor Power(kW):
-
3.7
-
Dimension(L*W*H):
-
1516*1550*2080mm
-
Weight (KG):
-
1490
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Metal Milling Machine
-
Machine Type:
-
Milling Machine Vertical Universal
-
Model:
-
M250C
-
CNC or Not:
-
Normal Milling Machine
-
Color:
-
Cusomer Request
-
Table size:
-
254*1270mm
-
Spindle Speed:
-
65-4500/80-5440 Rpm
-
Main motor power:
-
3.7KW
-
After-sales Service Provided:
-
1 Year
-
Cross travel:
-
410mm
Products Description

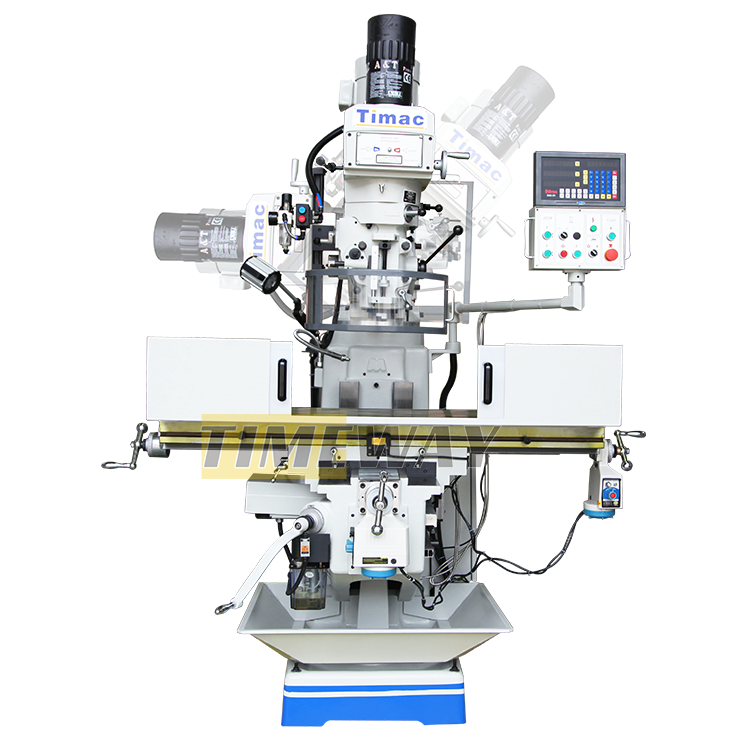

Universal Milling Machine
Accessories
|
· 3-axis DRO
·
Step pulley mill head
· Draw bar
· Working light
· Hand oil Pump
· Cooling system
· Oil collecting plate
· Plastic splash guard
· Tool & tool box
· Operator manual
|
Specification
|
Specifications
|
Unit
|
M250C
|
M300
|
M330
|
||
|
Table size
|
mm
|
254x1270/254x1370
|
305x1370/305x1500
|
330x1370/330x1500
|
||
|
Longitudinal travel (X)
|
mm
|
820/920
|
870/1000
|
820/1000
|
||
|
Cross travel (Y)
|
mm
|
410
|
360
|
380
|
||
|
Vertical travel (Z)
|
mm
|
400
|
380
|
460
|
||
|
T-slot (No./width)
|
mm
|
3/16
|
3/16
|
3/16
|
||
|
Ram travel
|
mm
|
470
|
500
|
500
|
||
|
Distance from spindle to table
|
mm
|
0-400
|
0-350
|
0-450
|
||
|
Spindle taper
|
-
|
ISO40
|
ISO40
|
ISO40
|
||
|
Spindle quill travel
|
mm
|
127
|
127
|
127
|
||
|
Spindle speed
|
rpm
|
16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 65-3750)
|
|
|
||
|
Spindle quill automatic feed
|
mm/r
|
0.038/0.076/0.152
|
|
|
||
|
Main motor power
|
kw
|
3.7
|
|
|
||
|
Mill head swivel angle
|
°
|
±90°
|
|
|
||
|
Mill head tilting angle
|
°
|
±45° (Fix)
|
|
|
||
|
Dimension of package(one)
|
mm
|
1516x1550x2080
|
1566x1650x2080
|
1800x2020x2200
|
||
|
Dimension of package(two)
|
mm
|
1650x1790x2170
|
1720x1800x2175
|
1800x2200x2180
|
||
|
Gross weight (One)
|
kg
|
1490
|
1650
|
2200
|
||
Detailed Images
Client feedback
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
