Quick Details
-
Voltage:
-
380v/3phase/50hz
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Winner
-
Model Number:
-
Furniture Paint Booth
-
Warranty:
-
12 months
-
Product name:
-
furniture paint booth
-
Usage:
-
Spray Booth for Furniture
-
Wall Panel:
-
EPS or Rock Wool
-
Intake Fan Capacity:
-
16000m3/h
-
Exhaust Fan Capacity:
-
5000m3/h
-
Heating System:
-
Infrared heating
-
Filter System:
-
Ceiling and Flooring Filters
-
Color:
-
Red, blue, yellow, grey, white, etc
-
Ventilation Rate:
-
245/h
-
Certification:
-
ce
Quick Details
-
Power:
-
27KW
-
External Size:
-
12000*5000*3000
-
Internal Size:
-
11850*4900*2600
-
Voltage:
-
380v/3phase/50hz
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Winner
-
Model Number:
-
Furniture Paint Booth
-
Warranty:
-
12 months
-
Product name:
-
furniture paint booth
-
Usage:
-
Spray Booth for Furniture
-
Wall Panel:
-
EPS or Rock Wool
-
Intake Fan Capacity:
-
16000m3/h
-
Exhaust Fan Capacity:
-
5000m3/h
-
Heating System:
-
Infrared heating
-
Filter System:
-
Ceiling and Flooring Filters
-
Color:
-
Red, blue, yellow, grey, white, etc
-
Ventilation Rate:
-
245/h
-
Certification:
-
ce

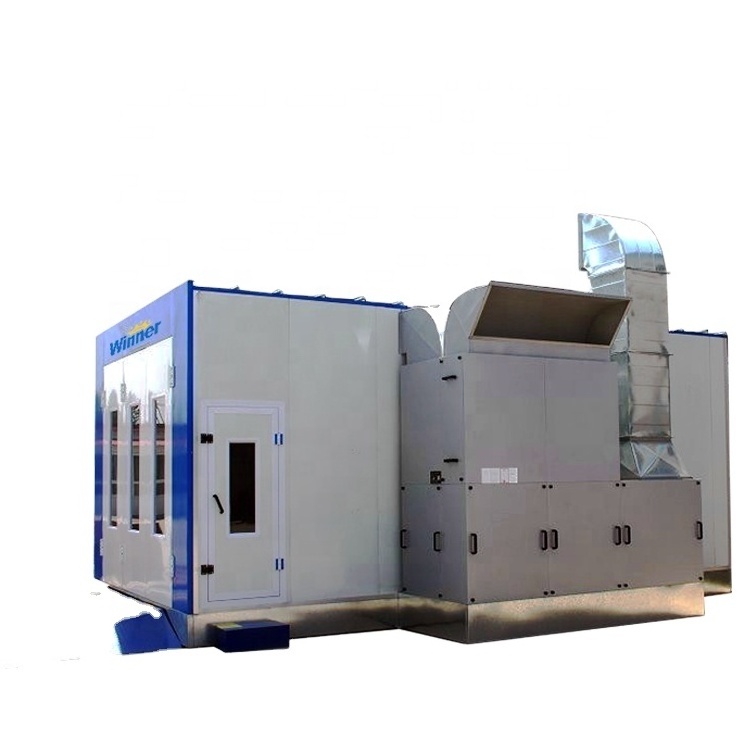

WINNER Furniture Spray-Baking Booth with Water Curtain
|
12000*5000*3000(L*W*H) |
Inside Size (mm) |
11850*4900*2600(L*W*H) |
|
|
Painting Room Outside Size (mm) |
4000*5000*3000(L*W*H) |
Painting Room Inner Size (mm) |
3900*4900*2600(L*W*H) |
|
Drying Room Outside Size (mm) |
8000*5000*3000(L*W*H) |
Drying Room Inner Size (mm) |
7950*4900*2600(L*W*H) |
|
Incoming Door Size (mm) |
1900*2000(W*H) |
Delivery Door Size (mm) |
1900*2000(W*H) |
|
Ventilation Rate:(Times/Hour) |
245 |
Total Power (KW) |
27 |
|
Generator Setting Type |
Upper intake air |
Purification System |
600G high efficiency ceiling filters |
|
Wall Panel: |
EPS colorful steel skin panel, 50mm thick; tongue & groove style, anti-flame and heat-insulation. |
||
|
Basement: |
Galvanized steel sheet and square steel pipe assembling, 5 rows of grid plates made by flat bar and round steel. |
||
|
Intake Fans: |
Two sets of 3KW centrifugal fans for intaking air, air capacity 16000m3/h |
||
|
Exhaust Fans: |
One set of 2.2kw axial fan for exhausting air, air capacity 5000m3/h |
||
|
Water Curtains |
Dimension:3000×400×1500mm(L×W×H), stainless steel. |
||
|
Water Pump |
Lailibao Brand, Capacity:7m³/hour, Lift:18m, Rotate speed: 2860 r/min. Power:750W, 380V/50HZ |
||
|
Infrared Heating System |
18 pieces ×1 KW carbon fiber far-infrared heater, anti-explosion |
||
|
Lighting System |
Painting room :6 Units×3 Pcs=18 Pcs × 36W LED lamp; Baking room: 4 Pcs × 36 W LED lamp. |
||
|
Controlling system |
Lighting switch, spraying / baking switch, time setting, emergency stop, temperature controller, power supply, etc. |
||
