Quick Details
-
Brand Name:
-
LTMG
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
4400*3100*2420
-
Weight (KG):
-
5000 kg
-
Type:
-
electric forklift
-
Product Name:
-

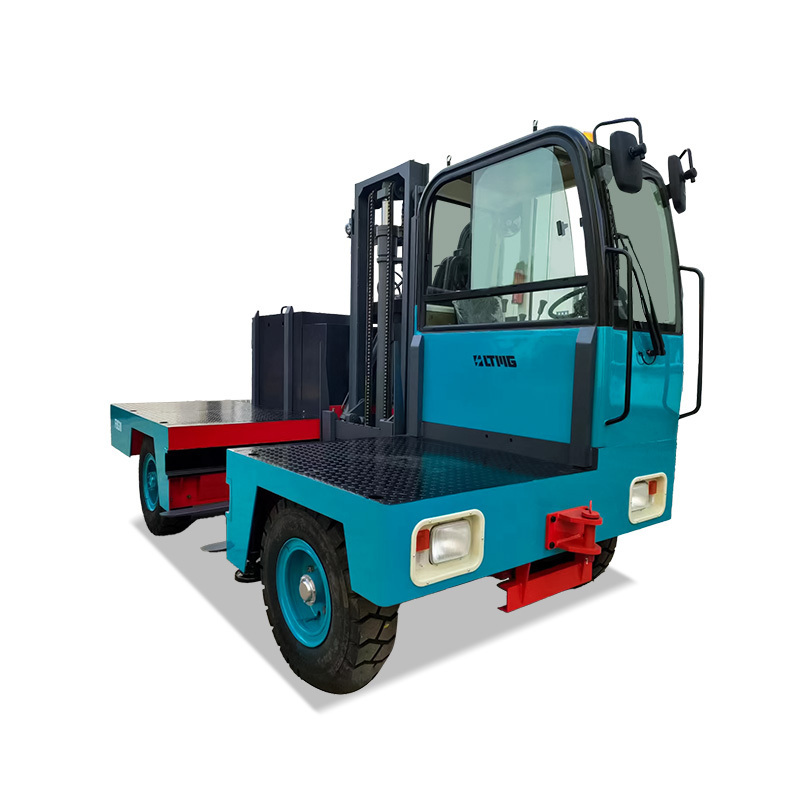

LTMG 3 ton 3000kg Electric Side Loader Electric Forklift Truck
-
Service Weight:
-
7235kg
-
Rated Capacity:
-
3000kg
-
Load Centre:
-
500mm
-
Controller:
-
Curtis
-
Ground Clearance(Bottom of mast):
-
140mm
-
Turning Radius:
-
4400mm
-
Wheelbase:
-
2680mm
-
Tire type:
-
Pnenumatic
Quick Details
-
Min. Lifting Height:
-
140mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
LTMG
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
4400*3100*2420
-
Weight (KG):
-
5000 kg
-
Type:
-
electric forklift
-
Product Name:
-
LTMG 3 ton 3000kg Electric Side Loader Electric Forklift Truck
-
Service Weight:
-
7235kg
-
Rated Capacity:
-
3000kg
-
Load Centre:
-
500mm
-
Controller:
-
Curtis
-
Ground Clearance(Bottom of mast):
-
140mm
-
Turning Radius:
-
4400mm
-
Wheelbase:
-
2680mm
-
Tire type:
-
Pnenumatic
Product Description
Products Specifications
|
General
|
1
|
Model
|
|
|
FBS30
|
|
|
|
2
|
Power type
|
|
|
Electric
|
|
|
|
3
|
Rated Capacity
|
|
kg
|
3000
|
|
|
|
4
|
Load Centre
|
|
mm
|
500
|
|
|
Characteristic&Dimensions
|
5
|
Lift Height
|
|
mm
|
3600
|
|
|
|
6
|
Fork Size
|
L×W×T
|
mm
|
1070×125×45
|
|
|
|
7
|
Mast Tilt Angle
|
F/R（α°/β°）
|
Deg
|
4°/6°
|
|
|
|
8
|
Front Overhang(Wheel center to fork face)
|
|
mm
|
90
|
|
|
|
9
|
Tread
|
(F/R)
|
mm
|
1660/1660
|
|
|
|
10
|
Ground Clearance(Bottom of mast)
|
|
mm
|
140
|
|
|
|
11
|
Fork Spread
|
|
mm
|
1000
|
|
|
|
12
|
Overall Dimension
|
Overall Length
|
mm
|
4400
|
|
|
|
13
|
|
Overall Width
|
mm
|
3100
|
|
|
|
14
|
|
Mast Lowered Height
|
mm
|
2420
|
|
|
|
15
|
|
Mast Extended Height(With backrest)
|
mm
|
4255
|
|
|
|
16
|
|
Overhead Guard Height
|
mm
|
2520
|
|
|
|
17
|
|
Platform Height
|
mm
|
925
|
|
|
|
18
|
Turning Radius(outside)
|
|
mm
|
4400
|
|
|
Performance
|
19
|
Speed
|
Travel (Empty load)
|
km/h
|
13
|
|
|
|
20
|
|
Lifting (Full load)
|
mm/s
|
200
|
|
|
|
21
|
Max. Gradeability
|
|
%
|
10
|
|
|
Chassis
|
22
|
Tire
|
Front
|
|
28×9-15-12PR
|
|
|
|
23
|
|
Rear
|
|
28×9-15-12PR
|
|
|
|
24
|
Wheelbase
|
|
mm
|
2680
|
|
|
|
25
|
Service Weight
|
|
kg
|
7235
|
|
|
Power & Transimission
|
26
|
Motor
|
Driven Motor
|
kw
|
15
|
|
|
|
27
|
|
Lift Motor
|
kw
|
12
|
|
|
|
28
|
Battery
|
Voltage/Capacity
|
V/Ah
|
80/500
|
|
|
|
29
|
Controller
|
Manufacturer
|
|
CURTIS
|
|
|
|
30
|
|
Type
|
|
AC
|
|
|
|
31
|
Operating Pressure for Attachment
|
|
Mpa
|
17.5
|
|
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only side loader forklift with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled
before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always
have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
