Peak Power Watts: 360W (SP360M-72)
Maximum Power Voltage: 39V
Maximum Power Current: 9.23A
Open Circuit Voltage: 47.6V
Short Circuit Current: 9.74A
Dimensions:1960×992×40 mm (77.17×39.06×1.57 inches)
Weight:22.5 kg (49.6 lb)
- Product Details
- {{item.text}}
Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE TUV
-
Warranty:
-
25 Years
-
Place of Origin:
-
China
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP30KW-OFF
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-
Specification:
-
Normal
-
Product Name:
-
Off Grid Solar Power System
-
Inverter:
-
Off Grid Single Phase (3 Phase Optional)
-
Wave Form:
-
Pure Sine Wave
-
Controller:
-
MPPT/PWM
-
Battery:
-
12V200AH GEL
-
Battery Voltage:
-
220VDC
-
Mounting System:
-
Pitched Roof (STD)
-
Communication:
-
RS485
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE TUV
-
Warranty:
-
25 Years
-
Place of Origin:
-
China
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP30KW-OFF
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-
Specification:
-
Normal
-
Product Name:
-
Off Grid Solar Power System
-
Inverter:
-
Off Grid Single Phase (3 Phase Optional)
-
Wave Form:
-
Pure Sine Wave
-
Controller:
-
MPPT/PWM
-
Battery:
-
12V200AH GEL
-
Battery Voltage:
-
220VDC
-
Mounting System:
-
Pitched Roof (STD)
-
Communication:
-
RS485
You May Like
Product Description
What's Included:
|
Components
|
SP10KW-OFF
|
SP15KW-OFF
|
SP20KW-OFF
|
SP25KW-OFF
|
SP30KW-OFF
|
||||
|
360W Mono Solar Panel
|
30 Piece
|
48 Piece
|
60 Piece
|
72 Piece
|
90 Piece
|
||||
|
MPPT Controller
|
DC220V 50A
|
DC220V 100A
|
DC220V 100A
|
DC220V 150A
|
DC220V 150A
|
||||
|
Combiner Box
|
3 in 1 out
|
2*3 in 1 out
|
2*3 in 1 out
|
3*3 in 1 out
|
3*3 in 1 out
|
||||
|
Off Grid Inverter
|
10KVA
|
15KVA
|
20KVA
|
25KVA
|
30KVA
|
||||
|
12V 200AH Battery
|
18 Piece
|
18 Piece
|
36 Piece
|
36 Piece
|
36 Piece
|
||||
|
DC Cable 4mm
2
|
300 Meters
|
400 Meters
|
600 Meters
|
600 Meters
|
600 Meters
|
||||
|
DC Cable 6mm
2
|
100 Meters
|
100 Meters
|
100 Meters
|
100 Meters
|
100 Meters
|
||||
|
MC4 Connector
|
24 Pair
|
32 Pair
|
48 Pair
|
72 Pair
|
72 Pair
|
||||
|
Mounting System
|
Standards Pitched Roof ( Customized Optional)
|
|
|
|
|
||||
|
Battery Cable & Rack
|
Customized
|
|
|
|
|
||||
|
PV Tools
|
1 Set
|
|
|
|
|
||||
Note: Product dimensions and physical appearance in this data sheet are nominal.Sunpal Power reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

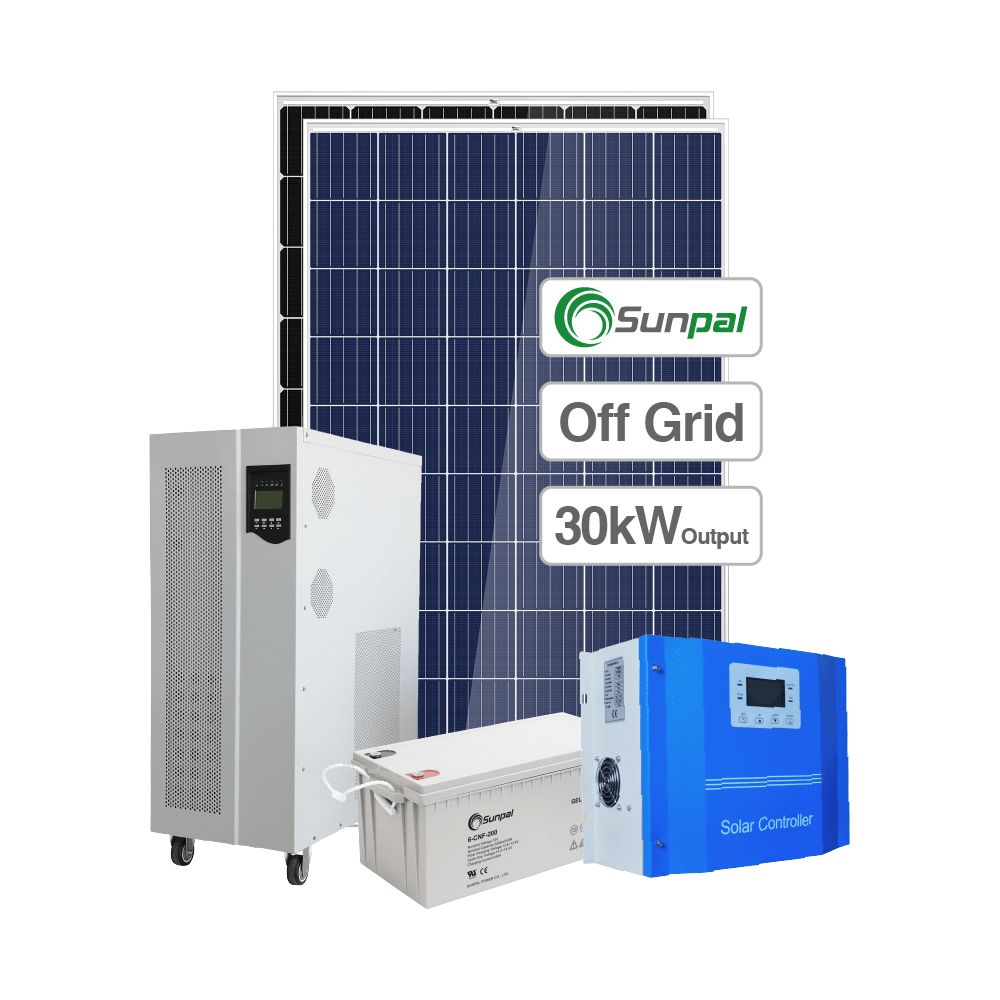

Off Grid System Configuration
Mono Solar Panels ( Poly Optional)
MPPT Controller (PWM Optional)
Rated Voltage (VDC): 220
Maximum Charging Current (A): 50/100/150
MPPT Voltage Range (VDC): 280-450
Communication: RS485(optional)
Display: LCD+LED
Lead Acid GEL Battery
Capacity(kWh): 2.4
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%
Nominal Capacity(AH): 200
Depth of Discharge: 70%
Off Grid Inverter ( Three Phase Optional)
Rated Voltage (VDC): 220
Output Power(KVA): 10/15/20/25/30
AC Output: 220VAC±1%;110VAC±1%
Output Frequency: 50/60±1%
Communication: RS485/GPRS(Optional)
Display: LCD+LED
Mains Bypass: Optional
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Main Disconnect Box
DC Disconnect
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
DC Cable & MC4 Connector
Cross Section: 4mm 2 , 6mm 2 Optional
Rated Voltage:600VDC/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Applications
SP8KW-OFF Install in Colombia Use Poly Solar Panels And 12V 200AH GEL Battery.
SP30KW-OFF Install in Philippine Use Poly Solar Panels And Lead Acid GEL Battery.
SP50KW-OFF Install in Iraq Use 280W Solar Panels And GEL 2V Battery.
Packing & Delivery
Note: The Above packing information contained in this web is subject to change without notice.
