Quick Details
-

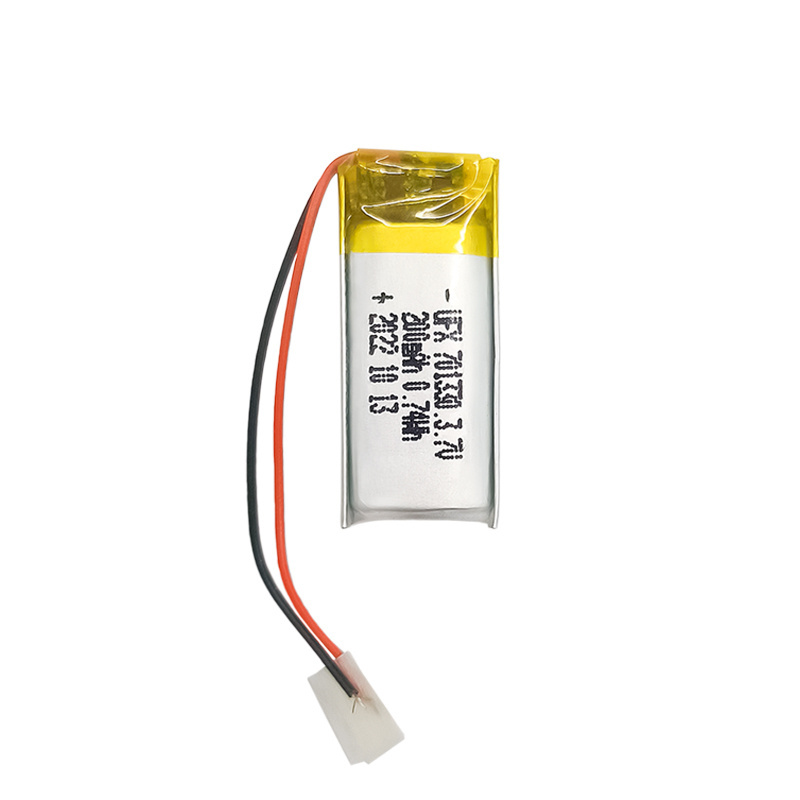

Model Number:
-
UFX701330
-
Battery Size:
-
7*13*32mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
5g
-
The charging ratio:
-
Typically 0.5C to 1C
-
The discharge rate:
-
Typically 0.5C to 1C
-
Capacity:
-
200mAh
-
Nominal Voltage:
-
3.7V
-
Charging voltage:
-
4.2V
-
Dimension:
-
7*13*32mm
-
Charging Current:
-
Typically 0.5C to 1C
-
Discharge Current:
-
Typically 0.5C to 1C
-
Discharging Temperature:
-
-20°C to 60°C
-
Storage Temperature:
-
0°C to 45°C
-
Cycle Life:
-
Typically 300 to 500 cycles
-
Certification:
-
KC/CB/ROHS/CE/UL1642(tuv)
-
Warranty:
-
12 months
Quick Details
-
Anode Material:
-
NCM
-
Application:
-
Toys, Consumer Electronics
-
Brand Name:
-
Ufine
-
Model Number:
-
UFX701330
-
Battery Size:
-
7*13*32mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
5g
-
The charging ratio:
-
Typically 0.5C to 1C
-
The discharge rate:
-
Typically 0.5C to 1C
-
Capacity:
-
200mAh
-
Nominal Voltage:
-
3.7V
-
Charging voltage:
-
4.2V
-
Dimension:
-
7*13*32mm
-
Charging Current:
-
Typically 0.5C to 1C
-
Discharge Current:
-
Typically 0.5C to 1C
-
Discharging Temperature:
-
-20°C to 60°C
-
Storage Temperature:
-
0°C to 45°C
-
Cycle Life:
-
Typically 300 to 500 cycles
-
Certification:
-
KC/CB/ROHS/CE/UL1642(tuv)
-
Warranty:
-
12 months
Specification
|
1、Mechanical Characteristics
|
|
|
|
|||
|
Cell:
|
UFX701330
|
PCM:
|
Yes
|
|||
|
NTC:
|
No
|
Weight:
|
appr. 5g
|
|||
|
Configuration:
|
1S1P
|
|
|
|||
|
2、Electrical Specification
|
|
|
|
|||
|
Capacity:
|
200mAh
|
Nominal Voltage:
|
3.7V
|
|||
|
Energy:
|
0.74Wh
|
Internal Impedance：
|
less than 240mΩ
|
|||
|
Max. Charge Voltage:
|
4.2V
|
Discharge Cut Off:
|
2.75V
|
|||
|
Max. Charge Current:
|
200mA
|
Max. Discharge Current:
|
200mA
|
|||
|
Standard Charge Current:
|
100mA
|
Standard Discharge Current:
|
100mA
|
|||
|
Charge Temp. Range:
|
10°C to 45°C
|
Discharge Temp. Range
|
-20°C to 60°C
|
|||
|
Storage Temp. Range
|
1 year at -20℃ to +30℃
|
Cycle life:
|
100 cycles ≥92%
|
|||
|
|
3 moths at -20℃ to +45℃
|
|
300 cycles ≥88%
|
|||
|
|
1 month at -20℃ to +60℃
|
|
500 cycles ≥80%
|
|||
|
3、Cell protection
|
|
|
|
|||
|
Overcharge Detection ：
|
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
|
Overdischarge Detection：
|
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
|
|||
|
Overcurrent Detection：
|
2.5A to 4.0A (9 to 15msec. delay)
|
Short protection：
|
Yes
|
|||
Products Description
At Ufine New Energy, we pride ourselves on our commitment to excellence in every aspect of our operations. From our
state-of-the-art manufacturing facilities to our rigorous quality control standards, we ensure that every product we produce meets the highest standards of performance and reliability. Our team of experienced engineers and technicians are always working to develop new and innovative lithium battery solutions to meet the evolving needs of our customers. Our comprehensive line of lithium pack and Li-ion battery products are designed with a focus on safety, reliability and efficiency, making them the ideal choice for a wide variety of applications.
state-of-the-art manufacturing facilities to our rigorous quality control standards, we ensure that every product we produce meets the highest standards of performance and reliability. Our team of experienced engineers and technicians are always working to develop new and innovative lithium battery solutions to meet the evolving needs of our customers. Our comprehensive line of lithium pack and Li-ion battery products are designed with a focus on safety, reliability and efficiency, making them the ideal choice for a wide variety of applications.
