Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Shengquan
-
Voltage:
-
220
-
Dimension(L*W*H):
-
Customized
-
thickness:
-
4-8mm
-
ply:
-
4
-
weight:
-
3200-4800g/m2
-
Usage:
-
transfer cement
-
Max Width:
-
2600mm
-
Standard or Nonstandard:
-
Standard
-
Supply Type:
-
Make-to-Order
-
Technics:
-
Woven
-
Certification:
-
SGS
Quick Details
-
Power:
-
1000
-
Warranty:
-
1 Year
-
Width or Diameter:
-
customized
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Shengquan
-
Voltage:
-
220
-
Dimension(L*W*H):
-
Customized
-
thickness:
-
4-8mm
-
ply:
-
4
-
weight:
-
3200-4800g/m2
-
Usage:
-
transfer cement
-
Max Width:
-
2600mm
-
Standard or Nonstandard:
-
Standard
-
Supply Type:
-
Make-to-Order
-
Technics:
-
Woven
-
Certification:
-
SGS

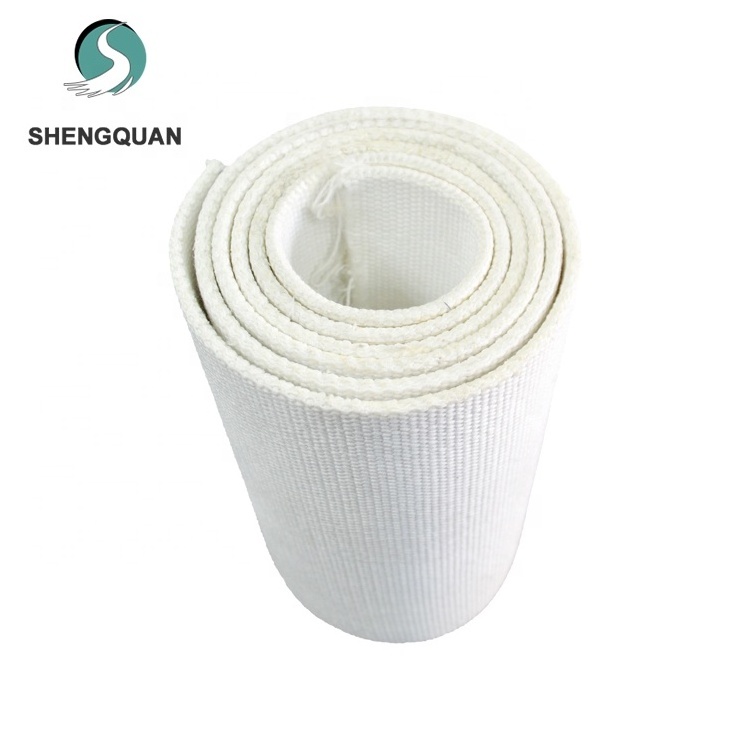

(1) They are used on pneumatic conveyors, silos of every type, vehicle trucks and ail-wagons and also in ships.
(2) Air slide Fabrics are an indispensable part of cement plan, chemical industry, metallurgicalindustry, bulk cement tank trucks, bulk cement ship and fixed cement tanks.
(3) Powder moves on the fluidization conveyor over air slide fabrics.
The fluidization conveyor not have power parts.
(4) Flow is achieved by an air flow through the airslide fabrics that removes friction between powder and the air-permeating textile materials .
| TYPE | MATERIAL | PLY | TENSILE STRENGTH | HEAT RESISTANCE ℃ | THICKNESS | WEIGHT/m2 | MAX WIDTH | AIR RESISTANCE IN | ||
| WARP >N/mm | WEFT >N/mm | 2m3/m2/minH2O mm | ||||||||
| AP4-4 | 100%Polyester | 4 | 360 | 270 | 150 | 4 | 3200g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
| AP4-5 | 100%Polyester | 4 | 360 | 270 | 150 | 5 | 3600g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
| AP4-6 | 100%Polyester | 4 | 360 | 270 | 150 | 6 | 4000g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
| AP4-7 | 100%Polyester | 4 | 360 | 270 | 150 | 7 | 4400g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
| AP4-8 | 100%Polyester | 4 | 360 | 270 | 150 | 8 | 4800g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
| AC4-5 | 100%Cotton | 4 | 150 | 100 | 150 | 5 | 3800g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
