Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHONGTUO
-
Voltage:
-
As request
-
Dimension(L*W*H):
-
8700*1600*1500
-
Weight:
-
25000 kg
-
Advantage 1:
-
more experience
-
Advantage 2:
-
higher speed
-
Advantage 3:
-
more strong
-
Advantage 4:
-
higher quality
-
Advantage 5:
-
5 star service
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Glaze Steel
-
Production Capacity:
-
50 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHONGTUO
-
Voltage:
-
As request
-
Dimension(L*W*H):
-
8700*1600*1500
-
Weight:
-
25000 kg
-
Advantage 1:
-
more experience
-
Advantage 2:
-
higher speed
-
Advantage 3:
-
more strong
-
Advantage 4:
-
higher quality
-
Advantage 5:
-
5 star service
Product Description

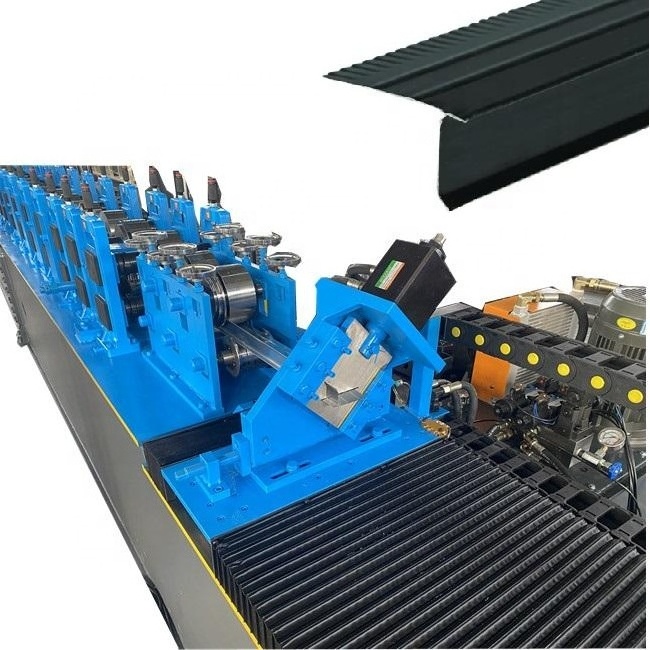

High quality Ibr Roof Sheeting Roll Forming Machine
Our IBR roof sheeting Roll Forming Machine for different models based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
|
Trapezoid IBR roof sheeting roll forming machine
|
|
|
|
|
||||
|
1.Formed Material
|
PPGI,GI,AI
|
|
Thickness（0.14-0.8mm） Width（customized）
|
|
||||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
|
Ordinary decoiler(will give you as free）
|
|
||||
|
3.Main body
|
Roller station
|
|
10-20 rows(As your requirement)
|
|
||||
|
|
Diameter of shaft
|
|
70mm solid shaft
|
|
||||
|
|
Material of rollers
|
|
45# steel, hard chrome plated on the surface
|
|
||||
|
|
Machine body frame
|
|
350 H steel
|
|
||||
|
|
Drive chain
|
|
1.2inch(As your requirement)
|
|
||||
|
|
Dimension(L*W*H)
|
|
8500*1400*1300（customize）
|
|
||||
|
|
Weight
|
|
4-6T
|
|
||||
|
4.Cutter
|
Automatic
|
|
cr12mov material, no scratches, no deformation
|
|
||||
|
5.Power
|
Motor Power
|
|
5.5KW
|
|
||||
|
|
Hydraulic system power
|
|
7.5KW
|
|
||||
|
6.Voltage
|
380V 50Hz 3Phase
|
|
As your requirement
|
|
||||
|
7.Control system
|
Electric Box
|
|
Customized（famous brand）
|
|
||||
|
|
Language
|
|
English（Support multiple languages）
|
|
||||
|
|
PLC
|
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|
||||
|
8.Forming Speed
|
12-35m/min
|
|
The speed depends on the shape of the tile and the thickness of the material.
|
|
||||
Products Display
Machines are customized as your drawing,here hot sale drawing profiles for your reference.
