Quick Details
-
Product Name:
-
car Battery Analyzer
-
Warranty:
-
discharge tester
-
Feature 1:
-
Battery test, cranking test, charging test
-
Function:
-
Cranking system and Charging system
-
Language available:
-
Chinese, English, German, Franch ,Japanese, dutch, Russian
-
More Language available:
-
Spanish,italian , Arabic, Portuguese
-
Brand:
-
KONNWEI
-
Car Models:
-
12V cars
-
The major battery standards:
-
CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC
-
Feature:
-
Coloful LCD 2.4inchs screen and menu
Quick Details
-
Brand Name:
-
KONNWEI
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
KW600
-
Product Name:
-
car Battery Analyzer
-
Warranty:
-
discharge tester
-
Feature 1:
-
Battery test, cranking test, charging test
-
Function:
-
Cranking system and Charging system
-
Language available:
-
Chinese, English, German, Franch ,Japanese, dutch, Russian
-
More Language available:
-
Spanish,italian , Arabic, Portuguese
-
Brand:
-
KONNWEI
-
Car Models:
-
12V cars
-
The major battery standards:
-
CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC
-
Feature:
-
Coloful LCD 2.4inchs screen and menu

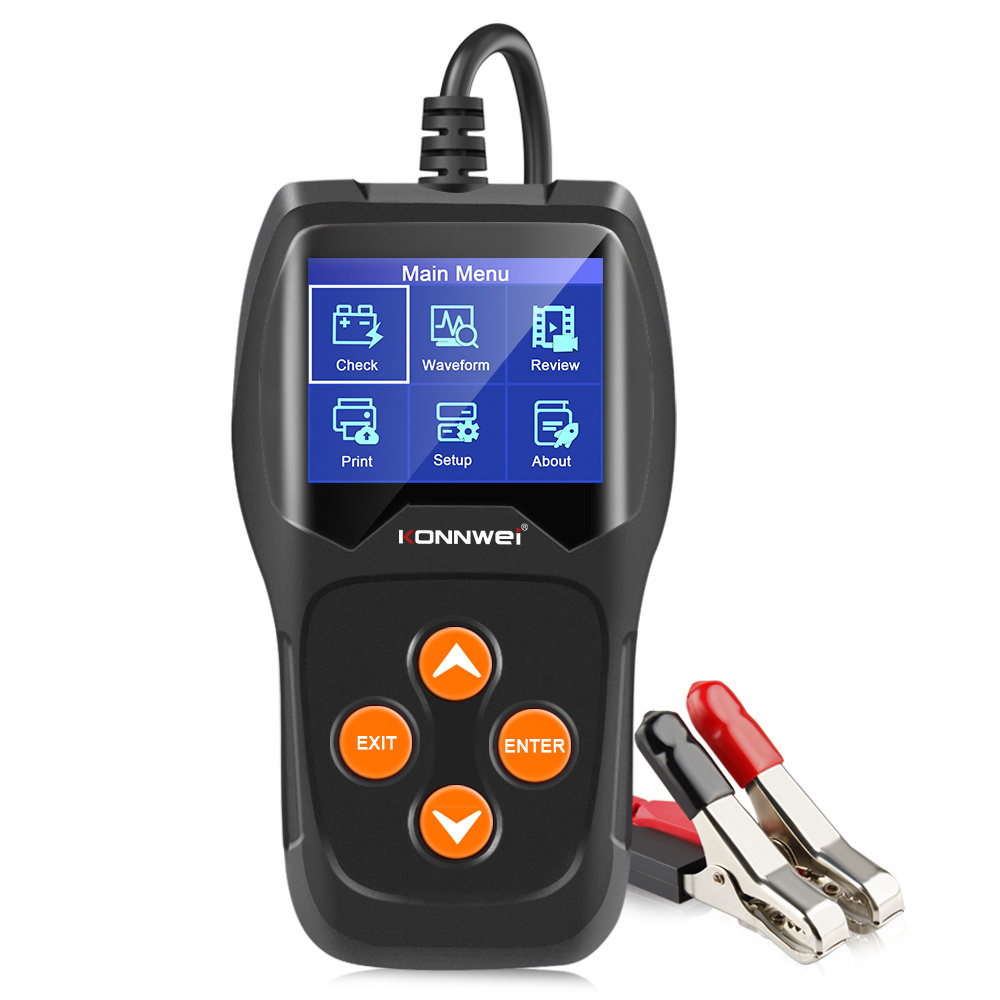

Jiawei konnwei factory smart tools KONNWEI KW600 car battery tester analyzer 12v battery tester
KW600 is the latest vehicle require a reset of the battery life when replacing batteries with 2.4 inches Color TFT LCD display Screen. Failure to do so many result in over -charging the new battery leading to shortened battery life and , in some cases, driveability issues. The KONNWEI KW600 diagnostic battery reset tool will save your battery repair fees and time.
Auto battery analyzer can be used for all kinds of 12V cars such as gasoline cars/ diesel hybrid electric vehicle,motorcycle batteries , and emergency batteries.
Function :
System voltage 12 Volts and Voltage test in waveform
Test Result Good, Recharge or Replace
Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. Internal resistance value (mΩ) and Life in percentage (%)
Cranking system and Charging system
Record and re-play battery data, Life-time free update service
Battery test, cranking test, charging test and other additional functions.
The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported
Multi-language menu options : English, French, Spanish German, Japanese, Russian, Italian, Portuguese, Polish, Dutch
Feature :
Measure Standard ,CCA 100-2000 ,BCI 100-2000 ,CA 100-2000 ,MCA 100-2000,
JIS 26A17-24SH52 ,DIN 100-1400 ,IEC 100-1400 ,EN 100-2000 ,SAE 100-2000,
GB 100-1400,System Voltage 12 Volts ,Input Voltage Range 8V-16V ,Power Requirements are no internal batteries required,Power on when hooked up during testing.
KW600 battery tester features:
1.System voltage: 12 Volts
2.Test Result: Good, Recharge or Replace
3.Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
4.Internal resistance value (mΩ)
5.Life in percentage (%)
6.Cranking system
7.Charging system
8.Voltage test in waveform
9.Record and re-play battery data, Life-time free update service
10.Battery test, cranking test, charging test and other additional functions.
Specifications
1.Measure Standard
2.CCA:100-2000
3.BCI:100-2000
4.CA:100-2000
5.MCA:100-2000
6.JIS:26A17-24SH52
7.DIN:100-1400
8.IEC:100-1400
9.EN:100-2000
10SAE:100-2000
11.GB:100-1400
12Display: Color TFT LCD Screen
13.System Voltage:12 Volts
14.Input Voltage Range:8V-16V
15.Power Requirements: No internal batteries required.
16.Power on when hooked up during testing.
17.Operating Temperature:0℃-50℃
18.Storage Temperature:-20℃-70℃
Application:
Use a test a wide range of 12v batteries(Starting{SLI},Deep Cycled and Marine) of Wet(Flooded),VRLA or Maintenance Free (MF),Sealed Maintenance Free (SMF), Absorption Glass Mat(AGM),EFB and GEL Cell.
The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported.
Package includes:
1*KONNWEI KW600 Auto Diagnostic Scanner
1*Mini USB cable
1*User’s Manual
| Model | KONNWEI KW600 |
| Product name | Battery Analyzer For all 12V batteries |
| Color | Black color |
| Usage | Auto Testing Machine, Test li-ion battery, Environment-simulated Test Chamber |
| Material | ABS housing |
| Item size( cm) | 14*11*2.5 |
| package size (cm) | 19.5*15*5.8 |
| Item Net weight(kgs) | 0.29 |
| Package Gross weight(Kg) | 0.38 |
| Quantity/cn | 50pcs/cn |
| Carton size(cm) | 49*49*40.5 |
| Carton Weight | 20.8KG/carton |
|
LCD Screen
Size(Inch) |
2.4Inchs LCD TFT Colorful Screen |
| Application | For all 12V cars battery such as vehicles car/ gasoline cars/Hybrid electric vehicle |
| IC Chip | SMT32F103C8T6 Chip solution |
| Color | 1 color:Black |
Model : KW510
| 1 | 12V 4Ah-100Ah Test & Repair & Recharge Battery Tester |
| 2 | Vehicle cranking system test, cranking time,voltage and status. vehicle charging system test load voltage,unloaded voltage,ripple status and charging system status. |
| 3 | 12V 4Ah-100Ah car battery can be charged full power within 12 hours . |
| 4 | Restore the capacity of the battery by repairing the car battery, extend the service life of the battery. |
Click picture to know more detail ↓
Model : KW850
| 1 | KW850 Works on most 1996 (OBDII & CAN) domestic and imported vehicles. |
| 2 | It can read and erase car fault code O2 sensor test, EVAP systems test, and on-board monitoring test etc. |
| 3 |
It give you full control of your vehicle's running status,
while a graphical and numeric live data stream display will help you to find out the faulty sensor readings. |
Click picture to know more detail ↓
Model : KW681
| 1 | Check actual cold cranking amps capability of the car & motorcycle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system |
| 2 |
Works on ALL OBD II Enabled vehicles,Allows you to accurately identify the cause of your
CHECK ENGINE and perhaps fix it without going to see your dealer |
| 3 | KW681= Car battery ester + Car OBDII dianostic scanner =2 function in one . |
