LPG fired 100KG/H Steam Boiler for Dry Cleaning Machine Price

LPG fired 100KG/H Steam Boiler for Dry Cleaning Machine Price

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 880*850*1760mm

Weight:: 450kg

Certification:: ISO CE SGS

Item:: LPG fired 100KG/H Steam Boiler for Dry Cleaning Machine Price

Keywords:: Steam Boiler for Dry Cleaning Machine Price

Rated evaporation:: 100kg/h

Thermal efficiency:: 93%

Rated working pressure:: 0.7-1.0MPa(7-10bar)

SteamTemperature:: 170/185

Manufacture License:: Class B

Material:: Q235B Carbon Steel

Producing Experience:: 15 years

Warranty:: 12 Months

Quick Details

Place of Origin:: Shanghai, China

Model Number:: LSS0.1-0.8-Y/Q

Brand Name:: YANO

Dimension(L*W*H):: 880*850*1760mm

Weight:: 450kg

Certification:: ISO CE SGS

Item:: LPG fired 100KG/H Steam Boiler for Dry Cleaning Machine Price

Keywords:: Steam Boiler for Dry Cleaning Machine Price

Rated evaporation:: 100kg/h

Thermal efficiency:: 93%

Rated working pressure:: 0.7-1.0MPa(7-10bar)

SteamTemperature:: 170/185

Manufacture License:: Class B

Material:: Q235B Carbon Steel

Producing Experience:: 15 years

Warranty:: 12 Months

Product Description

LPG fired 100KG/H Steam Boiler for Dry Cleaning Machine Price

Product Parameter For LPG fired 100KG/H Steam Boiler for Dry Cleaning Machine Price
Type/Spec	LSS0.035-1.0-Y/Q	LSS0.05-1.0-Y/Q	LSS0.08-1.0-Y/Q	LSS0.1-1.0-Y/Q
Rated Evaporation (kg/h)	35	50	80	100
Thermal Efficiency (%）	≥90	≥90	≥90	≥90
Rated Pressure (MPa)	0.7/1.0 (7-10 bar)	0.7/1.0 (7-10 bar)	0.7/1.0 (7-10 bar)	0.7/1.0 (7-10 bar)
Steam Temperature(℃)	170/185	170/185	170/185	170/185
Coal gas (Nm³/h）	6.2	8.9	15.0	17.0
Natural gas (Nm³/h）	2.8	4.0	6.0	7.6
Liquefied gas (kg/h）	2.2	3.1	4.5	5.7
Product Dimension (mm)	8007701410		8808501760
Package Dimension (mm)	8107801420		8908601770
Steam Caliber	DN15	DN15	DN25	DN25
Drain Outlet Caliber (mm)	DN15	DN15	DN25	DN25
Water Inlet Caliber (mm)	DN15	DN15	DN15	DN15
Weight (kg)	230	250	400	450

Main Features For LPG fired 100KG/H Steam Boiler for Dry Cleaning Machine Price

1) Unique Internal Structure Design That Is Exempted from Applying for a Boiler Use Certificate
2) High-efficiency Boiler Liner Structure
3) Advanced Automatic Control Function
4) Safe and scientific structural design

5)High-quality and fast steam

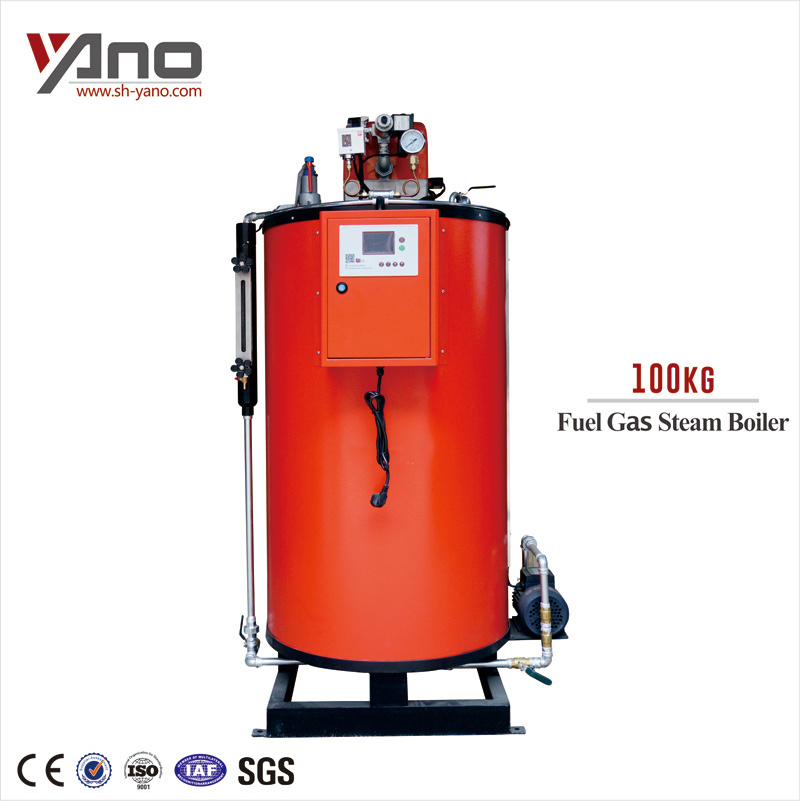

System Photo
