Quick Details
-
Filling Accuracy:
-
1%
-
Place of Origin:
-
Hebei, China
-
Weight:
-
3000 KG
-
Product name:
-
Liquid Filling Machine
-
Function:
-
Automatic Filler
-
After-sales Service Provided:
-
Automatic Filler
-
Keywords:
-
Fillng Machine
-
Usage:
-
Beverage Packaging
-
Name:
-
Automatic Filing System
-
Machine material:
-
Stainless Steel 304/316
-
Filling range:
-
200-2000ml
-
Production capacity:
-
1000-30000bph
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 6000BPH, 500BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Metal, Glass, Other
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
1%
-
Place of Origin:
-
Hebei, China
-
Weight:
-
3000 KG
-
Product name:
-
Liquid Filling Machine
-
Function:
-
Automatic Filler
-
After-sales Service Provided:
-
Automatic Filler
-
Keywords:
-
Fillng Machine
-
Usage:
-
Beverage Packaging
-
Name:
-
Automatic Filing System
-
Machine material:
-
Stainless Steel 304/316
-
Filling range:
-
200-2000ml
-
Production capacity:
-
1000-30000bph
Product Description

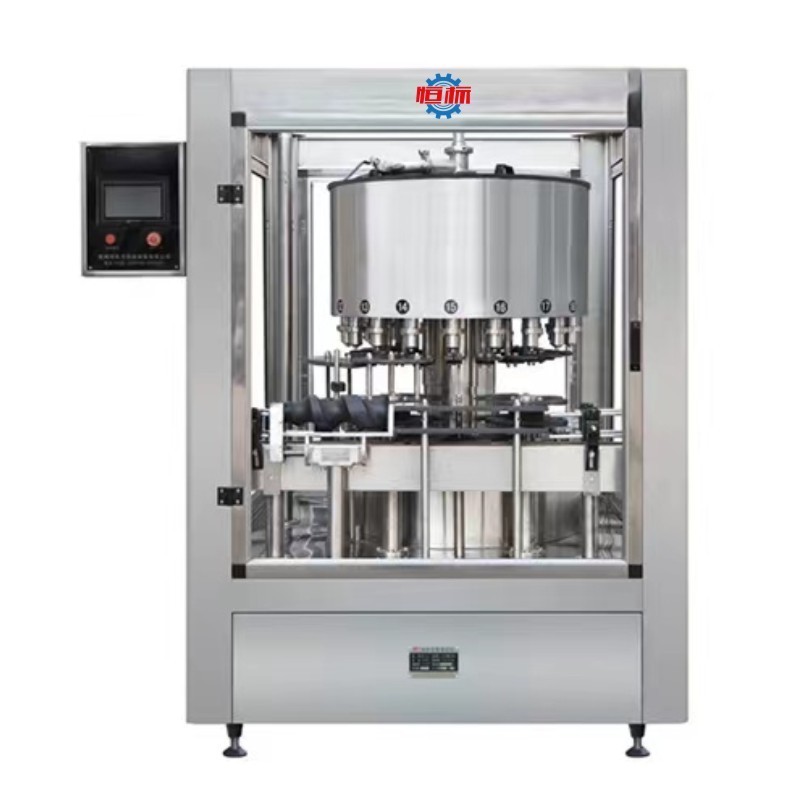

High-precision Filling Machine
Fully automatic high-precision electronically adjusted filling volume filling machine manufacturer for white wine red wine fruit wine beverage liquid.
Various models available
This type of filling machine is widely used in the filling of still liquor, rice wine, beverages, seasonings and other liquids. It has a wide filling capacity range and is suitable for many bottle types.
The machine can be made into manual adjustment mode for filling volume according to customer needs; customers can choose automatic or manual operation for the bottle in and out.
We supply complete solution for the juice , tea drinks , energy drinks filling production line ,including Water treatment system / Syrup melting system / Blending & mixing system / Homogenizer & sterilizer system / HFSC storage system / indegredient dosing system / Washing filling capping machine / Code printer / Pasteurizer tunnel / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system and so on.
We supply complete solution for the juice , tea drinks , energy drinks filling production line ,including Water treatment system / Syrup melting system / Blending & mixing system / Homogenizer & sterilizer system / HFSC storage system / indegredient dosing system / Washing filling capping machine / Code printer / Pasteurizer tunnel / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system and so on.
Details Images
Equipped with adjustable bottle feeding screw for smoother bottle feeding.
The filling volume adjustment adopts electric synchronous stepless adjustment. Press the increase /decrease adjustment button to adjust the filling volume. The digital display accurately displays the real-time filling capacity and is equipped with manual fine-tuning system to make the filling volume more accurate.
During filling, the liquid flows down along the bottle wall, which effectively controls the foam caused by the impact of the liquid during filling and prevents liquid from overflowing.
This machine has large filling range, and the filling volume can be adjusted between 125-550 ml. The applicable bottle height range is wide and can be adjusted between 150-350 mm (customization can be made beyond the range).
The main seals are made of silicone, and the main parts are made of 304 or 316 stainless steel.
Wide filling capacity range and is suitable for many bottle types.
Specification
|
Type
|
Filling heads number
|
Production Efficiency
|
Filling volume
|
Accuracy
|
Motor Power
|
|
FGCP-12
|
12
|
500-3000 BPH
|
150-750 ml
|
±1%
|
0.75 kw
|
|
FGCP-18
|
18
|
500-4500 BPH
|
150-750 ml
|
±1%
|
1.1 kw
|
|
FGCP-24
|
24
|
1000-6000 BPH
|
150-750 ml
|
±1%
|
1.5 kw
|
|
FGCP-36
|
36
|
1000-10000 BPH
|
150-750 ml
|
±1%
|
1.5 kw
|
