Quick Details
-
Dimension(L*W*H):
-
40*35*30
-
Material:
-
Stainless Steel
-
Standard:
-
Yonghua
-
Surface treatment:
-
Zinc Plating
-
DELIVERY TIME:
-
Within 30 Days
-
Application:
-
Construction Machinery
-
MOQ:
-
100pcs
-
Thread Type:
-
Male NPT
-
Keyword:
-
Hudraulic Hose Fitting
-
Suitable Medium:
-
Water Oil Gas
Quick Details
-
Warranty:
-
1.5 years
-
Place of Origin:
-
Zhejiang, China
-
Weight:
-
0.14
-
Dimension(L*W*H):
-
40*35*30
-
Material:
-
Stainless Steel
-
Standard:
-
Yonghua
-
Surface treatment:
-
Zinc Plating
-
DELIVERY TIME:
-
Within 30 Days
-
Application:
-
Construction Machinery
-
MOQ:
-
100pcs
-
Thread Type:
-
Male NPT
-
Keyword:
-
Hudraulic Hose Fitting
-
Suitable Medium:
-
Water Oil Gas

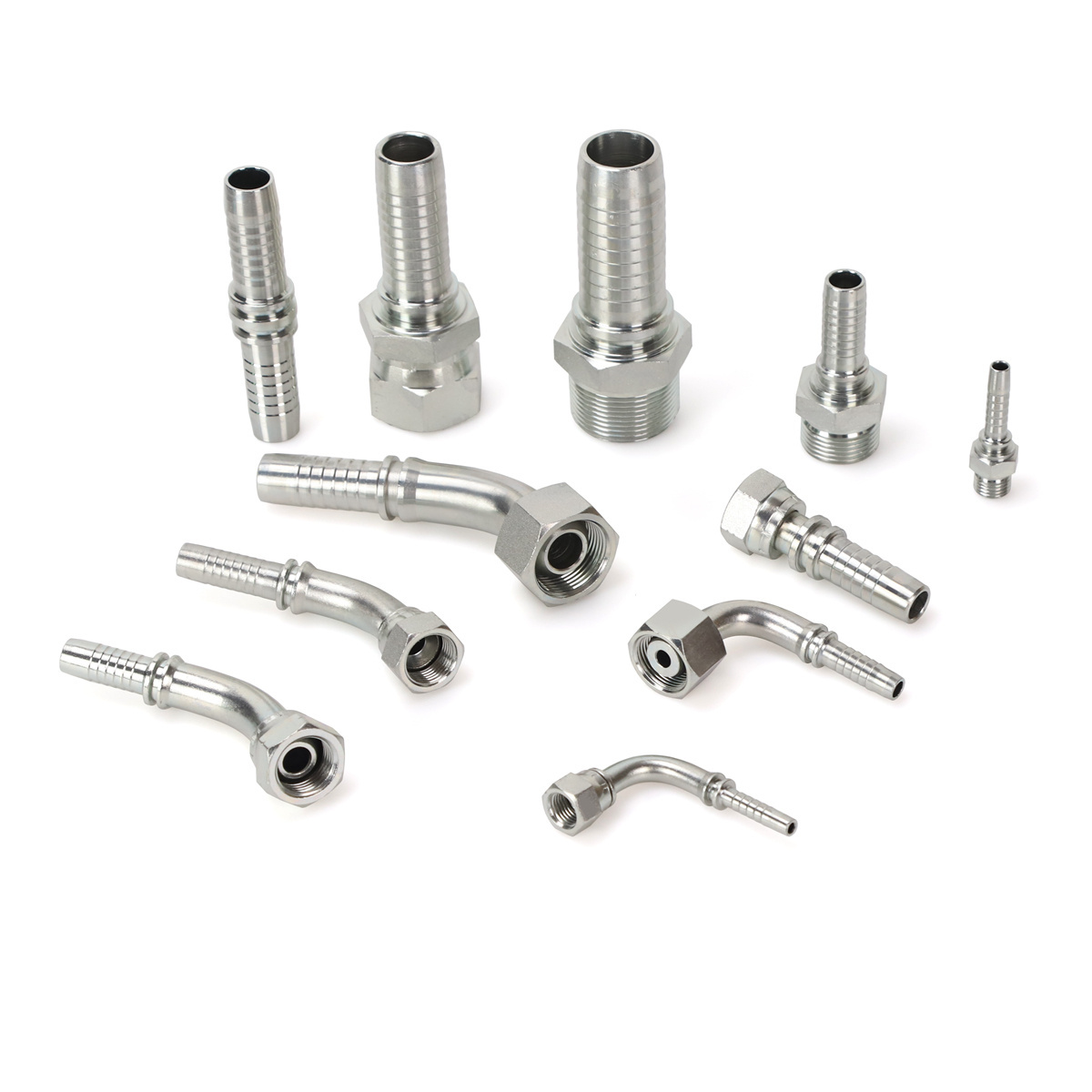

Product Description
70011
|
PART NO.
|
螺柱
BOLT
|
软管HOSE BORE
|
|
尺寸 DIMENSTONS
|
|
|
|
|||||||
|
|
|
公称内径DN
|
标号 DASH
|
A
|
d
|
D
|
H
|
|||||||
|
70011-10-03
|
M10X1
|
5
|
03
|
14.5
|
10.1
|
17
|
10
|
|||||||
|
70011-10-04
|
M10X1
|
6
|
04
|
17
|
10.1
|
17
|
10
|
|||||||
|
70011-12-04
|
M12X1.5
|
6
|
04
|
20.5
|
12.1
|
20
|
12
|
|||||||
|
70011-12-05
|
M12X1.5
|
8
|
05
|
20.5
|
12.1
|
20
|
12
|
|||||||
|
70011-12-06
|
M12X1.5
|
10
|
06
|
20.5
|
12.1.
|
20
|
12
|
|||||||
|
70011-14-04
|
M14X1.5
|
6
|
04
|
21
|
14.1
|
24
|
14
|
|||||||
|
70011-14-05
|
M14X1.5
|
8
|
05
|
21
|
14.1
|
24
|
14
|
|||||||
|
70011-14-06
|
M14X1.5
|
10
|
06
|
21
|
14.1
|
24
|
14
|
|||||||
|
70011-16-04
|
M16X1.5
|
6
|
04
|
20.5
|
16.1
|
28
|
16
|
|||||||
|
70011-16-05
|
M16X1.5
|
8
|
05
|
20.5
|
16.1
|
28
|
16
|
|||||||
|
70011-16-06
|
M16×1.5
|
10
|
06
|
20.5
|
16.1
|
28
|
16
|
|||||||
|
70011-18-04
|
M18X1.5
|
6
|
04
|
23
|
18.1
|
32
|
20
|
|||||||
|
70011-18-05
|
M18×1.5
|
8
|
05
|
24
|
18.1
|
32
|
20
|
|||||||
|
70011-18-06
|
M18×1.5
|
10
|
06
|
24
|
18.1
|
32
|
20
|
|||||||
|
70011-18-08
|
M18X1.5
|
12
|
08
|
24.5
|
18.1
|
32
|
20
|
|||||||
|
70011-22-06
|
M22X1.5
|
10
|
06
|
28.1
|
22.1
|
39
|
25
|
|||||||
|
70011-22-08
|
M22X1.5
|
12
|
08
|
28.5
|
22.1
|
39
|
25
|
|||||||
|
70011-22-10
|
M22X1.5
|
16
|
10
|
28
|
22.1
|
39
|
25
|
|||||||
|
70011-26-12
|
M26×1.5
|
20
|
12
|
32.5
|
26.1
|
46
|
30
|
|||||||
|
70011-30-16
|
M30X1.5
|
25
|
16
|
37
|
30.1
|
54
|
36
|
|||||||
|
70011-30-20
|
M30×1.5
|
32
|
20
|
40
|
30.1
|
54
|
36
|
|||||||
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为70012-xx-xx。
ase fitting_series number is 70012xx-xx |
|
|
|
|
|
|
|
|||||||
