Quick Details
-
Model Number:
-
JC-1250
-
usage:
-
twist bunching
-
wire appliable:
-
copper and aluminum
-
controlling:
-
PLC
-
bobbin size:
-
1250
-
twist direction:
-
S or Z
-
Oirgin:
-
China
-
weight:
-
12500 kg
-
main motor:
-
45 kw D.C
Quick Details
-
Use:
-
Twisting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jiacheng
-
Model Number:
-
JC-1250
-
usage:
-
twist bunching
-
wire appliable:
-
copper and aluminum
-
controlling:
-
PLC
-
bobbin size:
-
1250
-
twist direction:
-
S or Z
-
Oirgin:
-
China
-
weight:
-
12500 kg
-
main motor:
-
45 kw D.C

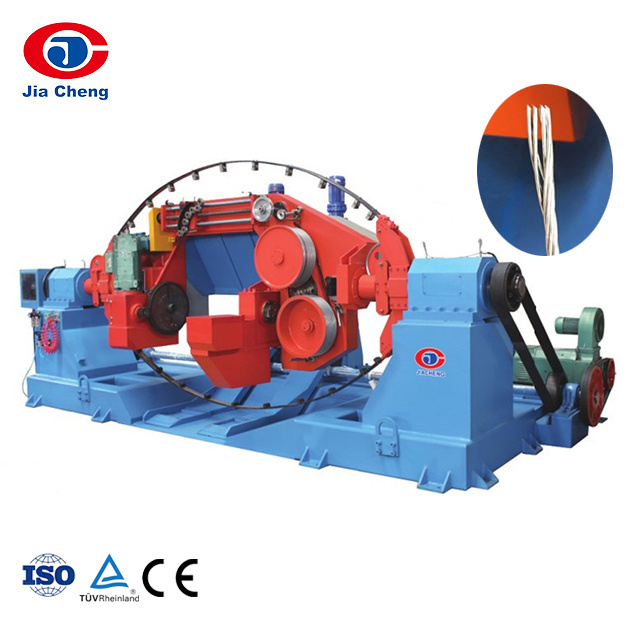

1250 mm copper wire double twist bunching plant is suitable for copper wire or PVC insulated wire or aluminum wire udder 7 strands conductor to concentric twisted, mainly used for cross section for 50mm2.
|
Machine type |
JC-φ1250D |
|
Wire product of stand |
Special use twist aluminum and copper round press dowm the conductor |
|
Cooper wire individual |
Φ1.0-3.0 MM |
|
Finish stranded wire/max. |
10 mm φ/max |
|
Finish stranded wire/Max. |
15mm φ/max |
|
Section of strand-twisting(Flexible strand) |
3.5÷70mm2(6AWG÷450MCM) |
|
Section of strand-twisting(Semi-frametwisting1+6) |
3.5÷50mm2(6÷1/0AWG) |
|
Section of compaction Cu |
3.5÷50mm2(6AWG÷300MCM) |
|
Section of compaction Al |
3.5÷70mm2(6AWG÷301MCM) |
|
Line speed/Max. |
150mpm/max |
|
Stand pitch(mm) |
40-350mm |
|
60 |
8000rpm/max.(1600TPM) |
|
Load weight/Max. |
3000KG |
|
Max.compaction angle |
13% |
|
Traction pulley |
2×φ600mm |
|
Standing Direction |
S,Z Direction |
|
Main motor(DC/AC/HP) |
45kw D.C. motor |
|
Drive of Capstan(DC/AC/HP) |
30kw D.C. motor |
|
Drive of take-up unit(DC/AC/HP) |
7.5kw D.C. motor |
|
Drive of traverser |
0.75kw Inverter motor |
|
Drive of loading&unloading |
1.5kw Inverter motor |
|
Power control |
Digital type DC control |
|
Revise system |
Line speed synchronous auto control |
|
Spool bobbin size OD |
OD:φ1250 mm/Max |
|
Spooler size OW |
950×800×80(mm) |
|
Control system |
PLC man-machine interface |
|
Tension control |
Coiling motor indicates tension control |
|
Lay stranding pitch |
PLC digitization setting |
|
Operating direction |
Left/ right hand machine |
|
Traversing width |
1000mm/Max |
|
Traversing unit |
Wire diameter setting by digital type |
|
Take-up type |
Reel taken between pneumatic pintles |
|
Reel loading & unloading |
Liquefaction automatic positioning |
|
Brake system |
Disc brake |
|
Bearing lubricative type |
Oiling regularly |
|
Air pressure |
6kg/cm2 |
|
Voltage |
380V 50Hz |
|
Noise level |
80db |
|
Machine size |
(L)6030×(W)2280×(H)2280mm |
|
Weight |
12500kg |
