Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZSSTH
-
Model Number:
-
SZSSTH-3000w
-
Input Voltage:
-
24v
-
Output Voltage:
-
230V
-
Output Current:
-
13.64A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
348x270x95mm
-
Certificate:
-
CE, ROHS
-
Warranty:
-
1 year, 1 Year
-
Weight:
-
5KG
-
Product name:
-
Hybrid MPPT solar Inverter
-
Application:
-
Hybrid Solar System
-
Rated output power:
-
3000w
-
Output waveform:
-
Puer Sine Wave
-
Battery type:
-
Lead Acid \ Lithium
-
Display::
-
LCD display
-
Type::
-
Off-grid single phase Inverter
-
Communication interface::
-
RS-232 communication port
-
Maximum output power::
-
3000w
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
91%-92%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZSSTH
-
Model Number:
-
SZSSTH-3000w
-
Input Voltage:
-
24v
-
Output Voltage:
-
230V
-
Output Current:
-
13.64A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
348x270x95mm
-
Certificate:
-
CE, ROHS
-
Warranty:
-
1 year, 1 Year
-
Weight:
-
5KG
-
Product name:
-
Hybrid MPPT solar Inverter
-
Application:
-
Hybrid Solar System
-
Rated output power:
-
3000w
-
Output waveform:
-
Puer Sine Wave
-
Battery type:
-
Lead Acid \ Lithium
-
Display::
-
LCD display
-
Type::
-
Off-grid single phase Inverter
-
Communication interface::
-
RS-232 communication port
-
Maximum output power::
-
3000w
Product Description

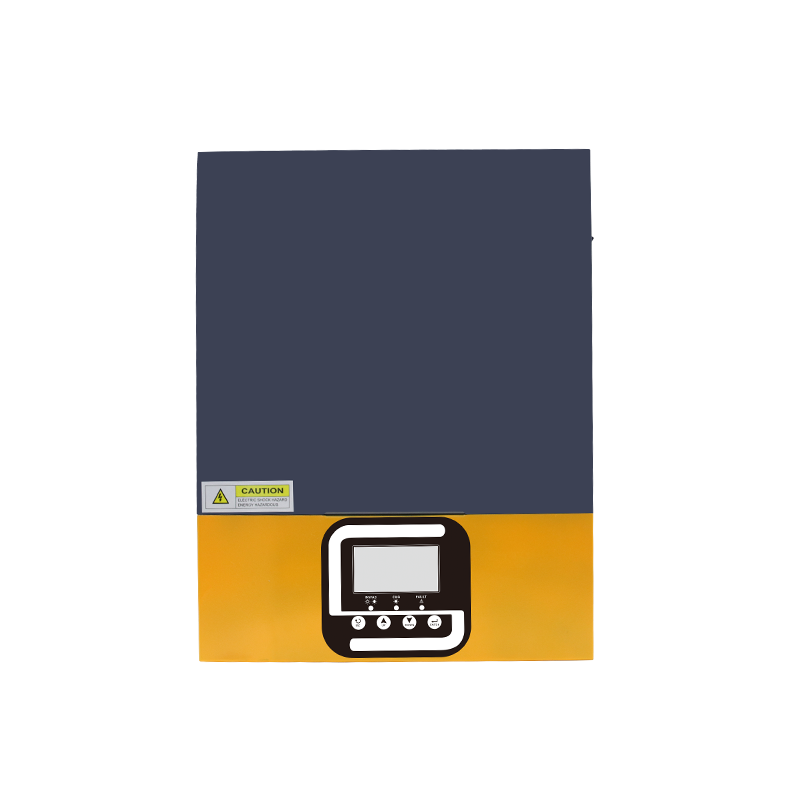

Multi Function Hybrid Solar Inverter 3Kw 3.5Kw 5Kw 8Kw Off Grid Inverter 3000W Hybrid Solar Power Inverter with AC charger
Product Features
1)Pure sine wave solar inverters2) High PV input voltage range 90-430V
3) Built-in 80A MPPT solar charger
4) Battery equalization function to optimize battery performance and extend lifecycle.
5) Built-in anti-dust kit for harsh environment.
6) Support working without battery
1. LCD display
2.Status indicator
3.Charging indicator
4.Fault indicator
5.Function buttons
6.Power on/off switch
7.AC input
8.AC output
9. PV input
10. Battery input
11. Circuit breaker
12.RS-232 communication port
Detailed Images
Product packaging
|
Item
|
3000w Hybrid Solar Inverter
|
|
|
|
|||
|
Brand Name
|
SZSSTH
|
|
|
|
|||
|
Model Number
|
SZSSTH3000w
|
|
|
|
|||
|
Input Voltage
|
24V
|
|
|
|
|||
|
Output Voltage
|
230V
|
|
|
|
|||
|
Maximum solar charging current
|
80Amp
|
|
|
|
|||
|
Output Frequency
|
50~60Hz
|
|
|
|
|||
|
Output Type
|
Single
|
|
|
|
|||
|
Size
|
348x270x95mm
|
|
|
|
|||
|
Type
|
DC/AC Inverters
|
|
|
|
|||
|
Inverter Efficiency
|
92%
|
|
|
|
|||
|
Certificate
|
CE/RHOS
|
|
|
|
|||
|
Warranty
|
12 months
|
|
|
|
|||
|
PV voltage:
|
90-430VDC
|
|
|
|
|||
|
Input Voltage
|
120VDC-450VDC
|
|
|
|
|||
|
Output Current
|
Load
|
|
|
|
|||
|
Type
|
DC/AC Inverters
|
|
|
|
|||
|
Inverter type
|
pure sine wave
|
|
|
|
|||
|
Communication Interface
|
RS232
|
|
|
|
|||
|
Operating temperature
|
-0℃-50℃
|
|
|
|
|||
