Quick Details
-
Product name:
-

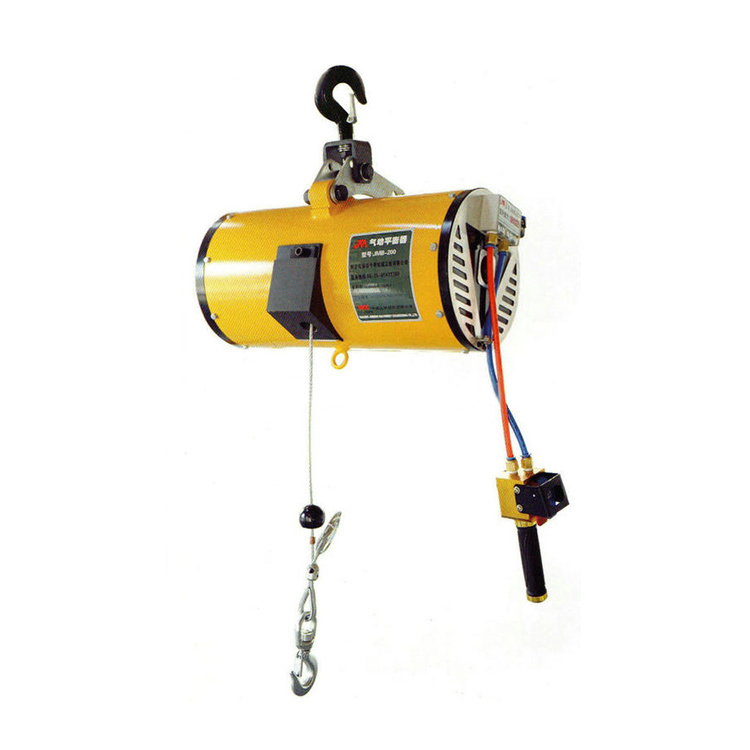

Pneumatic balancer
-
Application:
-
Lifting Goods
-
Color:
-
Customised
-
Brand:
-
JYH
-
Place of origin:
-
SHANXI CHINA
-
Weight:
-
62KG
-
Control Method:
-
Electric Operated
-
Capacity:
-
60-400KG
-
Lifting height:
-
1m-2m
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
JYH
-
Product name:
-
Pneumatic balancer
-
Application:
-
Lifting Goods
-
Color:
-
Customised
-
Brand:
-
JYH
-
Place of origin:
-
SHANXI CHINA
-
Weight:
-
62KG
-
Control Method:
-
Electric Operated
-
Capacity:
-
60-400KG
-
Lifting height:
-
1m-2m
-
Certification:
-
CE
This product passes through the strict inspection and the audit. Use the high quality material and the advanced technology
Introduction
1. Wire rope drum: reliable, durable and maintenance-free
2. Bearing: Thrust bearing adopts double dust-proof ball bearing
3. Cylinder and piston: The piston and the inner wall of the cylinder are lubricated with German imported grease. When compressed air enters the cylinder, the piston is pushed to reciprocate and become lighter and smoother.
4. Air valve: Precise piston movement controls the amount of air in and out to achieve floating and balance functions
5. Control handle: The button-type handle accurately and effectively controls the speed and rhythm of lifting and lowering
6. Air cut protection: When the air source is suddenly cut off, the centrifugal controller directly controls the power transmission part to automatically lock the brakes to prevent the load suspended in the air from falling freely
Features
Polyester hoses with joints replace steel wire ropes, and pneumatic tools can easily move up and down. When the spring fails, the anti-falling device is activated to prevent the pneumatic tools and devices from falling.
The inner diameter of the hose is 8.5mm, and the hanging tool runs when there is enough gas.
working environment
Location: Indoor or under normal atmospheric conditions.
Operating temperature: -10℃—40℃
Maximum air pressure: 1.0MPa (10 kgf/cm2)
|
Lift weight |
Kg |
0-60 |
60-100 |
100-200 |
200-400 |
|
Standard lifting height |
m |
1.4 |
1.8 |
2 |
1 |
|
Number of steel ropes |
pieces |
1 |
1 |
1 |
2 |
|
Working medium |
Compressed air |
||||
|
working pressure |
mpa |
0.1~0.7 |
0.1~0.7 |
0.1~0.7 |
0.1~0.7 |
|
Air consumption |
m3/min |
0.27 |
0.33 |
0.35 |
0.36 |
|
External air pipe connector |
in |
G3/8 |
G3/8 |
G3/8 |
G3/8 |
|
External hose size (inner diameter/outer diameter) |
mm |
10/12 |
10/12 |
G3/8 |
G3/8 |
|
Net weight |
kg |
25 |
37 |
58 |
62 |
