Quick Details
-
Size:
-
17000*45000*4100mm
-
Material:
-
Stainless Steel
-
Product name:
-
tunnel car washing machine
-
The full machine power:
-
45KW
-
The power standard:
-
3phase 4wires 380V/50Hz
-
Water tank volume:
-
3T
-
Air pump pressure:
-
10KG
-
Car washing range:
-
Height≤2m Width≤2m
-
Warranty:
-
3 year warranty
-
Washing time:
-
≤160 seconds
-
Water consumption:
-
about 60~80L/car
-
MOQ:
-
1 Set
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SINO STAR
-
Model Number:
-
S6
-
Size:
-
17000*45000*4100mm
-
Material:
-
Stainless Steel
-
Product name:
-
tunnel car washing machine
-
The full machine power:
-
45KW
-
The power standard:
-
3phase 4wires 380V/50Hz
-
Water tank volume:
-
3T
-
Air pump pressure:
-
10KG
-
Car washing range:
-
Height≤2m Width≤2m
-
Warranty:
-
3 year warranty
-
Washing time:
-
≤160 seconds
-
Water consumption:
-
about 60~80L/car
-
MOQ:
-
1 Set

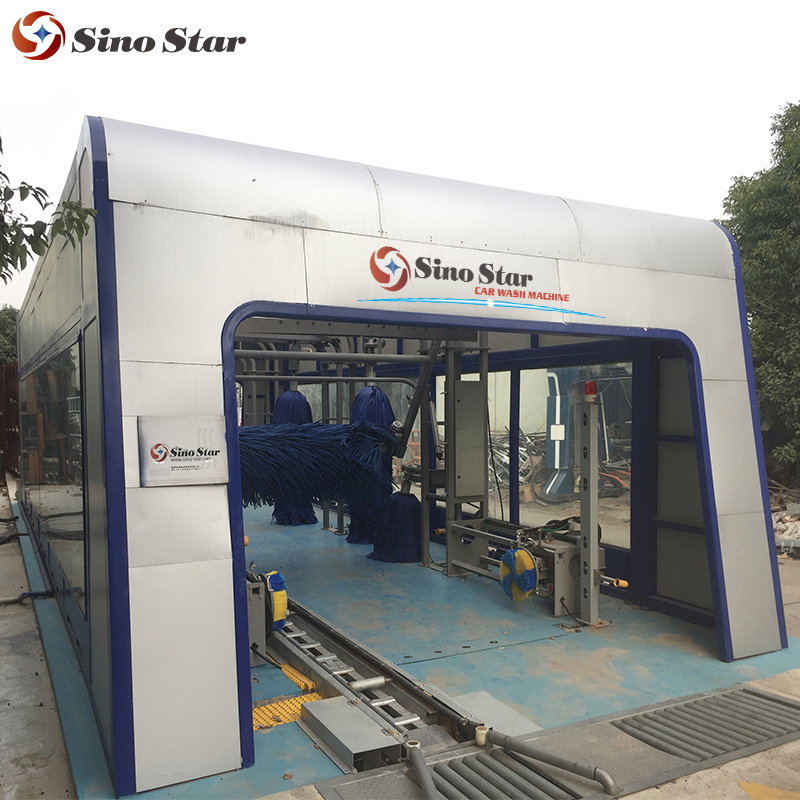

2018 professional tunnel car washing machine auto car wash machine water type car wash machine
Product name: Tunnel car washing machine
Model series: S6
| Product | Model | Specifications | |||
| The full machine power | Water consumption | Washing time | Suitable cars | ||
| Tunnel car washing machine(S6) | 7 brushes | 45KW | about 60~80L/car | ≤160 seconds | different kinds of cars |
| 9 brushes | |||||
| 12 brushes | |||||
| Delivery time | 20-30 days | ||||
| Payment terms | 30% T/T in advance, the rest paid before delivery | ||||
| Warranty | 3 year warranty | ||||
| Installation | Installation & training, USD 100/day(about 7-10 days)Customer need to afford round trip air ticket, visa, hotel and dinners for 1 engineer | ||||
| Notes | Installation size can be customized according to client's requirements,Maximum can wash 7 seats SUV | ||||
| Installation requirements | |||||
| Minimum installion size | Floor area |
The power standard |
Car washing range | Air pump pressure | Water tank volume |
|
Length17m,Width4.5m Height4.1m |
76.5squre meters | 3phase 4wires380V/50Hz |
Height≤2m Width≤2m |
10KG | 3T |
1.Scope of application
Car washing machine apply to clean, wax and dry the cars,jeeps,SUV,mini van and other box-type vehicles whose height is less than or equal 2m.
2.Car washing machine detailed list
A. Car washing machine B.Host support structure C.Mobile host system
D.Rotating high-pressure flushing system E.Lotion spray system F. Foam pourer system
3.Specification
a.Cleaning vehicle maximum size shape
b.Wash the car site installation size requirements
c.High-pressure flushing water consumption in a week
Foundation base,source of water,power supply,air source(air compressor)are all supplied by users to the designated spot of drawing(foundation drawing provided by manufacturer).
4.Product feature
Easy operation , easy to use , Function of flexible and varied , high automation level , good-looking appearance , energy conservation and environment protection , long service life , Wash the car costs low , Low maintenance cost , Antirust performance is good,good reliability.
5.Cleaning way
Six cleaning ways According to the set sequence can be choosed of free combination on the touch screen.(Chassis wash another page)
