Quick Details
-
Brand:
-
Haiiwai
-
Packaging:
-
T&R
-
Description:
-
HFP-S100-ZRF-XXL-T7
-
Terminal:
-
PHOSPHOR BRONZE TIN PLATED
-
Housing:
-
LCP
-
Flammability rating:
-
UL94V-0
-
Mounting feature:
-
Vertical
-
Min Nr. of Positions:
-
4POS
-
Max Nr. of Positions:
-
32POS
-
Quote at Nr of Pos:
-
14POS
-
Supply type:
-
Mfr. direct supply. Fresh produce.
Quick Details
-
Type:
-

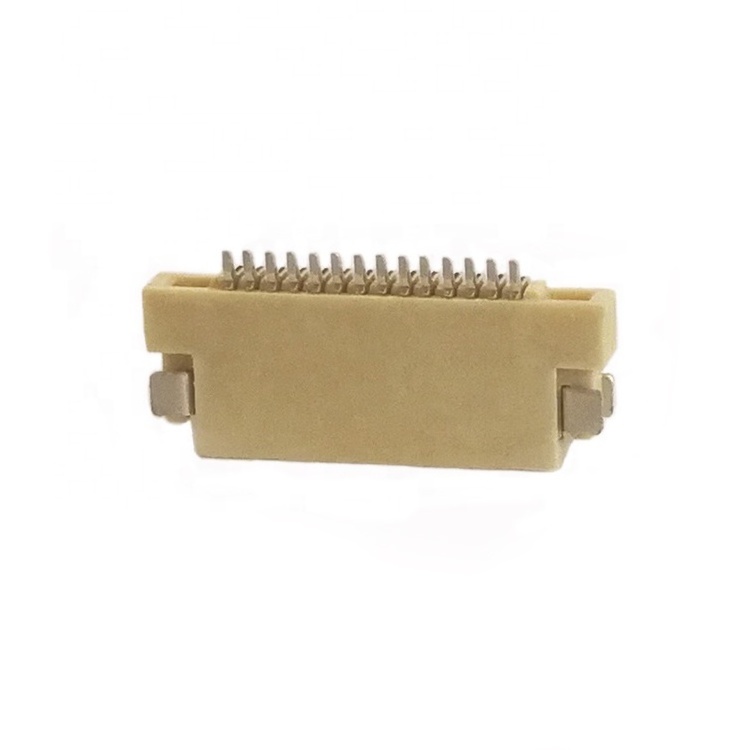

FFC/FPC Connector
-
Model Number:
-
1.0mm pitch vertical FPC Connector
-
Place of Origin:
-
Guangdong, China
-
Brand:
-
Haiiwai
-
Packaging:
-
T&R
-
Description:
-
HFP-S100-ZRF-XXL-T7
-
Terminal:
-
PHOSPHOR BRONZE TIN PLATED
-
Housing:
-
LCP
-
Flammability rating:
-
UL94V-0
-
Mounting feature:
-
Vertical
-
Min Nr. of Positions:
-
4POS
-
Max Nr. of Positions:
-
32POS
-
Quote at Nr of Pos:
-
14POS
-
Supply type:
-
Mfr. direct supply. Fresh produce.
Product Description
|
Custom made
|
Number of POS's are available from 4 to 32POS's. In this quotation, 14POS are used.
|
Operating Temperature
|
-25℃ - 85℃
|
|
Current Rating
|
0.5A AC DC
|
Resistance To Soldering Heat
|
260℃ for 5sec
|
|
Contact Resistance
|
30mΩ Max
|
Humidity Test
|
96 hours at 40℃ with 90% to 95% RH
|
|
Insulation Resistance
|
500mΩ Min
|
Heat Test
|
96 hours at 80℃ with below 50% RH
|
|
Withstanding Voltage
|
500V Min
|
Cold Test
|
96 hours at -20℃
|
