- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
6450*2650*3940 mm
-
Machine Weight:
-
9300 kg
-
Bucket capacity:
-
0.8 - 1.2 m³
-
Marketing Type:
-
HOT SALE
-
Product name:
-
tractor backhoe loader
-
Bucket Capacity:
-
1.2 m³
-
Backhoe Capacity::
-
0.3m³
-
Keyword:
-
mini backhoe loader
Quick Details
-
Engine Brand:
-
Famous Brand
-
Power:
-
75 KW
-
Brand Name:
-
DIG-DOG
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
6450*2650*3940 mm
-
Machine Weight:
-
9300 kg
-
Bucket capacity:
-
0.8 - 1.2 m³
-
Marketing Type:
-
HOT SALE
-
Product name:
-
tractor backhoe loader
-
Bucket Capacity:
-
1.2 m³
-
Backhoe Capacity::
-
0.3m³
-
Keyword:
-
mini backhoe loader
Products Description
DIG-DOG
MINI
BACKHOE LOADERS
DIG-DOG backhoe loaders are versatile machines that combine excellent trenching, excavating, loading, lifting and material handling capabilities with the benefits of a single machine that is easy to maintain and simple to operate.
Building on over 15 years of Backhoe expertise the DIG-DOG range of backhoe loaders are designed to be rugged, versatile and highly productive.
●
Turn eight link loading working device, with better bucket lift translation, greater excavation force, and equipped with bucket ground automatic leveling system, effectively improve the efficiency of loading operation;
●
The excavation working device adopts the middle type, and the boom and bucket rod adopt the box structure, which is strong and durable with good structural stability. Optional wing spread legs to provide better excavation stability;
●
The structural parts are the overall frame, and the integral frame structure has better excavation stability and is more suitable for excavation operation.
●
Using low pressure wide base off-road tires, rear axle swing, with good off-road performance and pass performance.
Product Paramenters
|

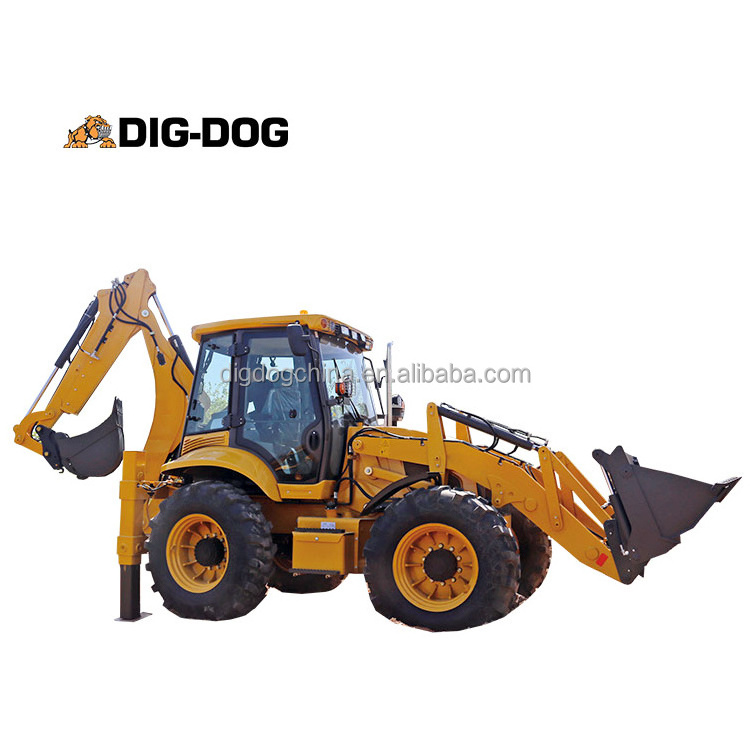

DIG-DOG BL920 MINI BACKHOE LOADER
|
|
|
||
|
Total length(bucket at ground)
|
|
6450±80mm
|
||
|
Total width
|
|
2650±20mm
|
||
|
Bucket width
|
|
2620mm
|
||
|
Total height (cabin top)
|
|
3120±10mm
|
||
|
Total height (digging boom top)
|
|
3940 ±20mm
|
||
|
Wheel base
|
|
2335±10 mm
|
||
|
Wheel tread
|
|
2139 ±10mm
|
||
|
Rated load
|
|
2500KG
|
||
|
Operating weight
|
|
9300kg
|
||
|
Rated bucket capacit
|
|
1.2m³
|
||
|
Max. Dumping height (41o dumping angle)
|
|
3050±50 mm
|
||
|
Dumping distance
|
|
870±20 mm
|
||
|
Rated digging bucket capacity
|
|
0.3m³
|
||
|
Max. Digging depth
|
|
3820±20 mm
|
||
|
Max. Digging radius
|
|
5345±20mm
|
||
|
Max. Loading height
|
|
3740±20mm
|
||
|
Max. Digging force
|
|
5100kgf
|
||
|
Max.Digging height
|
|
5470 ±20mm
|
||
|
Lifting force at Max. Digging radius
|
|
1220kg
|
||
|
Max. Digging Depth
|
|
4970±20 mm
|
||
|
Max. Loading Height
|
|
4983±20mm
|
||
|
Max. Digging Height
|
|
6680±20mm
|
||
Other Models
BL350 1 ton
Bucket Capacity: 0.8m³
Backhoe Capacity: 0.2m³
Engine: 37KW/4 cylinder/Yunnei490
L*W*H: 5600*1680*2730mm
Backhoe Capacity: 0.2m³
Engine: 37KW/4 cylinder/Yunnei490
L*W*H: 5600*1680*2730mm
BL750 2.5 ton
Bucket Capacity: 1.0m³
Backhoe Capacity: 0.3m³
Engine: 75KW/YUCHAI
L*W*H: 6170×2268×3760mm
BL820 2.5 ton
Bucket Capacity: 1.0m³
Backhoe Capacity: 0.3m³
Engine: 75KW/YUCHAI
L*W*H: 6100*2365*3752mm
BL820W 2.5 ton
Bucket Capacity: 1.0m³
Backhoe Capacity: 0.3m³
Engine: 70KW/WEICHAI
L*W*H: 6100*2365*3752mm
BL820T 2 ton
Bucket Capacity: 1.0m³
Backhoe Capacity: 0.3m³
Engine: 70KW/DEUTZ
L*W*H: 6150*2250*3630mm
BL920 2.5 ton
Bucket Capacity: 1.2m³
Backhoe Capacity: 0.3m³
Engine: 75KW/WEICHAI
L*W*H: 6150*2250*3630mm
Details Images
Cab
Enlarged fully sealed cab, adjustable suspension seat can be rotated 180°. Wood grain interior and sunroof design, built-in sun visor, rear view mirror, music entertainment system, window hammer, fire extinguisher.
Operation lever
The pilot-operated operation， which is softer and lighter in operation and has better versatility. All joysticks are ergonomically distributed near the driver's seat for comfortable operation.
Operation area
The braking system is safe and reliable, with air-capped oil caliper disc-type foot brake system and external beam-type drum hand brake.
Tire
Famous brand rubber tires in China, professional model design, high width safety.
Engine
The fuel consumption performance is better, the fuel consumption rate is lower, the cooling performance is improved, and the power is more abundant.
Axle
Adopt mid-mounted two-way hydraulic steering cylinder, compact structure, light and flexible steering. Hydraulic multi-piece differential lock, locking balance, smooth running.
Attachments
During construction, the operator only needs to turn the seat once in the cab to complete the transformation from excavator to loader. Backhoe loader main function is to excavate and load, also can install quick change device, by changing the different fittings, can be realized in addition to the mining, loading of different functions such as crushing, drilling, snow removal,cleaning, to municipal emergency rescue, city pipeline, landscaping, roads and other industry customers to provide comprehensive solutions.
