The comprehensive crusher is a special equipment for fuel storage of biomass power plants. The raw materials for crushing are various types of trees, small diameter wood, wood harvesting residues (such as branches, branches, etc.) and wood processing residues (such as boards, slats, log cores, waste veneer, etc.), and urban construction waste (such as building templates, waste pallets), etc., can also crush non-wood materials (such as hemp stalks, reeds, bamboo, corn stalks, cotton firewood, etc.).
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
132 kw
-
Dimension(L*W*H):
-
8980*2900*2840mm
-
Weight (KG):
-
15000
-
Product name:
-
Drum Tree Log Crushing Pulverizing Machine Wood Chipper Shredder
-
Model:
-
CRS1260-500, CRS1400-500
-
Capacity:
-
10-20T/h
-
Motor:
-
132-220kw
-
Feed inlet:
-
W1250-1600*H500mm
-
Rotor diameter:
-
800mm
-
Max. material diameter:
-
400mm
-
Raw material:
-
Waste Wood Material,pallet
-
Application:
-
Crushing wood pallet big size waste wood
-
Final product:
-
Wood chips, wood sawdust
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZZCHRYSO
-
Voltage:
-
380V or customized
-
Power:
-
132 kw
-
Dimension(L*W*H):
-
8980*2900*2840mm
-
Weight (KG):
-
15000
-
Product name:
-
Drum Tree Log Crushing Pulverizing Machine Wood Chipper Shredder
-
Model:
-
CRS1260-500, CRS1400-500
-
Capacity:
-
10-20T/h
-
Motor:
-
132-220kw
-
Feed inlet:
-
W1250-1600*H500mm
-
Rotor diameter:
-
800mm
-
Max. material diameter:
-
400mm
-
Raw material:
-
Waste Wood Material,pallet
-
Application:
-
Crushing wood pallet big size waste wood
-
Final product:
-
Wood chips, wood sawdust
Product Description
China Manufacturer Comprehensive Wood Chipper Shredder Industrial Wooden Pallet Crusher Machine Hammer Mill For Sawdust Powder
Comprehensive Wood Crusher Chipper Introduction
Specification
|
Model
|
ZZCHRYSO1250-500
|
ZZCHRYSO1400-500
|
ZZCHRYSO1600-500
|
|
Rotor dia. (mm）
|
800
|
800
|
800
|
|
Feed roller method
|
Forced feed roller
|
Forced feed roller
|
Forced feed roller
|
|
Cutting mechanism
|
20 hammers
|
24 hammers
|
24-28 hammers
|
|
Screen size mm)
|
80-100
|
80-100
|
80-100
|
|
Feeding inlet size（mm）
|
1250-500
|
1400-500
|
1600-500
|
|
Knife roll speed
|
540
|
800
|
800
|
|
Production (t/h)
|
10-15
|
15-20
|
18-30
|
|
Motor power （kw)
|
132-160
|
185-200
|
200-220
|
|
Feed mode
|
5m chain plate feeding
|
5m chain plate feeding
|
5m chain plate feeding
|
|
Discharge
|
10m belt conveyor
|
10m belt conveyor
|
10m belt conveyor
|
|
Assessories
|
20 hammers
|
24 hammers
|
24-28 hammers
|
|
Size
|
8.3*2.3*2.9
|
8.6*2.5*2.9
|
9.2*2.8*3.1
|

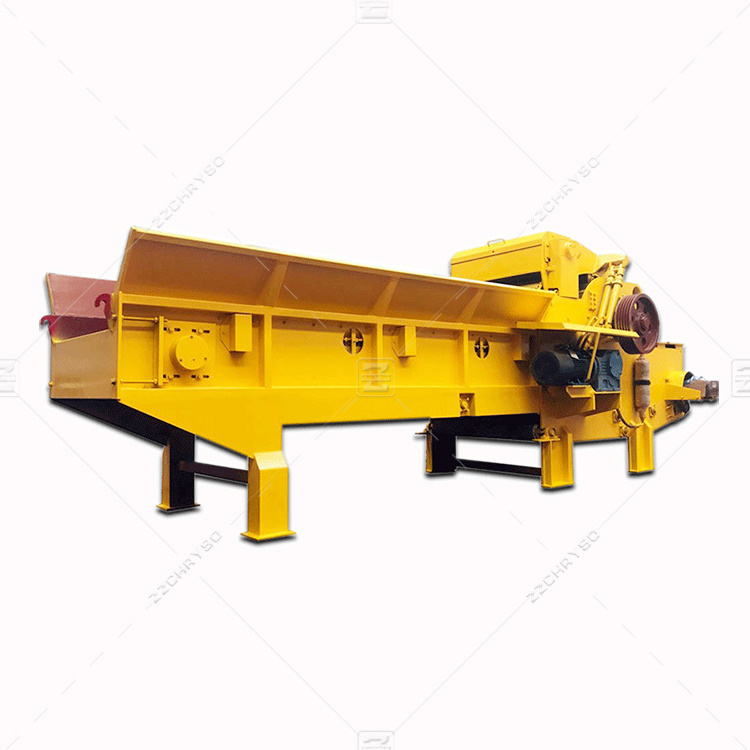

Product Display
Packing & Delivery
1x40'FR for wood shredder main machine
1x20'GP for wood shredder auxiliary equipments
