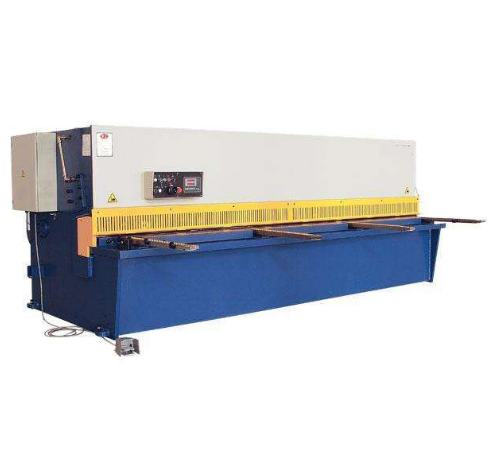

This machine adopts hydraulic driving and swing tool carrier,the structure is convenient to operate to operate and maintain.the characteristic of it is that it has complete fuctions mechanical back gauge manually operated trimming and numberical value
display structure it also has blade clearnce "Quick set" device,line on the plate E10,SIKO DRO/HT071 NV system Available as optional.
- Product Details
- {{item.text}}
Quick Details
-
Blade Length (mm):
-
2500 mm
-
Backgauge Travel (mm):
-
20 - 600 mm
-
Throat Depth (mm):
-
60 mm
-
Brand Name:
-
SMAC, SMAC
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V or as your requirement
-
Dimension(L*W*H):
-
6000*1250*680
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
number stoke ( spm ):
-
17
-
Table height:
-
680 mm
-
Travels times:
-
≥15 Times/min
-
Power Requirement:
-
220V(380)/3-Phase
-
name:
-
SBSH-8*3200 Hydraulic metal swing shear
-
Weight:
-
according the product
-
Times of stroke:
-
18Per/min
-
Motor power:
-
4KW
Quick Details
-
Max. Cutting Width (mm):
-
2500 mm
-
Max. Cutting Thickness (mm):
-
4 mm
-
Shearing Angle:
-
1°30"
-
Blade Length (mm):
-
2500 mm
-
Backgauge Travel (mm):
-
20 - 600 mm
-
Throat Depth (mm):
-
60 mm
-
Brand Name:
-
SMAC, SMAC
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V or as your requirement
-
Dimension(L*W*H):
-
6000*1250*680
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
number stoke ( spm ):
-
17
-
Table height:
-
680 mm
-
Travels times:
-
≥15 Times/min
-
Power Requirement:
-
220V(380)/3-Phase
-
name:
-
SBSH-8*3200 Hydraulic metal swing shear
-
Weight:
-
according the product
-
Times of stroke:
-
18Per/min
-
Motor power:
-
4KW
Recommend Products
Product Description
Brief introduction
- Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
-As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
- High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
- The machine by the European Union CE certification and ISO quality system certification
Two systems：
1. Hydraulic system:
- Adopt integrated hydraulic control system, more reliable and easy for maintenance . The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.
- Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.
- All seals in cylinder is imported, the most famous brand,good quality and high performance
-Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly
- Adopt integrated hydraulic control system, more reliable and easy for maintenance . The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.
- Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.
- All seals in cylinder is imported, the most famous brand,good quality and high performance
-Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly
2. Cutting control system:
- The cutting times of this machining tool is displayed on a Estun E10 NC and accurately show the cut after the block size and number display.
- The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. T he cut stroke and cut times also can be controlled.
- Light alignment device eases drawing line for cutting, Standard front support sheet frame, A set of standard blades
- System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.
- The cutting times of this machining tool is displayed on a Estun E10 NC and accurately show the cut after the block size and number display.
- The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. T he cut stroke and cut times also can be controlled.
- Light alignment device eases drawing line for cutting, Standard front support sheet frame, A set of standard blades
- System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.
Specification
|
Name
|
Data
|
Unit
|
|
|
Max cutting thickness
|
4
|
mm
|
|
|
Max cutting width
|
2500
|
mm
|
|
|
Table height:
|
680
|
mm
|
|
|
Machine width
|
1250
|
mm
|
|
|
Intensity of the sheared material
|
500
|
N/mm2
|
|
|
Shearing angle
|
1°30"
|
|
|
|
Times of stroke
|
18
|
Per/min
|
|
|
Back gauge range
|
20-600
|
mm
|
|
|
Motor power
|
4
|
Kw
|
|
|
Machine Weight
|
2800
|
kg
|
|
