Autool Em335 Smart Inverter Charging Start Ultra Capacity Batteryless Ultracapacitor Mini Battery Power Booster Jump Starter

Autool Em335 Smart Inverter Charging Start Ultra Capacity Batteryless Ultracapacitor Mini Battery Power Booster Jump Starter

OPERATING INSTRUCTIONS:

1.The device is designed for vehicle emergency start while running out voltage of car battery.

2.OPERATING INFORMATIONS:

3.Cannot start vehicle because of low voltage of car battery, Connects the device to 12V car battery by alligator clamps, red clamp to positive and black clamp to negative. It will transfer all the rest electric power to the device capacities form car battery and indicates CHARGING on device screen. By pressing START to start vehicle while it indicates FULL CHARGE on device within 3-5 minutes. If it does not indicates FULL CHARGE after 3-5 minutes, means the car battery is running out of voltage. In this case, Please charge the device via power bank, DC adapter or other car battery, after it indicates FULL CHARGE on device screen within 3-5 minutes. Then press START button to start vehicle.

4.If the device still can not get it charged for start vehicle from above mentioned operations. Please use backup ways to recharge the device such as car battery, power bank, laptop etc.

START VEHICLE:

1.TUTN ON device and when it indicates FULL CHARGE, connect the clamps correctly with car battery.

2.Press START delays 10S button (Red button), the device will display countdown in 10S. and after 10S, there will be display “TURN ON NOW”. The buzzer will also beep to indicate ready to start engine. During the process of counting down, press the START delays 10S button (Red button) again to cancel the 10S countdown. This design is convenient for one person to operate, there is enough time to enter the driving area after pressing the button.

3.Press START (Green button) to enter the start-up directly. This is convenient for two people to operate at the same time.

4.The device will display “UNDER VOLTAGE, CHARGE PLEASE” if operating under low battery.

This device does not contain a battery, and only has a super capacitor (super capacitor is completely different from ordinary batteries and does not store a lot of power), so this product does not need to be charged with USB in daily life. This device can be used when the car cannot start due to insufficient engine power.

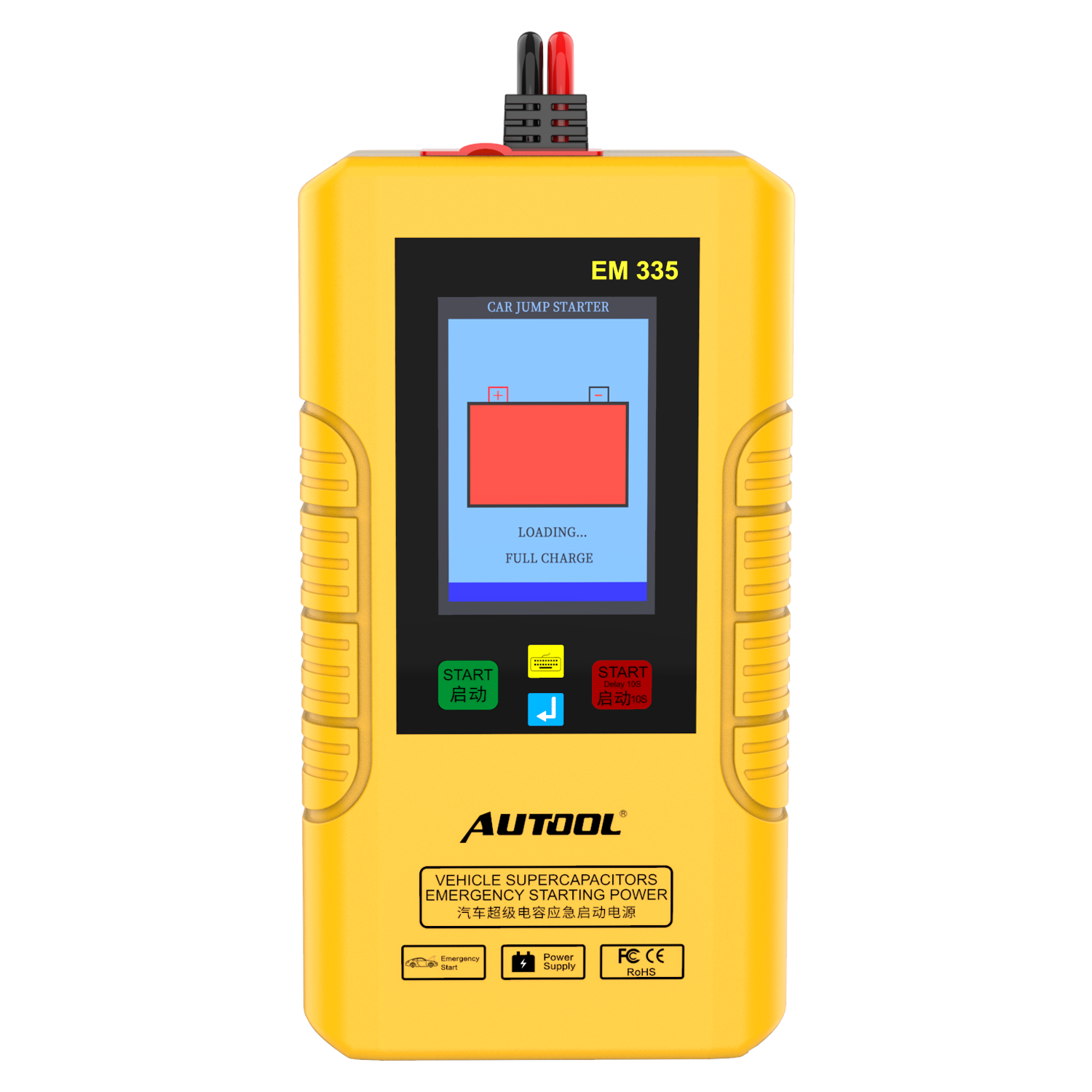

Control panel description:

1)power on/off:

2)The device is fully charged, press START for 10 seconds (red button) Press and hold the start button and the delay 10S (red button) button will be turned off.

3)The device will automatically turn on in the charging state and cannot be turned off.

4)After 30 minutes, the device will automatically shut down without operating and powering.
