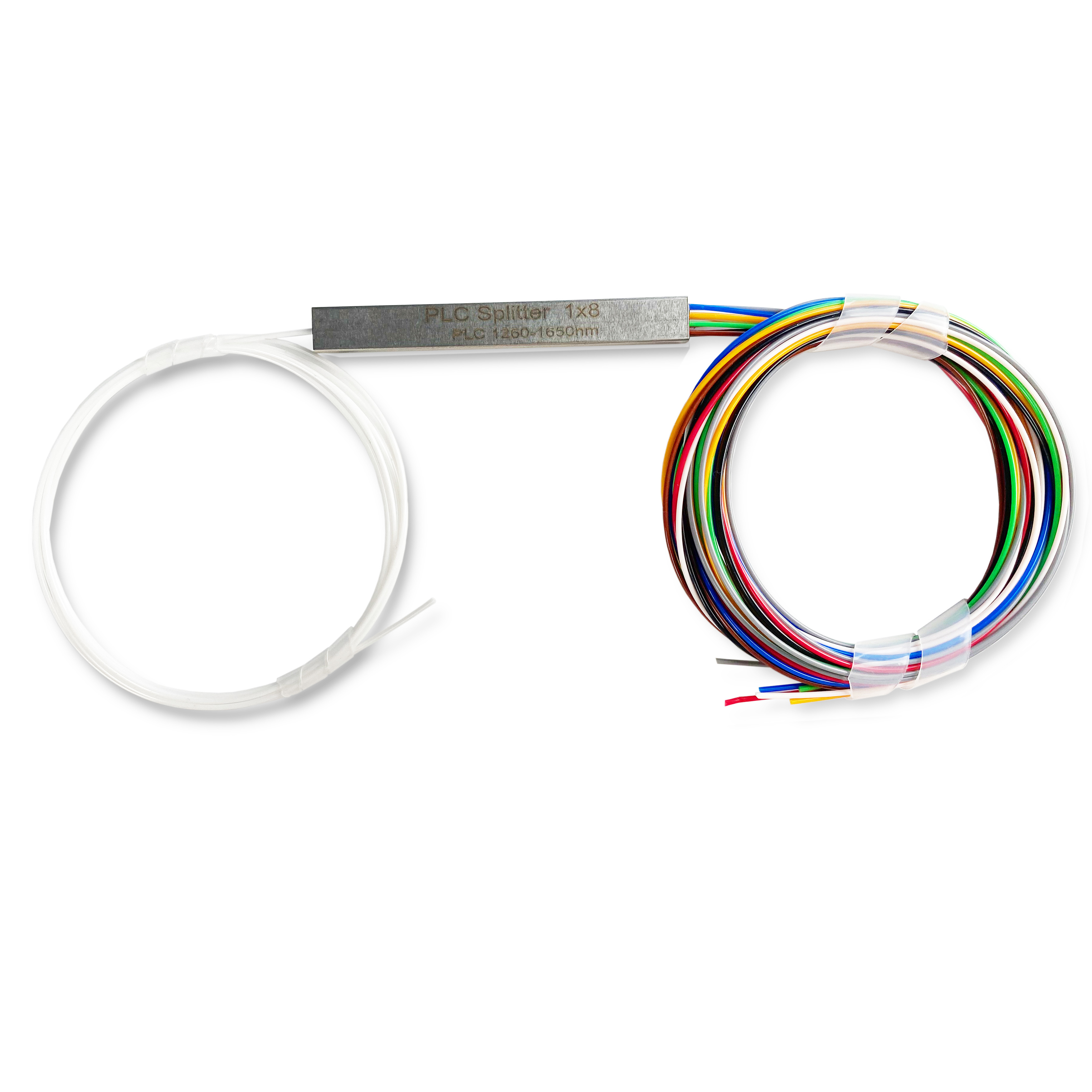

The PLC (Planar Lightwave Circuit) planar waveguide optical splitter is composed of an optical waveguide chip and optical fiber arrays
coupling at both ends. This product uses semiconductor lithography technology to manufacture the optical splitter chip, with
stable process, good output consistency, loss and optical wavelength Irrelevant, good channel uniformity, compact structure and
small size, widely used in optical fiber communication lines of telecom operators, especially FTTX projects.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Use:
-
indoor/outdoor, FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
1*8 fiber optic plc splitter
-
Item:
-
1*8 fiber optic plc splitter
-
Wide Operating Wavelength:
-
1260-1650nm
-
Application:
-
FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution
-
Connector Type:
-
LC SC FC ST
-
Material:
-
PVC;ABS
-
Wide Operating Temperature:
-
-40°C - 85°C
-
No. of Fiber:
-
8.
Quick Details
-
Type:
-
Optical Fibers
-
Model Number:
-
Splitter 1*8
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OEM
-
Use:
-
indoor/outdoor, FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
1*8 fiber optic plc splitter
-
Item:
-
1*8 fiber optic plc splitter
-
Wide Operating Wavelength:
-
1260-1650nm
-
Application:
-
FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution
-
Connector Type:
-
LC SC FC ST
-
Material:
-
PVC;ABS
-
Wide Operating Temperature:
-
-40°C - 85°C
-
No. of Fiber:
-
8.
Product Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
Product application
Applications
* The product has won the bid of China Mobile, China Unicom, China Telecom, and has been widely adopted by various domestic provinces and cities in the broadcasting system.
* Nearly 20 years of professional production experiences, the products comply with the industry standard of the Ministry of Industry and Information Technology "YD/T 2000.1-2014 ", as well as European and American standards such as Bellcore.
* The PLC optical splitter is a full-band type (1260~1650nm), which is not sensitive to wavelength.
* The PLC type optical splitter is compact in structure and small in size, and can be directly installed in places where space is limited.
* It is applied to FTTX network, CATV network and other networking to connect OLT and ONU and realize optical power distribution.
* Nearly 20 years of professional production experiences, the products comply with the industry standard of the Ministry of Industry and Information Technology "YD/T 2000.1-2014 ", as well as European and American standards such as Bellcore.
* The PLC optical splitter is a full-band type (1260~1650nm), which is not sensitive to wavelength.
* The PLC type optical splitter is compact in structure and small in size, and can be directly installed in places where space is limited.
* It is applied to FTTX network, CATV network and other networking to connect OLT and ONU and realize optical power distribution.
Specification
|
Item
|
Unit
|
Technical Data
|
|
Description
|
-
|
PLC-1X32-Steel tude-0.9-SCUPC
|
|
Wavelength
|
nm
|
1260-1650
|
|
Insertion Loss
|
nm
|
≤17.2
|
|
Channel Uniformity
|
dB
|
≤1.0
|
|
Return Loss
|
dB
|
≥50
|
|
Directionality
|
dB
|
≥55
|
|
Polarization Dependent Loss
|
dB
|
≤0.2
|
|
Package Size
|
mm
|
6*20*80
|
|
Fiber Color
|
-
|
Blue Orange Green Brown
|
|
Loose Tube Color
|
-
|
White
|
|
Maximum Power
|
mw
|
300
|
|
Operating Temperature
|
℃
|
-10~75
|
|
Storage Temperature
|
℃
|
-40~85
|
|
Fiber Type
|
-
|
G657A1
|
|
Package Style
|
-
|
1 PC / Blister Box
|
|
Package Information
|
-
|
Inner box：10pcs
Size：420*270*210mm Weight：2.5kg Outer box：40pcs Size：570*430*460mm Weight：10kg |
Packing & Delivery
|
Product Size
|
|
|
|
|
||||
|
Model
|
1*2/4/8
|
1*16
|
1*32
|
1*64
|
||||
|
Bare fiber （250umfiber ）
|
4*4*40
|
4*7*50
|
4*7*50
|
4*12*60
|
||||
|
Mini type（0.9mm loose）
|
4*7*60
|
4*12*60
|
6*20*80
|
6*40*100
|
||||
|
ABS Box（2.0mm）
|
10*20*90
10*80*100 |
18*80*120
|
18*80*120
|
18*115*141
|
||||
|
Slot-Box
|
130*100*25
|
130*100*50
|
130*100*102
|
130*100*206
|
||||
|
Rock Mounted（19’Inch）
|
483*44.5*200
|
483*44.5*200
|
483*44.5*200
|
483*89*200
|
||||
