Quick Details
-
Productivity:
-
20-22m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Weight:
-
2400 kg
-
Dimension(L*W*H):
-
4000*1500*1550mm
-
Product name:
-
concrete pump
-
Concrete pump type:
-
diesel/electric
-
Motor power:
-
45KW
-
Maximum outlet pressure:
-
23mpa
-
Maximum particle size of aggregate:
-
≤20mm
-
Diameter of conveying pipe:
-
100 (80) mm
-
Model:
-
YG-10/YG-20/YG-30/YG-40
-
Application:
-
Construction Engineering
-
After-sales Service:
-
Vedio Technological Support
-
Certification:
-
CE ISO9001
Quick Details
-
Power Type:
-
diesel/electric
-
Max. vertical conveying distance:
-
120M
-
Max. horizontal conveying distance:
-
260M
-
Productivity:
-
20-22m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Weight:
-
2400 kg
-
Dimension(L*W*H):
-
4000*1500*1550mm
-
Product name:
-
concrete pump
-
Concrete pump type:
-
diesel/electric
-
Motor power:
-
45KW
-
Maximum outlet pressure:
-
23mpa
-
Maximum particle size of aggregate:
-
≤20mm
-
Diameter of conveying pipe:
-
100 (80) mm
-
Model:
-
YG-10/YG-20/YG-30/YG-40
-
Application:
-
Construction Engineering
-
After-sales Service:
-
Vedio Technological Support
-
Certification:
-
CE ISO9001
Product Description

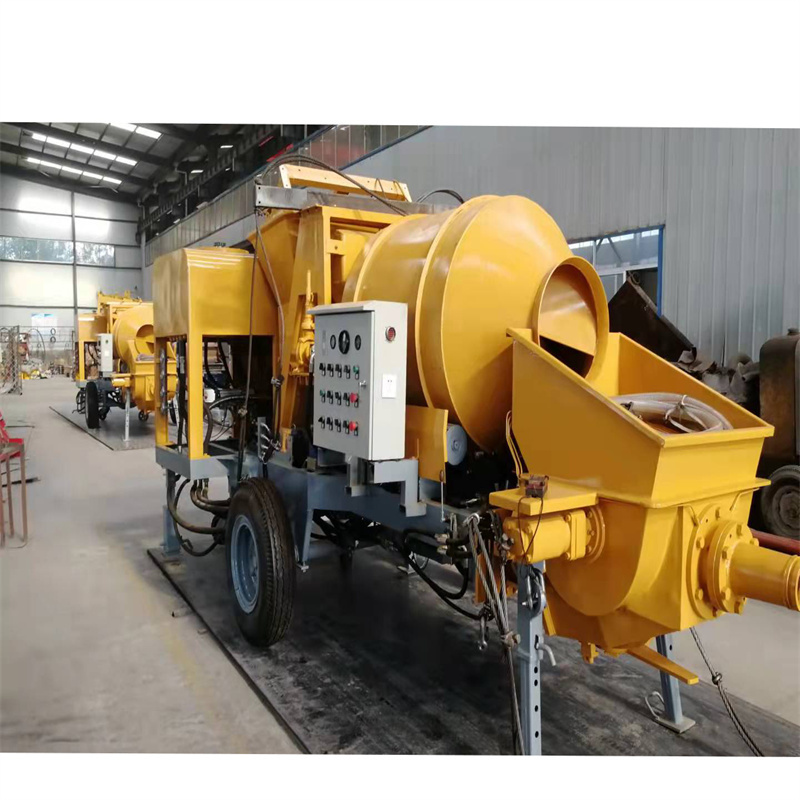

CONCRETE PUMP
Also called trailer mounted concrete pump or concrete trailer pump, is the kind of small concrete pump mounted on the move able trailer to to convey concrete to hard to access flexibly. YG brand new generation concrete pump trailer is specially designed and engineered with latest differential pressure induction control technology to keep reliability, simplify and efficiency.
Specification
|
Model
|
YG-10
|
YG-20
|
YG-30
|
YG-40
|
|
Motor power
|
15kw
|
22KW
|
37KW
|
45KW
|
|
Work efficiency
|
6m³/h
|
12m³/h
|
15-18m³/h
|
20-22m³/h
|
|
Maximum pressure
|
15mpa
|
18mpa/5mpa
|
15/18mpa
|
23mpa
|
|
Aggregate size
|
0.5-1.5cm
|
0.5-2cm
|
≤20mm
|
≤20mm
|
|
Vertical conveying distance
|
20m
|
40m
|
80m
|
120m
|
|
Horizontal conveying distance
|
50 meters
|
80m
|
160m
|
260m
|
|
Diameter of conveying pipe
|
80mm
|
80mm
|
φ80 (100) mm
|
φ100 (80) mm
|
|
Whole machine weight
|
600kg
|
1600kg
|
2200kg
|
2400kg
|
|
Dimensions
|
1800x700x1100mm
|
3400x1200x1600mm
|
3800x1500x1600mm
|
4000x1500x1550mm
|
