Quick Details
-
Voltage:
-
380V/220V
-
Power:
-
3.5kW
-
Dimension(L*W*H):
-
1200width x 1500 height x 2920 depth
-
Weight (KG):
-
1000
-
Filters:
-
12pcs(polyester)
-
Opening size:
-
W800xH2000mm
-
Fan motor power:
-
5.5Kw
-
Fan motor:
-
1pc
Quick Details
-
Machine Type:
-
powder coating booth, Spray Booths
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
COLO
-
Voltage:
-
380V/220V
-
Power:
-
3.5kW
-
Dimension(L*W*H):
-
1200width x 1500 height x 2920 depth
-
Weight (KG):
-
1000
-
Filters:
-
12pcs(polyester)
-
Opening size:
-
W800xH2000mm
-
Fan motor power:
-
5.5Kw
-
Fan motor:
-
1pc
Product Description

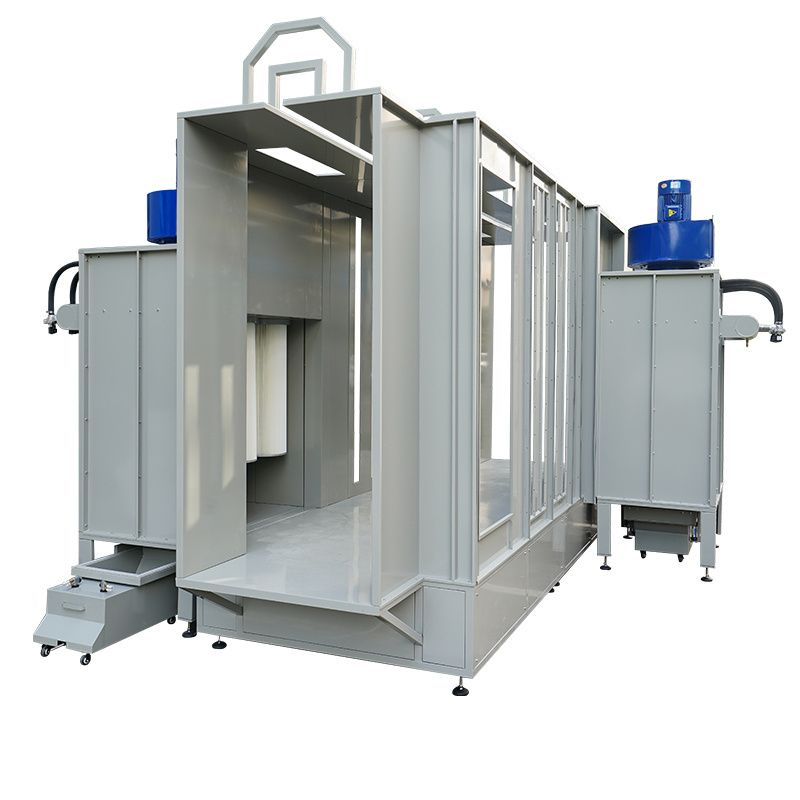

Automatic Powder Coating Spray Booth System for Aluminium Profile
1.In the aluminium powder coating plant we have the Conveyorized Powder Spray Booths are designed with optimal airflow for application efficiency, and are the perfect solution for bringing the advantages of spray-to-waste/reclaim cartridge collector efficiency to your coating process.
2.Our standard powder spray booths COLO-S-0825 control air uniformly through all the booth openings, exhausting air and collecting excess powder through the two-stage filters of the collector modules.
COLO Automatic powder coating Booth Features
1. Parts are pass thru the spray booth,hang on the conveyor system
2. With 2 stations for automatic powder coating reciprocator, as well as 2 openning stations for staff for manual coating.
3.Booth material is duable powder-coated steel, durable, anti-static
1. Parts are pass thru the spray booth,hang on the conveyor system
2. With 2 stations for automatic powder coating reciprocator, as well as 2 openning stations for staff for manual coating.
3.Booth material is duable powder-coated steel, durable, anti-static
4. Widely applicated in automatic powder coating line with single color.
5, Increase powder coating speed and maximize powder recovery rate, ensures clean working environment.
Technical Data
|
Model
|
COLO-0825
|
|
Booth Type
|
drive-thru
|
|
Inner size (mm)
|
800 width x 2000 height x 4000 depth(mm)
|
|
Overall Dimension (mm)
|
1200 width x 2580 height x5000 depth(mm)
|
|
Weight
|
1100kg
|
|
Power Supply
|
5.5kw
|
|
Filters
|
12pcs (polyester)
|
|
Filter hang type
|
easy for change
|
|
Filter cleaning system
|
Pneumatic
|
|
12 month
|
12 month
|
Detailed Pictures
The main structure is dominated by dusting the powder room, filters,recovery systems, cleaning systems, lighting, fans, control component systems, compressed air piping and other components.
Powder Collector Modules
There are Cartridge modules attached directly to the powder booth at both sides, which are compact and requires less factory space..
Catridge Filters
Our cartridge filters are made of high precision filters, which ensures 100% separation of powders from air. Only dust free air exhausted.
These filters has longer life that supportes for your big daily production.
PLC Control
Filter cleaning, fan working, all controlled by PLC, giving you easy and reliable operation process.
Fan
A powerful centrifugal fan sucks the air from the cabin, dragging the remaining powder paint from the application
towards primary filters.
towards primary filters.
Powder Collect Hopper
Filter Cleaning are through pulse-jet controlled by soleniod valves. This pulse-jet cleaing extent filter's life.
Powder Collector Hopper
The filtered powder is then discharged into a hopper trolley beneath the unit which can be manually rolled away for fully emptying, or connected with powder feed center for automatic recycling.
Application
Automatic Powder Coating Booth Applications - Customer Case in Latvia
Perfectly synchronized with conveyor, reciprocator, automatic powder coating guns, centralized powder feed center. Ideal for automatic application of powder coating aluminum profiles, furniture products, metal doors, fence, iron gates, automotive parts, etc.
We have professional technical team design powder coating booths and systems as customer required!
