Quick Details
-
Brand Name:
-
LINO
-
Model Number:
-
LNS-107
-
Max. Current:
-
1.5A
-
Max. Working Pressure:
-
10kpa
-
IP level:
-
IP54
-
Product Name:
-
low cost water air differential pressure switch for HVAC application
-
upper limit of working pressure:
-
10 kpa
-
Installation method:
-
vertical installation
-
Protection level:
-
IP54 (with shell)
-
Operating temperature:
-
-40℃~+85℃
-
Electrical interface:
-
AMP connector or screw terminal
-
Membrane material:
-
silicon
-
Switching capacity:
-
1.5A, (0.4A)/250VAC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250v
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
LINO
-
Model Number:
-
LNS-107
-
Max. Current:
-
1.5A
-
Max. Working Pressure:
-
10kpa
-
IP level:
-
IP54
-
Product Name:
-
low cost water air differential pressure switch for HVAC application
-
upper limit of working pressure:
-
10 kpa
-
Installation method:
-
vertical installation
-
Protection level:
-
IP54 (with shell)
-
Operating temperature:
-
-40℃~+85℃
-
Electrical interface:
-
AMP connector or screw terminal
-
Membrane material:
-
silicon
-
Switching capacity:
-
1.5A, (0.4A)/250VAC

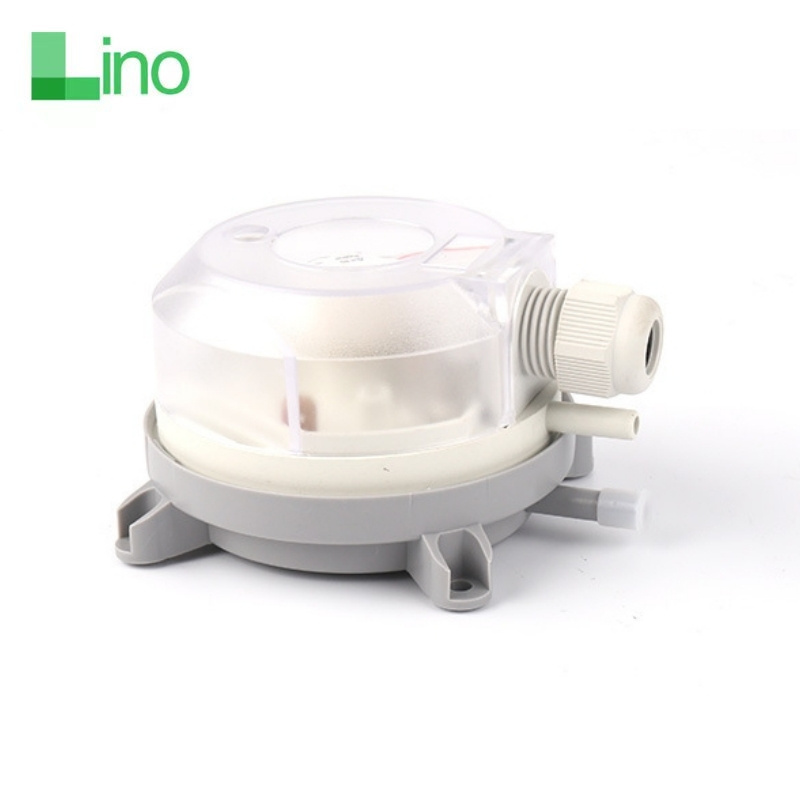

LINO LNS-107 low cost water air differential pressure switch for HVAC application is an adjustable differential pressure switch capable of detecting miniscule changes in pressure due to the size and proven design. The switch set point or switching point can be field adjustable without the need of a manometer by simply using the adjust ment knob and the built in calibrated visual scale. This switch is equipped a clear cover that not only protects the adjustment knob to be move involuntary but also provides class IP54 protection.
|
|
|
| Product name | LINO LNS-107 low cost water air differential pressure switch for HVAC application |
| Brand | Lino |
| Medium | Air, non-flammable or non-hazardous gases |
|
upper limit of working pressure |
10KPA |
|
Installation method |
vertical installation |
|
Protection level |
IP54 (with shell) |
|
Operating temperature |
-40℃~+85℃ |
|
Electrical interface |
AMP connector or screw terminal |
|
Membrane material |
silicon |
|
Switching capacity |
1.5A, (0.4A)/250VAC |
|
Matching air pipe specifications |
8*5PU pipe |
|
Order model |
Pressure range |
Pressure difference when switching (average value) |
|
20-200 |
20-200Pa |
10Pa |
|
20-300 |
20-300Pa |
10 Pa |
|
30-300 |
30-300Pa |
10 Pa |
|
50-500 |
50-500Pa |
20Pa |
|
100-1000 |
100-1000Pa |
50Pa |
|
200-1000 |
200-1000Pa |
100Pa |
|
500-2000 |
500-2000Pa |
125Pa |
|
500-2500 |
500-2500Pa |
150Pa |
|
1000-5000 |
1000-5000Pa |
250Pa |
