Quick Details
-
Brand Name:
-
Viewbest
-
Model Number:
-
VB-W302-01
-
Technology:
-
NetWork
-
Lens:
-
3x optical zoom
-
Feature:
-
Auto tracking
-
Auto focus:
-
Support
-
Video System:
-
1920x1080p / 30fps
-
S/N Rate:
-
>48dB
-
White Balance:
-
Auto / Manual
-
Package:
-
25 x16 x11cm
-
Suitable for:
-
Central academy government school college meeting camera
Quick Details
-
Type:
-
Network Conference System, Video Conference System
-
Function:
-
Voting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Viewbest
-
Model Number:
-
VB-W302-01
-
Technology:
-
NetWork
-
Lens:
-
3x optical zoom
-
Feature:
-
Auto tracking
-
Auto focus:
-
Support
-
Video System:
-
1920x1080p / 30fps
-
S/N Rate:
-
>48dB
-
White Balance:
-
Auto / Manual
-
Package:
-
25 x16 x11cm
-
Suitable for:
-
Central academy government school college meeting camera

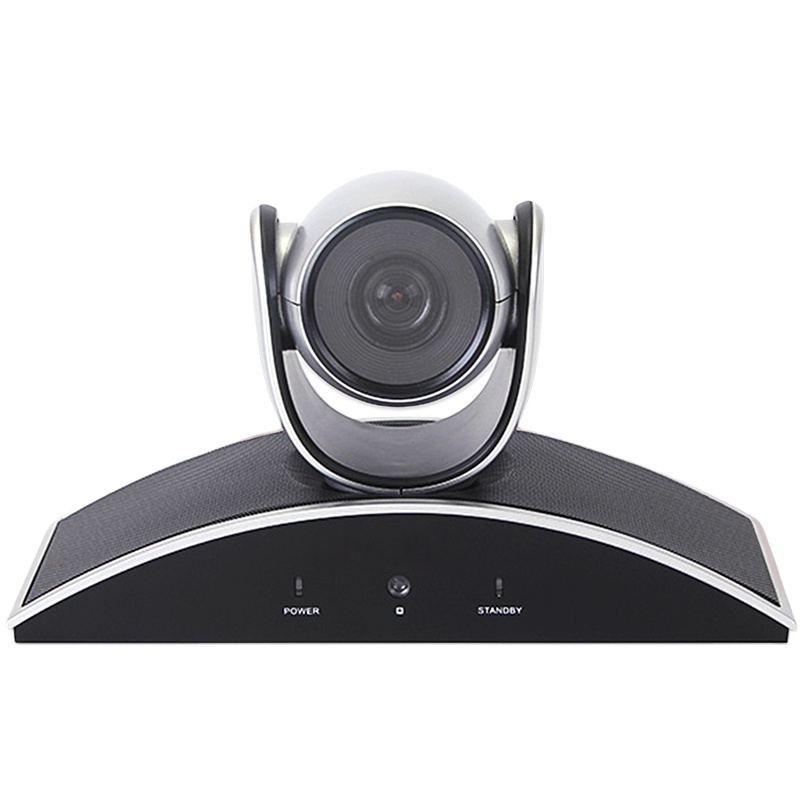

Full HD 3X zoom HD Video Conferencing Camera for youtube skype google webcam
Product Description
|
Product No.
|
VB-W302-01
|
|
Image Sensor
|
1/2.7 inch HD Color CMOS
|
|
Effective pixel
|
2.1 mega pixel(16:9)
|
|
Horizontal Resolution
|
1080P30/25, 720P30/25
|
|
Signal standard
|
NTSC/PAL
|
|
Zoom
|
3x optical zoom
|
|
Focal length
|
F=3.0mm(wide)-10.0(tele)
|
|
Horizontal Angle
|
Near-end 128°~Far-end 37°
|
|
Gain control
|
Auto/manual
|
|
Focus
|
Auto/manual
|
|
SNR ratio
|
≥50dB
|
|
Shutter speed
|
8 to 1/10000s (auto)
|
|
Preset position
|
IR remote control supports 9 presets,
PELCO Protocol supports 256 presets |
|
Pan/Tilt movement range
|
Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S)
|
|
Control terminal
|
RS-232, RS485
|
|
Control Protocol
|
VISCA, PELCO-D, PELCO-P (RS-232, RS485)
|
|
Video output
|
USB
|
|
Video Compression Format
|
YUV, MJPEG, H.264
|
|
Noise Reduction
|
2D/3D
|
|
Work temperature
|
-10°C-~50°C
|
|
Storage temperature
|
-20°C~60°C
|
|
Baud rate
|
2400/4800/9600bps
|
|
Decoder
|
Built-in
|
|
Address set
|
1~256
|
|
Installation
|
Support desktop, Tripod, Wall mount and Ceiling mount
|
|
Power supply
|
DC12V/ 2A
|
|
Power consumption
|
12 W
|
|
Net weight/Gross weight
|
1.5kg/2.85g
|
|
Dimension(LXWXH)
|
260*175*180 mm /296*255*218mm (before / after packing)
|
|
Accessories
|
DC 12V Power adaptor, IR remote control, Manual, RS232 cable, USB2.0 cable, Ceiling brackets & screws.
|
1.Main features of the Live streaming camera:
|
USB2.0
|
HD1080P
|
2.1 mega pixel
|
|
3x optical zoom
|
Wide angle 120°,Pan: 355°
|
RS-232,RS-422,RS-485,
IR remote control |
Related Products
Product packaging
1.We have samples in stock,same day shipping. For big orders we ship within 3-7 business days.
2.We can ship to you by DHL/FEDEX/UPS/TNT/EMS or other shipping way as your instruction with fastest delivery ,cheapest price in
the safe way.
2.We can ship to you by DHL/FEDEX/UPS/TNT/EMS or other shipping way as your instruction with fastest delivery ,cheapest price in
the safe way.
Company Introduction
Shenzhen Viewbest Tech Co., Ltd. was established in 2000. We are a professional manufacture of CCTV cameras. We have 16 years engaged in the camera production and research and development, have special engineer is responsible for the development of products and the camera effect of debugging, some customized products, products to meet different customer needs.
Our company's dignity is meeting customers' requirements. We will make great efforts to develop new and top-quality products, meet our customers' special requirements for the research and development of the products and provide you with a perfect service system consisting of pre-sale, on-sale and after-sale services.
We sell CCTV cameras with our own brand of "ViewBest", but we always welcome you to place OEM/ODM orders. We are always looking forward to long-term and mutually beneficial business relationships, and we hope to grow up together with our customers.
Certifications
Why Choose Us
1. The MOQ is 1 unit.
2. We accept OEM, ODM orders.
3.We ship the sample order out as soon as we receive the payment.
4. 1 years warranty time. Low Repair Rate is our best reward during the past days.
5. After Sale System which makes to solve the problem quickly once met problems.
6. 13 years professional video conference supplier with superior quality & competitive prices.
7. Our QS department checks the video conference camera and speakerphone one by one strictly before sending out.
FAQ
Q:What kind of camera should I use?
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software.For meeting room spaces, we have video conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.
Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.
Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.
Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HD-SDI,DVI,YPBPR and CVBS Video output.
Q:How many time zoom?
A:Support fixed focus, 3X 10X, 20X, 30X optical zoom.
Q:How to control this Camera?
A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
