- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WORLDS
-
Dimension(L*W*H):
-
1980*1580*1220mm
-
Weight (KG):
-
430 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
60W/80W/100W/130W/150W
-
Laser tube:
-
Reci EFR CDWJ YONGLI
-
Laser tube type:
-
Sealed CO2 Glass Tube
-
Power supply:
-
AC110-220V/50-60HZ(Custom Made)
-
Working area:
-
1300*900mm/1200mm*900mm
-
Model:
-
1290/1390/1410/1610/1810
-
Control System:
-
Ruida 6445G Control System
-
Keywords:
-
Laser Engraving Cutting Machine
Quick Details
-
Engraving Area:
-
1300mm*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-500mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WORLDS
-
Dimension(L*W*H):
-
1980*1580*1220mm
-
Weight (KG):
-
430 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
60W/80W/100W/130W/150W
-
Laser tube:
-
Reci EFR CDWJ YONGLI
-
Laser tube type:
-
Sealed CO2 Glass Tube
-
Power supply:
-
AC110-220V/50-60HZ(Custom Made)
-
Working area:
-
1300*900mm/1200mm*900mm
-
Model:
-
1290/1390/1410/1610/1810
-
Control System:
-
Ruida 6445G Control System
-
Keywords:
-
Laser Engraving Cutting Machine
We are WORLDS LASER from Shan Dong China. We’re specialized in the production of laser machines. We can provide OEM Laser services for distributors and agents worldwide. We are sincerely looking forward to cooperate with friends all over the world and we will provide you a best price and a best quality.
Contact me on WhatsApp /WeChat : +0086 1526585 9811
As a company that has been operating in the laser industry for many years, we can provide all certificates and documents for import and export, including CE, FDA, ISO, etc. Please rest assured that we will provide the most perfect machines and services.
Believe me, you will have a perfect shopping experience. The complete set of files and videos will help you operate and use the machine, and I will provide 7 * 24 after-sales service to use Anydesk or Teamviewer on your computer to help you advance your work.

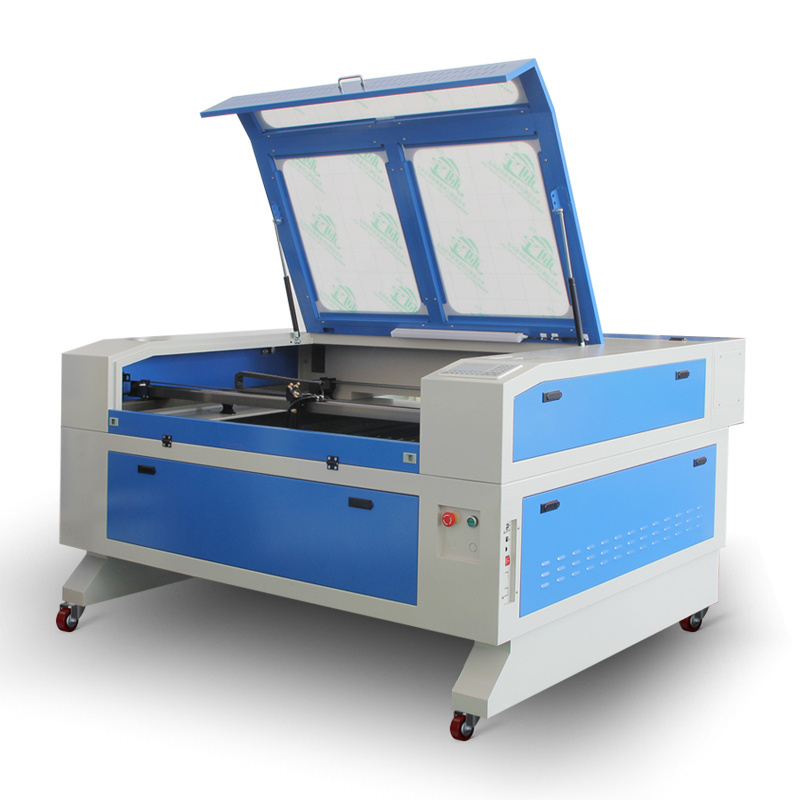

1-WD-1390 Co2 laser engraving cutting machine’s equipped with enclosed laser tube, three-wire straight rail, RUIDA or TROCEN control system, Industrial laser head, high power stepping motor.
2-This machine is equipped with RUIDA Control System,supports CorelDraw and Auto CAD and other advance software. It must connect to computer with USB cable when you change the settings of files. You can transfer the file with USB memory stick to the machine, or download it to the machine directly with USB cable from computer. The machine front and back doors can open to accommodate larger materials.
2-This machine is equipped with RUIDA Control System,supports CorelDraw and Auto CAD and other advance software. It must connect to computer with USB cable when you change the settings of files. You can transfer the file with USB memory stick to the machine, or download it to the machine directly with USB cable from computer. The machine front and back doors can open to accommodate larger materials.
3-This Laser engraving machine uses blocking design, easy to install and adjust,the materials can put into from the front and
behind, it can Exhaust the smoke on the above and below of the laser machine.
4-It uses offline control system, English LCD, USB interface, support CAD and CorelDraw output directly.
5-This machine is equipped with high precision up and down working table, or we call it electrical Z axis, can be lifted by motor.
behind, it can Exhaust the smoke on the above and below of the laser machine.
4-It uses offline control system, English LCD, USB interface, support CAD and CorelDraw output directly.
5-This machine is equipped with high precision up and down working table, or we call it electrical Z axis, can be lifted by motor.
Sample
The engraving area can be 1300*900mm. It is used to engrave on wood products, paper, leather, cloth, plexiglass, epoxy resin, acrylic, wool, plastic, chaff, porcelain, crystal, jade, bamboo products, etc. It is the most suitable engraving cutting machine in industries such as advertisement, gifts,shoes,toys and etc. WD-1390 engraving cutting machine supports multiple graphic formats, such as PLT, DXW, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
Specification
|
Item
|
Value
|
|
Application
|
Laser Engraving
|
|
Applicable Material
|
Acrylic, Crytal, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Wood
|
|
Engraving Area
|
1300mm*900mm
|
|
Laser Type
|
CO2
|
|
Engraving Speed
|
0-500mm/s
|
|
Graphic Format Supported
|
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
|
|
Condition
|
New
|
|
CNC or Not
|
NO
|
|
Cooling Mode
|
WATER COOLING
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
WORLDS
|
|
Dimension(L*W*H)
|
1980*1580*1220mm
|
|
Laser Source Brand
|
RECI
|
|
Servo Motor Brand
|
Leadshine
|
|
Guiderail Brand
|
HIWIN
|
|
Control System Brand
|
RuiDa
|
|
Optical Lens Brand
|
Wavelength
|
|
Weight (KG)
|
430KG
|
|
Key Selling Points
|
High-accuracy
|
|
Warranty
|
1 Year
|
|
Applicable Industries
|
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
6 Months
|
|
Mode of Operation
|
continuous wave
|
|
Configuration
|
gantry type
|
|
Feature
|
Water-cooled
|
|
Product name
|
C02 Laser Engraving Cutting Machine
|
|
Function
|
Cutting Engraving Non-metal Materials
|
|
Laser power
|
60W/80W/100W/130W/150W
|
|
Laser tube
|
Reci EFR CDWJ YONGLI
|
|
Laser tube type
|
Sealed CO2 Glass Tube
|
|
Power supply
|
AC110-220V/50-60HZ(Custom Made)
|
|
Working area
|
1300*900mm/1200mm*900mm
|
|
Model
|
1290/1390/1410/1610/1810
|
|
Control System
|
Ruida 6445G Control System
|
|
Keywords
|
Laser Engraving Cutting Machine
|
Accessories
Details Images
Product Description
Packing & Delivery
(1)
Inner
: plastic stretch film and white foam. Plastic stretch film winding equipment for Moisture Resistance. White Foam filling is used to tighten the laser.
(2)
Middle
: small pieces of wood and screws.
(3)
Outside
: standard export wooden case.
Finally, label the destination country and product number.
