Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yingjiao
-
Model Number:
-
YS50B
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
0.1-5A
-
Product Name:
-
12V Access Control Power Supply
-
Model:
-
Power Distribution Boxes
-
Size:
-
210*160*85mm
-
N.W.:
-
842g
-
Warranty:
-
3- 5 Years
Quick Details
-
Output Power:
-
60W max
-
Input Voltage:
-
90-264V AC
-
Output Voltage:
-
12V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yingjiao
-
Model Number:
-
YS50B
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
0.1-5A
-
Product Name:
-
12V Access Control Power Supply
-
Model:
-
Power Distribution Boxes
-
Size:
-
210*160*85mm
-
N.W.:
-
842g
-
Warranty:
-
3- 5 Years

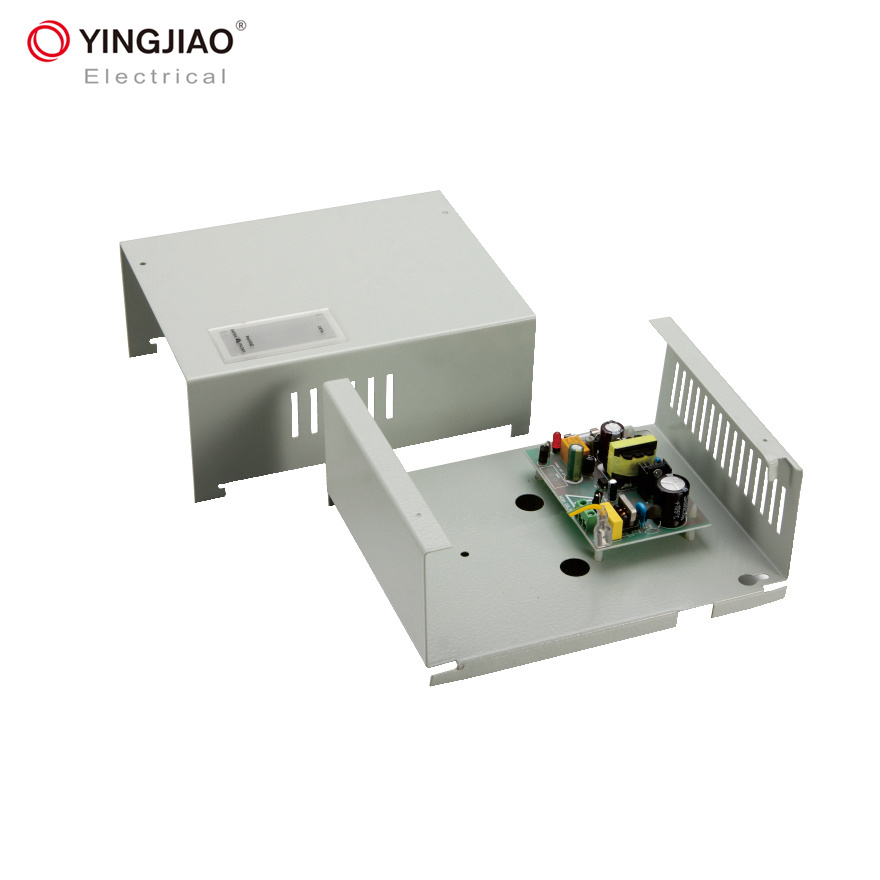

2019 Manufacture Price 12V Access Control Power Supply 12V 5A With Battery Backup Charging
| Model: | YS50B |
| Power: | 60W max. |
| Input: | 90-264VAC 50/60Hz |
| Output Voltage: | 12-24V |
| Output Current: | 0.1-5A |
| Input current: | A max. |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 25mA Max. at 264VAC input |
| No Load Power Consumption : | <0.15W |
| Protections: | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input Plug: |
EU,US,UK,AU input cable etc.
type according to customer's choice |
| Certificates and approvals: | GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH |
| EMI EMISSION: |
Radiation Test&Conduction Test: EN 55022/FCC Part 15
Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: |
ESD Test:EN 61000-4-2
RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25℃ ambient |
| Life: | 3-5 years alternative |
| Dimension: | 210*160*85mm |
| Weight: | 842g |
| Packing: | PCS/CTN,cm |
Details:
| Model: | YS50B-1202000 | YS50B-1203000 | YS50B-1205000 | YS50B-2402000 |
| DC Voltage: | 12V | 12V | 12V | 24V |
| Rated Current: | 2A | 3A | 5A | 2A |
| Current Range: | 0-2A | 0-3A | 0-5A | 0-2A |
| Rated Power: | 24W | 36W | 60W | 48W |
| Ripple & Noise(max.): | 100mVp-p | 130mVp-p | 180mVp-p | 200mVp-p |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% |
| Setup,Rise,Hold up time: | 3 second max./40 MS max./5 MS max. at 100VAC input and output max. load. | |||
