Quick Details
-
Screw Speed (rpm):
-
75 rpm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZFSJ
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
31mX4.5mX3m
-
Weight:
-
6000kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Type:
-
Pipe Production Line
-
Production speed:
-
50M/MIN
-
EXTRUDING CAPACITY:
-
120KGS/H
-
PIPE DIAMETER:
-
12MM, 16MM, 20MM
-
PIPE THICKNESS:
-
0.5-1.2MM
-
FLOW RATE:
-
2-4LITERS/HOUR
-
CONTAINER TO LOAD:
-
ONE 40 FEET CONTIANER
-
PACKAGE:
-
WOODEN BOX
-
Warranty service:
-
1 year for free
-
Certification:
-
ISO and CE
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw diameter (mm):
-
70
-
Screw Speed (rpm):
-
75 rpm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZFSJ
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
31mX4.5mX3m
-
Weight:
-
6000kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Type:
-
Pipe Production Line
-
Production speed:
-
50M/MIN
-
EXTRUDING CAPACITY:
-
120KGS/H
-
PIPE DIAMETER:
-
12MM, 16MM, 20MM
-
PIPE THICKNESS:
-
0.5-1.2MM
-
FLOW RATE:
-
2-4LITERS/HOUR
-
CONTAINER TO LOAD:
-
ONE 40 FEET CONTIANER
-
PACKAGE:
-
WOODEN BOX
-
Warranty service:
-
1 year for free
-
Certification:
-
ISO and CE

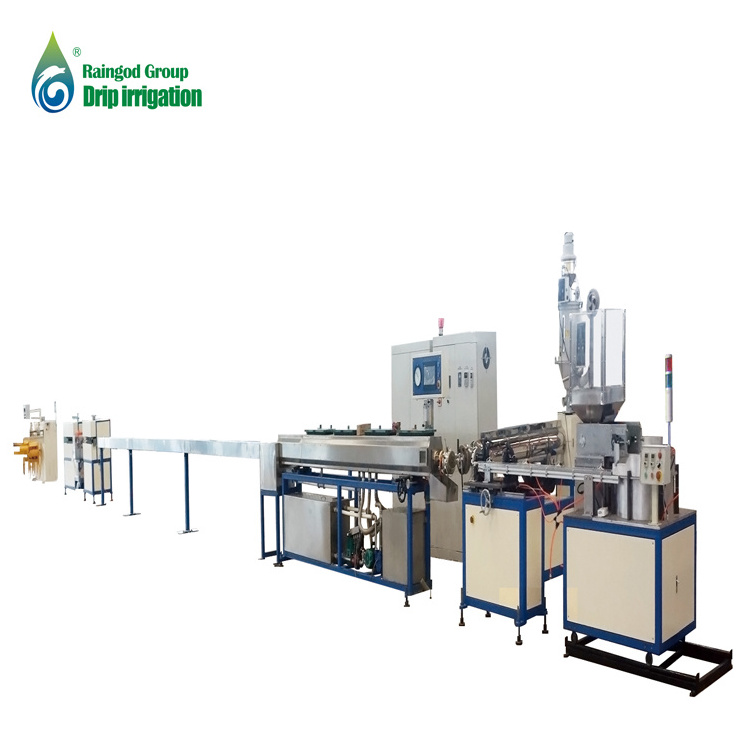

Mosaic column round emitter type agriculture water saving drip irrigation pipe making machine
Specifications
Model: SJNX-70-YZ
Production speed: 50m/min
Space: 200mm-1000mm
Drip irrigation pipe making machine and winder
Machine parameters
|
No. |
Item |
Technical parameter |
|
|
SJNX-70-YZ SJNX-90-YZ |
|||
|
1 |
Specification of final products |
φ12mm,φ16mm,φ20mm |
|
|
2 |
Wall thickness of final product |
0.5~1.2mm |
0.5~1.2mm |
|
3 |
Dripper distance |
≥200mm |
≥200mm |
|
4 |
Production speed |
50m/min |
50m/min |
|
5 |
Main driving power |
45kw |
55kw |
|
6 |
Max. extruding capacity |
120kg/h |
158kg/h |
|
7 |
Heating power |
30kw |
38kw |
|
8 |
Filter changing way |
Durable filter (patent) |
Durable filter (patent) |
|
9 |
Total dripper supply power |
4.06kw |
4.06kw |
|
10 |
Emitter supplying speed |
≤180pcs/min |
≤180pcs/min |
|
11 |
Tractor driving power |
3kw |
3kw |
|
12 |
Hole drilling way |
Mechanical |
Mechanical |
|
13 |
Hole drilling speed |
≤180pcs/min |
≤180pcs/min |
|
14 |
Winding driver |
12N.m×2 |
12N.m×2 |
|
15 |
Water consumption |
3m³/h |
3m³/h |
|
16 |
Air consumption |
2m³/min |
2m³/min |
|
17 |
Installation power |
100kw |
120kw |
|
18 |
Overall dimension (L×W×H) |
31m×4.5m×3m |
31m×5m×3m |
Pipe size
Diameter: 12mm, 16mm, 20mm
Thickness: 0.5-1.2mm
Space:200-1000mm
Flow rate: 2-4Liter/Hour
Product of tape and put into use
Dripper and mold
PACKING
DELIVERY
Customer show
