Quick Details
-
Range of Spindle Speed(r.p.m):
-
40 - 1280 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
INTEGRITY
-
Model Number:
-
X6325WT
-
Table Travel (mm):
-
1270/1370X254
-
Year:
-
New
-
Voltage:
-
380/220V
-
Weight (KG):
-
1380
-
Name:
-
Milling Machine
-
Machine Type:
-
Universal Horizontal
-
CNC or Not:
-
Normal Lifting Table Milling Machine
-
Keyword:
-
Milling Machine Manual
-
Color:
-
Customization
-
Function:
-
Milling Drilling Tapping Routing Chamfering
-
Key word:
-
X6325 Turret Milling Machine Fresadoras
Quick Details
-
Table Travel (X) (mm):
-
820-870 mm
-
Table Travel (Y) (mm):
-
420 mm
-
Table Travel (Z) (mm):
-
435 mm
-
Range of Spindle Speed(r.p.m):
-
40 - 1280 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
INTEGRITY
-
Model Number:
-
X6325WT
-
Table Travel (mm):
-
1270/1370X254
-
Year:
-
New
-
Voltage:
-
380/220V
-
Weight (KG):
-
1380
-
Name:
-
Milling Machine
-
Machine Type:
-
Universal Horizontal
-
CNC or Not:
-
Normal Lifting Table Milling Machine
-
Keyword:
-
Milling Machine Manual
-
Color:
-
Customization
-
Function:
-
Milling Drilling Tapping Routing Chamfering
-
Key word:
-
X6325 Turret Milling Machine Fresadoras

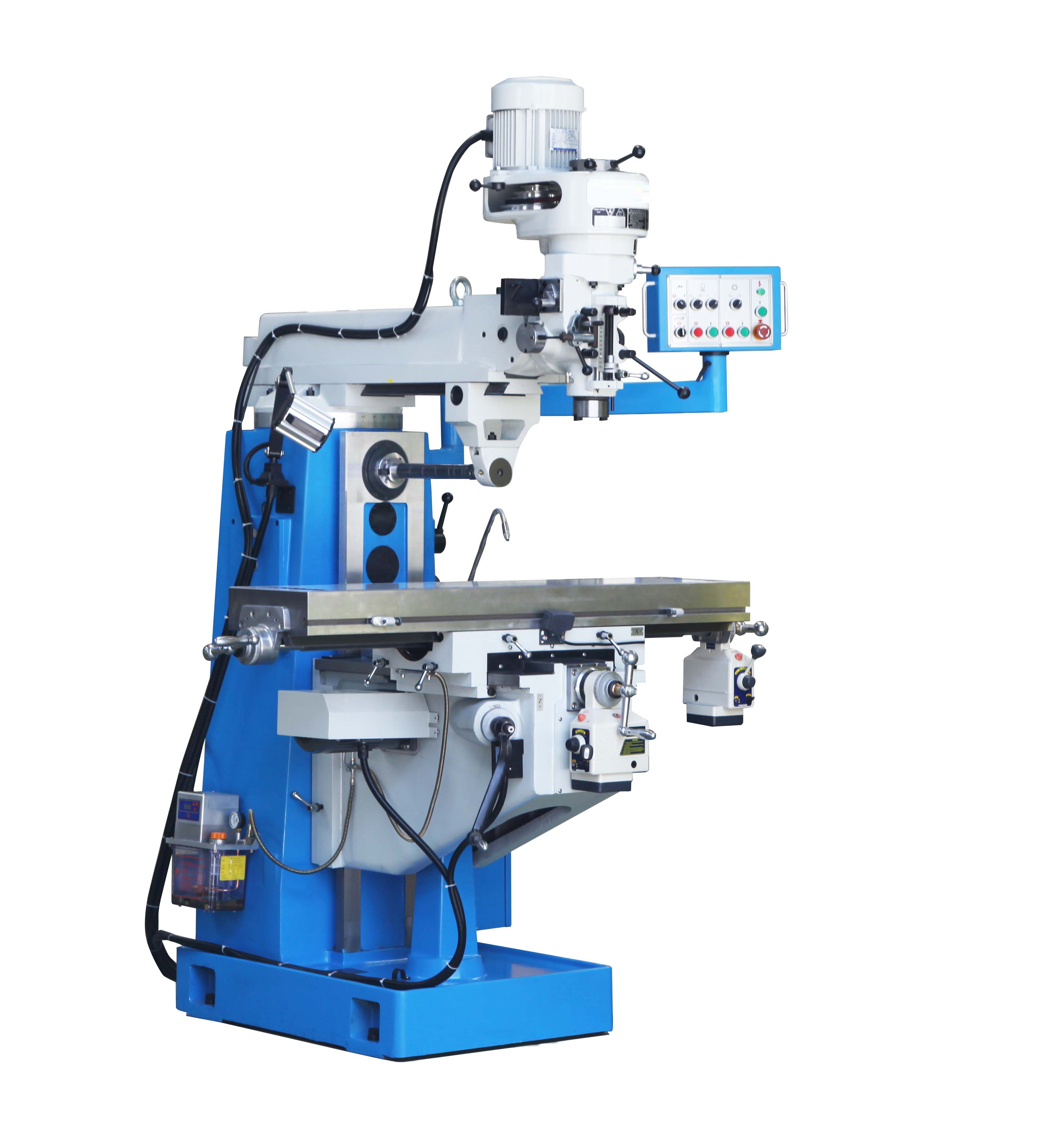

PRODUCT DESCRIPTION
|
Specification
|
unit
|
X6325W
|
|
Table size
|
mm
|
1270x254
|
|
T slots
|
-
|
3/16/65
|
|
Longitudinal travel
|
mm
|
750/850
|
|
Cross travel
|
mm
|
400
|
|
Vertical travel
|
mm
|
400
|
|
Quill travel
|
mm
|
127
|
|
Distance between spindle center and column
|
mm
|
155-635
|
|
Distance between spindle rose and table top
|
mm
|
0-460
|
|
Arm travel
|
mm
|
400
|
|
Milling head tilting
|
-
|
90(left and right) , 45(front and back)
|
|
Spindle taper
|
-
|
R8 NT40(V), NT40(H)
|
|
Spindle speed
|
r/min
|
66-4540(V); 40-1300(H)
|
|
Power of spindle motor
|
kw
|
2.2KW(V); 3KW(H)
|
|
Max. table safety load
|
kg
|
350
|
|
Machine Diamension
|
mm
|
1750X1530X2340
|
|
Net. weight
|
kg
|
1380
|
RECOMMENDED PRODUCT
COUPONS
Q1:How long guarantee period you offer?/ how is warranty?
A1:12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.cost-value replacing parts available beyond thewarranty period.Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customerrequirements(relative cost born by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet differentrequirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more youtrust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6:Our factory is located in Kunming city, Yunnan province, in the southwest of China.
