Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KAIDONG
-
Voltage:
-
220/380V/415/440
-
Dimension(L*W*H):
-
3500*2220*2850mm
-
Weight (KG):
-
4500 kg
-
Product Name:
-

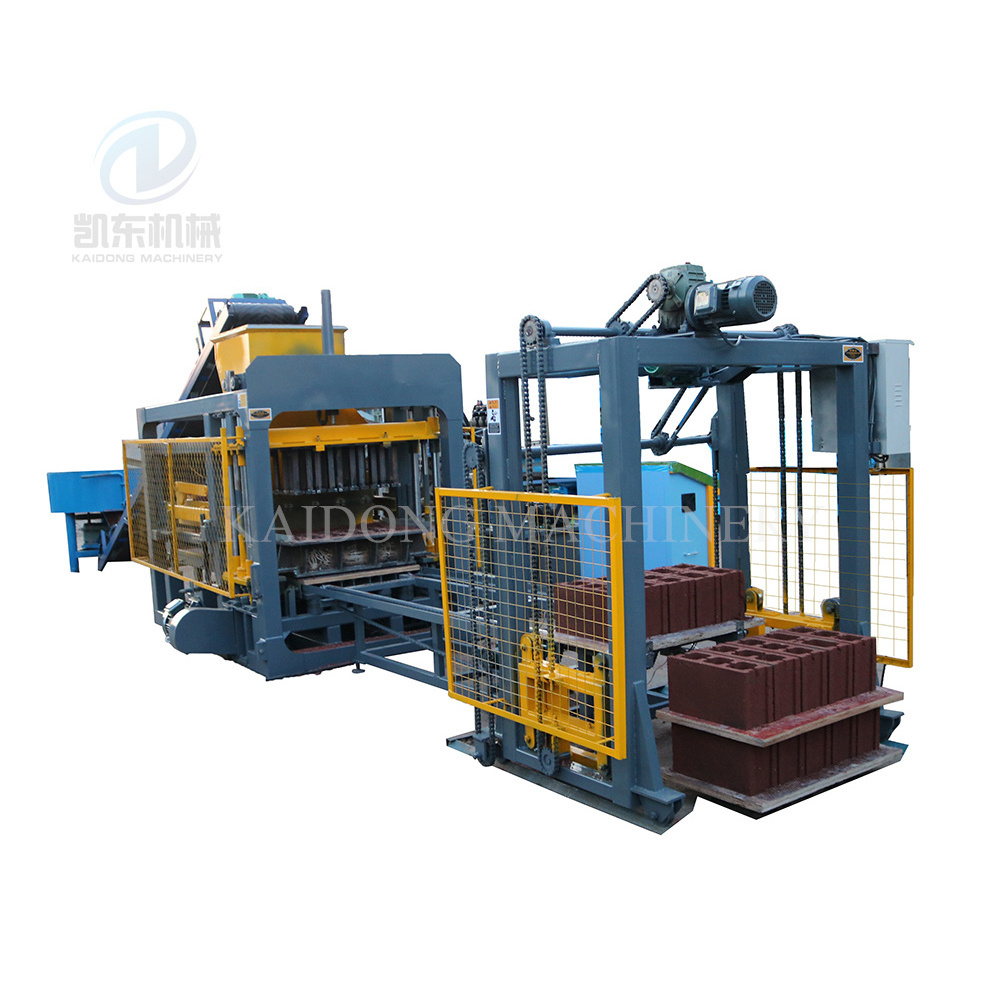

hydraulic brick making machine
-
Block Type:
-
hollow block,solid brick,paver brick,cuberstone
-
Motor:
-
24kw
-
Pallet size:
-
850/900x550x22/25mm
-
Color:
-
customized
-
Vibration force:
-
40-50KN
-
Workers:
-
5
-
Switch:
-
CHNT/Schneider
-
After Warranty Service:
-
Video technical support
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
concrete,cement,sand,crushed stone,fly ash,
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 20000-40000pcs/day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KAIDONG
-
Voltage:
-
220/380V/415/440
-
Dimension(L*W*H):
-
3500*2220*2850mm
-
Weight (KG):
-
4500 kg
-
Product Name:
-
hydraulic brick making machine
-
Block Type:
-
hollow block,solid brick,paver brick,cuberstone
-
Motor:
-
24kw
-
Pallet size:
-
850/900x550x22/25mm
-
Color:
-
customized
-
Vibration force:
-
40-50KN
-
Workers:
-
5
-
Switch:
-
CHNT/Schneider
-
After Warranty Service:
-
Video technical support
Products Display
|
QT4-15B Main machinem Parameters
|
|
|
|
|
|
|||||
|
1
|
Dimension of host machine
|
3700x2100x2300mm
|
6
|
Host machine power
|
22.95KW
|
|||||
|
2
|
Moulding area
|
820x530mm
|
7
|
Vibration force
|
35.5KN
|
|||||
|
3
|
Moulding period
|
20-24s
|
8
|
Mixer model
|
JS500/JQ500
|
|||||
|
4
|
The size of the pallet
|
850x550x25mm
|
9
|
General water Consumption
|
4T/every day
|
|||||
|
5
|
Weight of the host machine
|
4.6
|
10
|
Voltage
|
220/380/440V
|
|||||
|
QT4-15C Main machinem Parameters
|
|
|
|
|
|
|||||
|
1
|
Dimension of host machine
|
3500x2100x2100mm
|
6
|
Host machine power
|
20.75KW
|
|||||
|
2
|
Moulding area
|
820x530mm
|
7
|
Vibration force
|
35.5KN
|
|||||
|
3
|
Moulding period
|
20-24s
|
8
|
Mixer model
|
JS500/JQ500
|
|||||
|
4
|
The size of the pallet
|
850/880x550x22/25mm
|
9
|
General water Consumption
|
4T/every day
|
|||||
|
QT4-15D Main machinem Parameters
|
|
|
|
|
|
|||||
|
1
|
Dimension of host machine
|
3500x2100x2100mm
|
6
|
Host machine power
|
20.75KW
|
|||||
|
2
|
Moulding area
|
820x530mm
|
7
|
Vibration force
|
35.5KN
|
|||||
|
3
|
Moulding period
|
20-24s
|
8
|
Mixer model
|
JS500/JQ500
|
|||||
|
4
|
The size of the pallet
|
850/880x550x22/25mm
|
9
|
General water Consumption
|
4T/every day
|
|||||
