Quick Details
-
Voltage:
-
110v/220v/380v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RIFU
-
Dimension(L*W*H):
-
1130L*700W*1430Hmm
-
Weight:
-
260 KG, 750KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Product name:
-
Tube filling sealing machine
-
Material:
-
304 Stainless Steel
-
Gas source:
-
0.6-0.8(MPa)
-
Filling range:
-
3-30 5-75 30-150(ml)
-
Tube diameter:
-
10-50mm(Can be customized)
-
Tube length:
-
50-200mm(Can be customized)
-
Filling Material:
-
Toothpaste,Ketchup,Mustard
-
Certification:
-
CE
Quick Details
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
110v/220v/380v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RIFU
-
Dimension(L*W*H):
-
1130L*700W*1430Hmm
-
Weight:
-
260 KG, 750KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Product name:
-
Tube filling sealing machine
-
Material:
-
304 Stainless Steel
-
Gas source:
-
0.6-0.8(MPa)
-
Filling range:
-
3-30 5-75 30-150(ml)
-
Tube diameter:
-
10-50mm(Can be customized)
-
Tube length:
-
50-200mm(Can be customized)
-
Filling Material:
-
Toothpaste,Ketchup,Mustard
-
Certification:
-
CE
Product Description

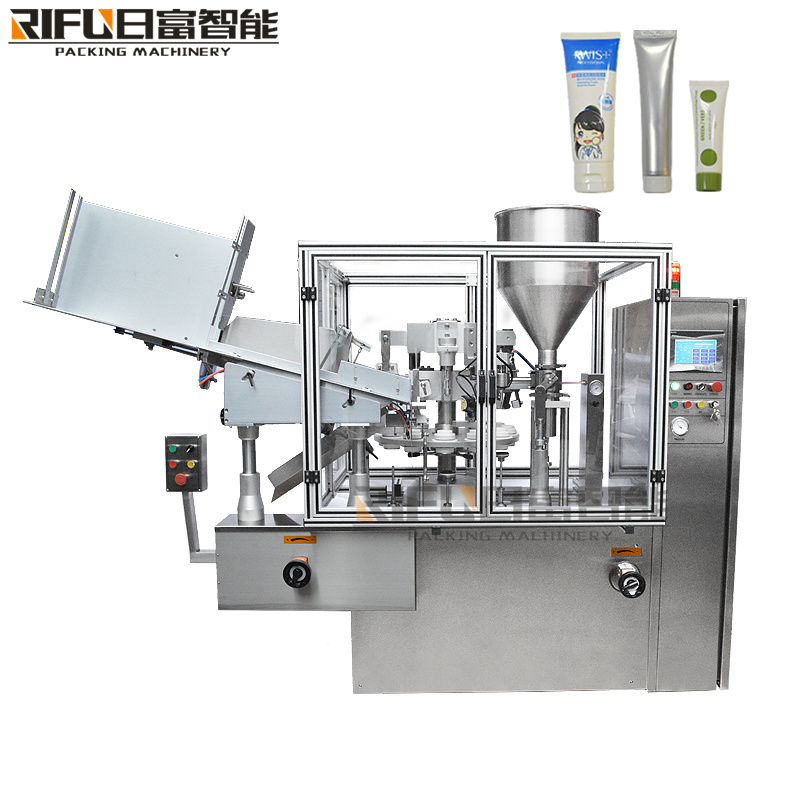

Fully automatic high speed cosmetic cream toothpaste trumarkindia tube filling and sealing machine
The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes . It is widely applied in daily chemical industry, medicine, food, etc.
Feature:
The machine adopts touch screen and PLC control. The automatic tube feeding, automatic positioning and imported rapid high- efficiency heater and highly stable flow meter form the hot air heating system. It has such features as firm sealing, high speed, no damage to the surface at the sealing place, beautiful and neat sealing shape. The machine can be equipped with filling heads of different specifications to meet the filling requirements of different viscosity. The organic glass dust cover is also provided.
Technical Parameter
|
Voltage (V/Hz)
|
|
AC 220V/50HZ 110V/60HZ
|
|
|
|||
|
Power
|
|
4KW
|
|
|
|||
|
Tube diameter
|
|
10-50mm（Can be customized）
|
|
|
|||
|
Tube length
|
|
50-200mm（Can be customized）
|
|
|
|||
|
Measuring accuracy
|
|
±0.5~1%
|
|
|
|||
|
Machine material
|
|
Stainless steel
|
|
|
|||
|
Capacity
|
|
50-60(pcs/min)
|
|
|
|||
|
Outline dimension
|
|
1130L×700W×1900H mm
|
|
|
|||
|
Weight
|
|
750KG
|
|
|
|||
Detailed Images
Loading hopper
Material hopper
Filling nozzle
Sensor
Tube sealing
Tube exiting
Sample
