Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Werner
-
Model Number:
-
CT-5
-
COLOUR:
-
Blue
Quick Details
-
Rated Power:
-
5kw
-
Rated Voltage:
-
230V
-
Frequency:
-
400Hz
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Werner
-
Model Number:
-
CT-5
-
COLOUR:
-
Blue

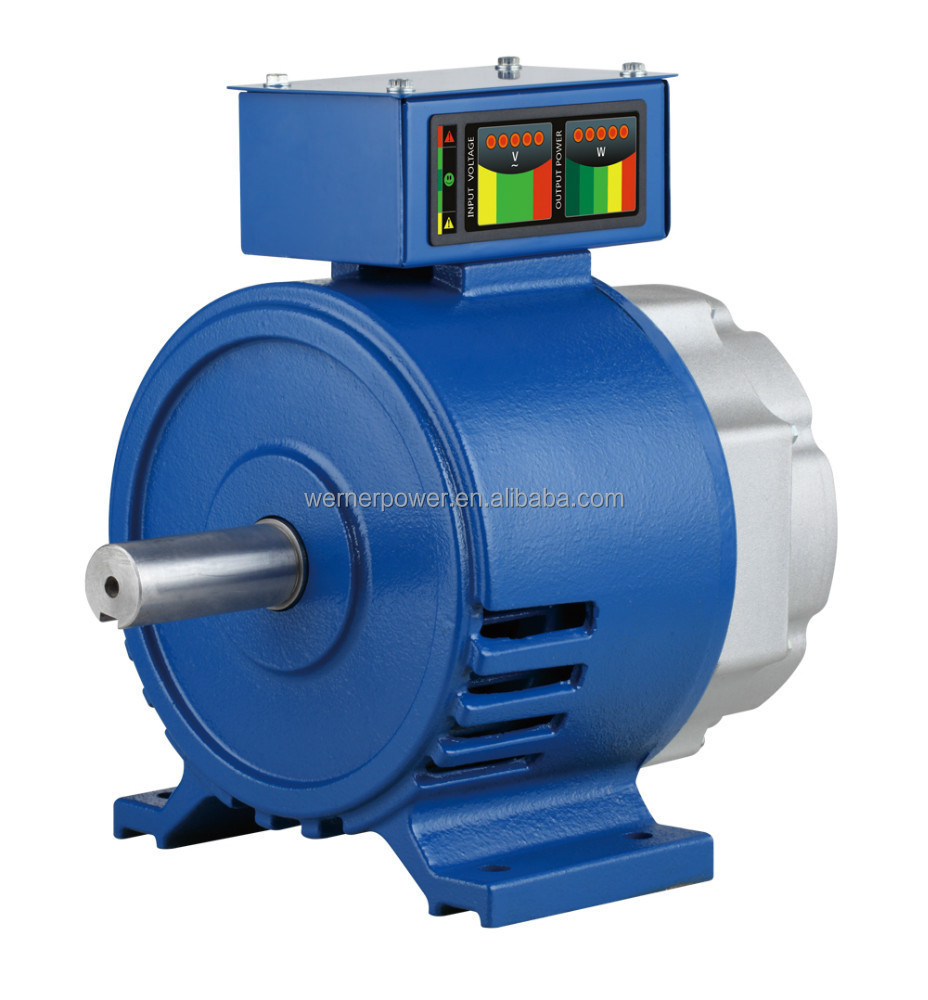

1. Rare earth permanent magnetic for rotor.
2. 100%COPPER wire winding for stator.
3. Brushless and easy maintaince.
4. Digital inverter to insure stable voltage and frequency.
5. Reliable quality, 100% warranty, variable speed but stable frequency and voltage
6.specification:
| Model | CT-1.8 | CT-3 | CT-5 | CT-7.5 | CT-10 |
| Rated voltage | 230V | ||||
| Rated current | 7.8(A) | 13.0(A) | 21.7(A) | 32.6(A) | 43.4(A) |
| Rated power@1800rpm | 1.8(KW) | 3(KW) | 5(KW) | 7.5(KW) | 10(KW) |
| speed | 500-3000rpm | ||||
| Frequency | 50/60(Hz), 200/400(Hz) | ||||
| Brush/Brushless | Brushless | ||||
| Output wave | Pure sine wave,waveform distortion rate ≤ 1.5% | ||||
| Efficiency | ≥ 90% | ||||
| Voltage rate | ±2% | ||||
| Protect Class | IP21 | ||||
| The electronic control | digital inverter | ||||
| Insulation Class | H | ||||
| GW | 20.6(Kg) | 21.8(Kg) | 23.0(Kg) | 47(Kg) | 47(Kg) |
| NW | 20.1(Kg) | 21.3(Kg) | 22.5(Kg) | 42(Kg) | 42(Kg) |
| Foot | 182×90(MM) | 182×90(MM) | 182×90(MM) | 232×108(MM) | 232×108(MM) |
| Height of center | 126(MM) | 126(MM) | 126(MM) | 146(MM) | 146(MM) |
| Screw | M12 | M12 | M12 | M12 | M12 |
| Axis diameter | 32(MM) | 32(MM) | 32(MM) | 38(MM) | 38(MM) |
| Dimension | 320*230*320 ( MM) |
370*290*372
( MM) |
|||
| Marks | PMA+INVERTER=2 in 1 complete set,speed and voltage protect for selection | ||||
100% copper wire
Digital Inverter
Indication Panel
Design and invent patent
