Quick Details
-
Brand Name:
-
DELIXI
-
Model Number:
-
E100 E102
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
DEPEND
-
Weight:
-
DEPEND
-
Product name:
-
DELIXI E100 E102 0.4-22KW 11kw Pumps And Frequency Inverters
-
Power:
-
0.4~22KW
-
Protection:
-
IP21
-
Warranty:
-
18month
-
Certificate:
-
ISO 9001/CE/IEC/TUV
-
V/F curve:
-
Linear Square root Any V/F
-
Brake Unit:
-
Optional
-
Accessories:
-
Multi-Functional Expansion Card, E102-485 communication card
-
Output:
-
single/three phase
Quick Details
-
Output Current:
-
Load
-
Customized support:
-
OEM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DELIXI
-
Model Number:
-
E100 E102
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
DEPEND
-
Weight:
-
DEPEND
-
Product name:
-
DELIXI E100 E102 0.4-22KW 11kw Pumps And Frequency Inverters
-
Power:
-
0.4~22KW
-
Protection:
-
IP21
-
Warranty:
-
18month
-
Certificate:
-
ISO 9001/CE/IEC/TUV
-
V/F curve:
-
Linear Square root Any V/F
-
Brake Unit:
-
Optional
-
Accessories:
-
Multi-Functional Expansion Card, E102-485 communication card
-
Output:
-
single/three phase

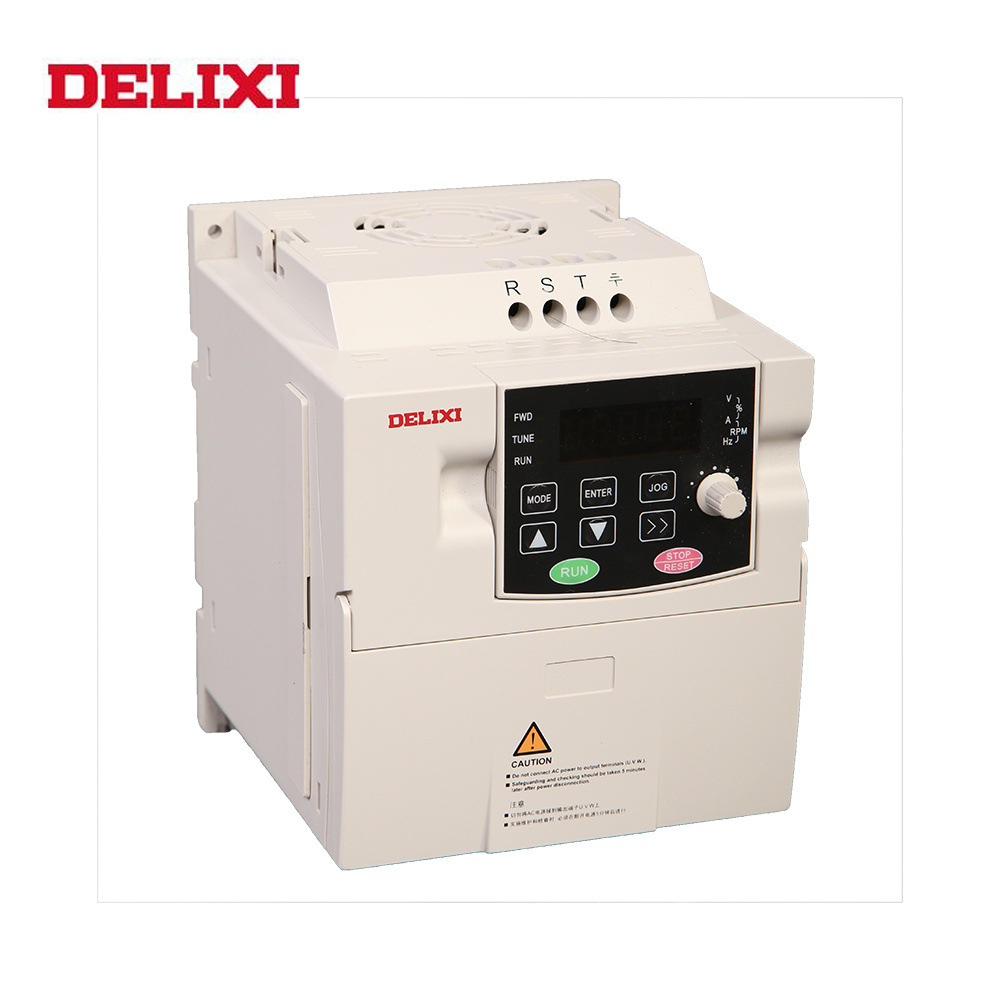

1.Pictures of
DELIXI E100 E102 0.4-22KW 11kw Pumps And Frequency Inverters
2. Introduction of
DELIXI E100 E102 0.4-22KW 11kw Pumps And Frequency Inverters
The CDI-E102-series inverter is a classic-type low-power inverter with optimum SVC and V/F control, stable performance and simplified functions. It reserves the configuration most-frequently used by users, and is more cost-effective .
3. Technical Characteristics of
DELIXI E100 E102 0.4-22KW 11kw Pumps And Frequency Inverters
1).Simplified Functions and More Cost-effective
Optimized configuration according to the functions most-frequently used by users, so as to reduce resource waste, improve cost performance and competitiveness.
2).Compact Structure
Optimum structure and elegant appearance; can be installed through both slides and holes; easy to use.
3).Flexible Type Selection
The 15kW or below types have standard internal brake units, and the 18.5-22kW types can have optional internal brake units. The 11kW, 15 kW types have standard DC inductors, and 18.5-22kW types can have optional DC inductors
|
|
item |
specifications |
|
Control |
Control Mode |
V/F control
|
|
Frequency Precision |
Digital: 0.02%
|
|
|
V/F Curve |
Linear, square root, any V/F |
|
|
Overload Capacity |
G-type: 150% rated current for 60s; 180% rated current for 3s
|
|
|
Start Torque |
G-type: 0.5Hz/150% (SVC); 0Hz/180% (VC) |
|
|
Speed Adjustment Range |
1:100 (SVC) 1:1000 (VC) |
|
|
Steady Speed Precision |
0.5% (SVC) 0.02% (VC) |
|
|
Torque Precision |
5% (VC) |
|
|
Torque Compensation |
Manual torque compensation (0.10%-30.0%); Automatic torque compensation |
|
|
Operating Mode |
Key-board, terminal, RS485 communication |
|
|
Basic
|
Frequency Source |
14 main sources, 14 auxiliary sources.
|
|
Torque Source |
14 torque sources, including digital setting, external analog, pulse setting,
|
|
|
Acceleration and Deceleration Time |
4 groups of lines (can be switched through the option terminals); S Curve 1, S Curve 2 |
|
|
Emergency Stop |
Interrupt the output instantaneously |
|
|
Multi-speed |
16-shift speeds at most; can be switched by different combination of order terminals |
|
|
Simple PLC |
Continuous operation of 16-shift speeds; the acceleration/deceleration time, operating
|
|
|
Inching Control |
Inching frequency and inching acceleration/deceleration time can be set separately;
|
|
|
Rotating-speed Track |
Track the start speed and operating speed of the inverter’s load |
|
|
Length and Distance Control |
Length and distance control through pulse inputs |
|
|
Counting |
Counting through pulse inputs |
|
|
Swing Frequency |
For winding machines in the textile industry |
|
|
Internal PID |
Closed-loop process control system is available |
|
|
AVR |
Ensure constant output in case of fluctuating grid voltage |
|
|
DC Brake |
Quick and stable parking is available |
|
|
Slip Compensation |
Compensate the slip deviation due to increased load |
|
|
Hopping Frequency |
Prevent resonance with the load |
|
|
Droop Function |
Balance the load rate of different motors which drive the same load |
|
|
Timing |
Automatic stop at a given time |
4. Applications of
DELIXI E100 E102 0.4-22KW 11kw Pumps And Frequency Inverters
Mainly applies to low-power non-VC situations with demanding requirements for input/output.
Die-cutting machine, carving machine, textile machine, glass-making machine and dyeing machine.
5. Accessories of
DELIXI E100 E102 0.4-22KW 11kw Pumps And Frequency Inverters
External keyboard, extension cord, E102-485 communication expansion card.
6.
Other Models of E Series to Choose
