Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
blade thickness:
-
2pt 3pt 4pt
-
Rule height:
-
50mm
-
Funtion:
-
Bending, Multi bridge,Lipping cut, Straight cut
-
Keyword:
-
steel rule bender machine
-
Weight:
-
520KG
-
Application:
-
Die Making Die Cutting Bending Machine
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
speedy laser
-
Weight (KG):
-
520
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
blade thickness:
-
2pt 3pt 4pt
-
Rule height:
-
50mm
-
Funtion:
-
Bending, Multi bridge,Lipping cut, Straight cut
-
Keyword:
-
steel rule bender machine
-
Weight:
-
520KG
-
Application:
-
Die Making Die Cutting Bending Machine

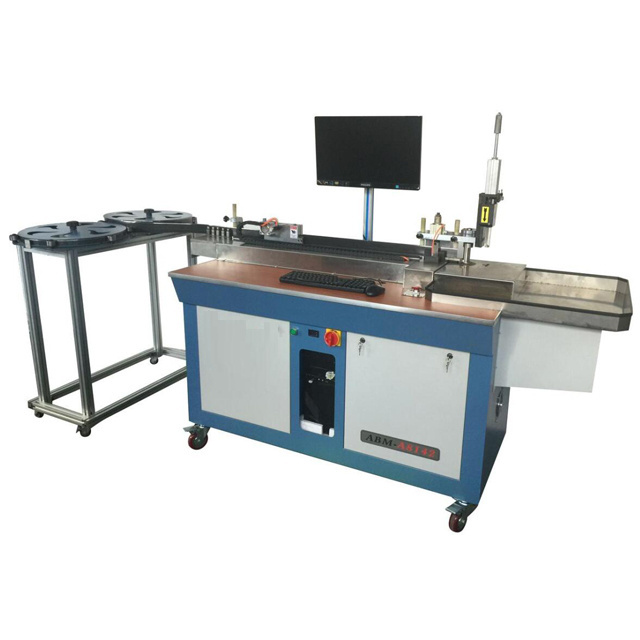

(ABM-A8142) 2pt 3pt 4pt 50mm blade steel rule auto bender machine
Machine Technical parameters:
|
Bending Blade thickness(mm) |
2pt /3pt/4pt |
|
Bending Blade height(mm) |
23.8-50mm |
|
Max bending angle |
95 degree |
|
Front Min. Cutting size |
2.5 mm |
|
Back Min. Cutting size |
1.0 mm |
|
Feeding precision |
± 0.03mm |
|
Bending flatness |
± 0.2mm |
|
Functions |
Bending, cutting, bridge , external manual lipping |
|
Cutting methods |
Swaying-off or Auto flat cutting |
|
Optimal pattern format |
DXF, DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
AC 220V 13.6A 50-60HZ |
|
Machine total power |
3.3KW |
|
Net Weight. |
450 KG |
|
Overall dimension |
2140×800×1340mm(L×W×H) |
|
H.S. Code |
8462219000 |
Machine Features:
a) The most reliable & economical auto bender machine for bending,bridging,cutting and lipping.
b) Available for 50mm height blade. 4 pt thickness rule.
c) Stable and powerful bridging system,precision cutting and lipping.
d) Smart software easy operate,multi language support.
