Wanglink Manufacturer OEM 8 Port 1000Mbps Network PoE Gigabit Reverse POE Switch

Wanglink Manufacturer OEM 8 Port 1000Mbps Network PoE Gigabit Reverse POE Switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $11.5

≥500 Pieces

US $11

≥1000 Pieces

US $10.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Wanglink

Key Feature1:: 8 Port 10/100/1000Mbps Network Reverse Switch

Key Feature2:: Reverse Switch 8 Port Poe RPOE Switch

Key Feature3:: 8 Port Poe RPOE Switch with 12V&5V Output

Transmission Speed:: 10 / 100/1000Mbps

Service:: OEM/ODM

POE type:: Reverse POE

Communication Mode:: Full-Duplex

Uplink Interfaces:: 1*10/100/1000M Data Uplink Port

Downlink:: 7*10/100/1000M Reverse POE Ports

Quick Details

Type:: FTTH

Model Number:: WOR-SYGP-08P

Place of Origin:: Guangdong, China

Brand Name:: Wanglink

Key Feature1:: 8 Port 10/100/1000Mbps Network Reverse Switch

Key Feature2:: Reverse Switch 8 Port Poe RPOE Switch

Key Feature3:: 8 Port Poe RPOE Switch with 12V&5V Output

Transmission Speed:: 10 / 100/1000Mbps

Service:: OEM/ODM

POE type:: Reverse POE

Communication Mode:: Full-Duplex

Uplink Interfaces:: 1*10/100/1000M Data Uplink Port

Downlink:: 7*10/100/1000M Reverse POE Ports

Recommend Products

Product Description

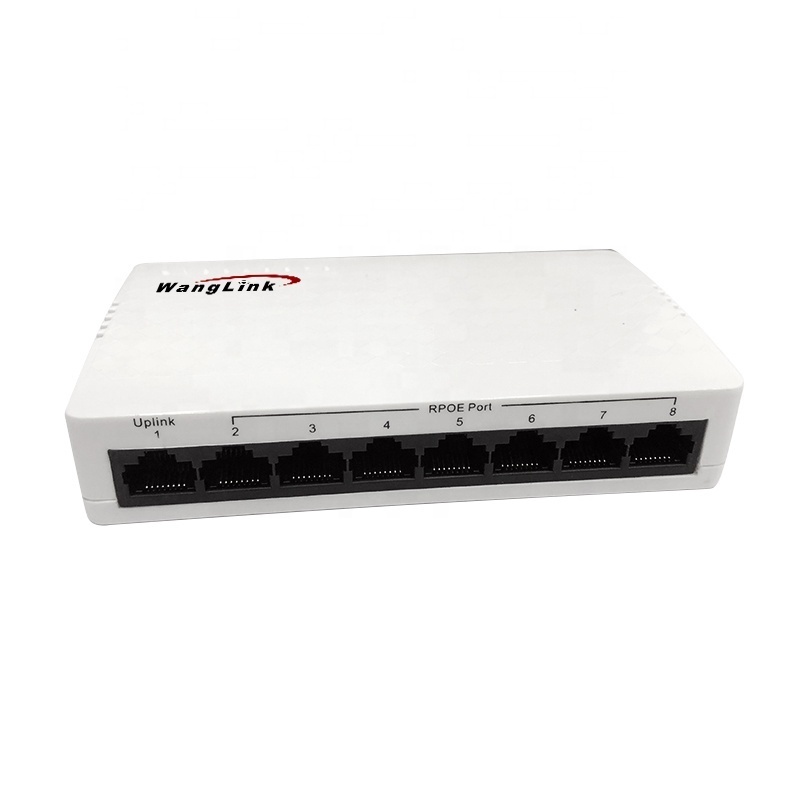

Wanglink Manufacturer OEM 8 Port 1000Mbps Network PoE Gigabit Reverse POE Switch

WOR-SYGP-08P is an Reverse POE switch with reverse power supply that powers the device through the user's network cable and a special POE power module. At the same time, the device itself can also provide 12V DC power for other terminal devices. It effectively solves the problem of the device being far away from the power supply. What's more, you can turn off the power when you don't need it, which is both energy efficient and environmentally friendly. There are 8 10/100/1000Mbps Ethernet RJ45 ports.

Products Show

Product name	Wanglink Manufacturer OEM 8 Port 1000Mbps Network PoE Gigabit Reverse POE Switch
Model No.	WOR-SYGP-08P
Standard	IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3z 1000Base-SX/LX, IEEE802.3x Flow control, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3q VLAN
Ethernet Port	Connector: RJ45 Data Rate: 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level
Performance	Processing Type: Store and Forward MAC Table Size: 4K Buffer Space: 1Mbit Maximum Packet Length: 9216 bytes Back bandwidth: 20G Time Delay:<20μs
Power	Power type: POE network power supply Cable core: 1/2+,3/6- 4/5+,7/8- Input Voltage: DC15V~48V Output Voltage: 12V Power Consumption: 2.2W~4.5W
Environment	Storage Temperature: -40~70℃ Operating Temperature: -10~55℃ Relative Humidity: 5-90% ( no condensation)
Mechanical Structures	Dimension: 217×110×28mm Weight: 0.25kg

Products Show

Reverse Poe Switch

Support the switch between 10/100/1000Base-T and 100/1000Base-SX/LX. 8*100/1000M Ethernet ports with auto-negotiation function. Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function.

Each port has the complete LED Indicator light.3 modes available: single mode single fiber, single mode dual fiber, multi mode dual fiber.

Simple operation, plug and play

Support 15-48V voltage input through network cables from ending equipment. 1/2+,3/6- 4/5+,7/8- are both optional for power supply. 12V DC voltage output.
