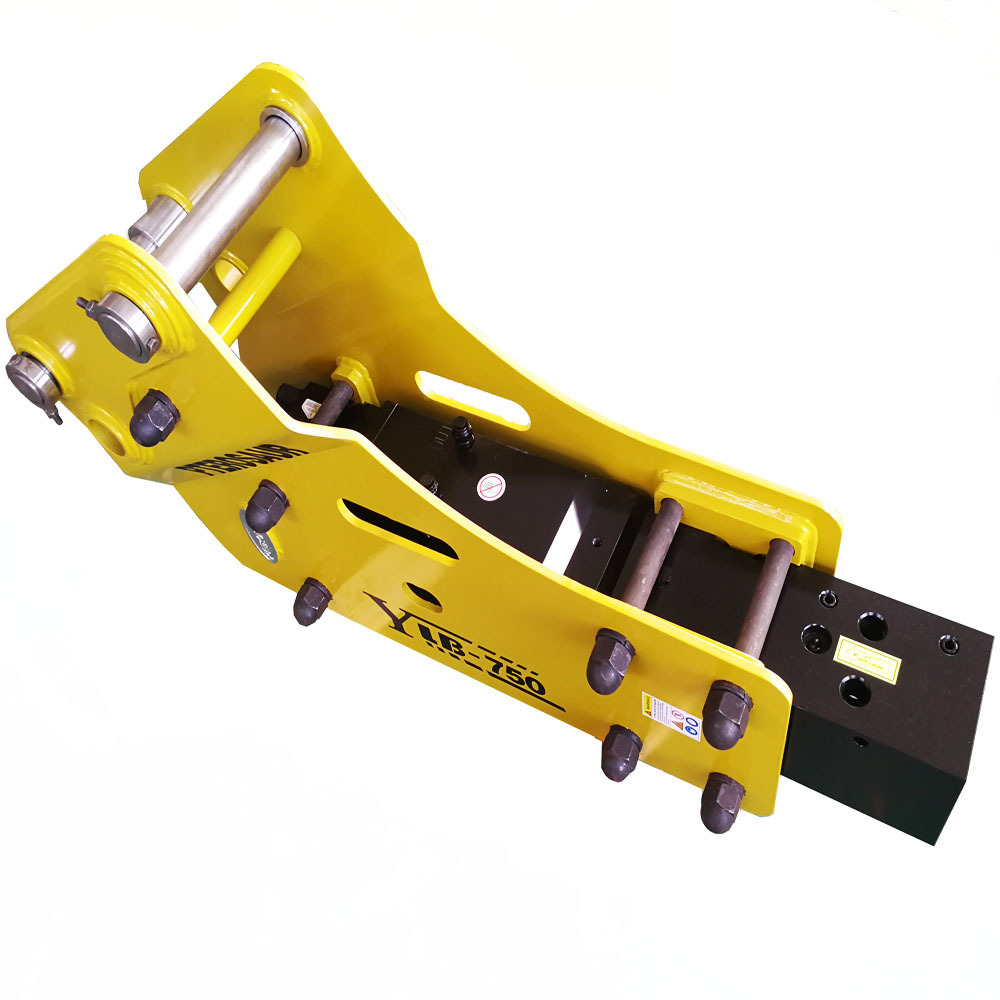

OEM ODM High Durability Hydraulic Concrete Rock Breaking Hammer for Site Machinery Silencing Jack Hammer 9 Ton Excavator

OEM ODM High Durability Hydraulic Concrete Rock Breaking Hammer for Site Machinery Silencing Jack Hammer 9 Ton Excavator

FOB Reference Price: Get Latest Price

≥1 Pieces

US $900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Condition:: hydraulic rock breaker hammer

Applicable Industries:: Building Demolition

Weight:: 450 kg

Suitable Excavator(ton):: 6-9T

Length:: hydraulic rock breaker hammer

Core Components:: hydraulic-gas

Product name:: silent hydraulic rock breaker hammer damper for secondary crushing

Material:: 20CrMo

Color:: Customer's Request

Rod diameter:: 75mm

System:: Hydraulic-system

Delivery:: Within 10 Days

Package:: Standard Wooden Case

OEM:: Acceptable

contact:: 008613255522679

Certification:: ISO9001-9002

Quick Details

Place of Origin:: Shandong, China

Brand Name:: pterosaur

Model Number:: YLB750

Condition:: hydraulic rock breaker hammer

Applicable Industries:: Building Demolition

Weight:: 450 kg

Suitable Excavator(ton):: 6-9T

Length:: hydraulic rock breaker hammer

Core Components:: hydraulic-gas

Product name:: silent hydraulic rock breaker hammer damper for secondary crushing

Material:: 20CrMo

Color:: Customer's Request

Rod diameter:: 75mm

System:: Hydraulic-system

Delivery:: Within 10 Days

Package:: Standard Wooden Case

OEM:: Acceptable

contact:: 008613255522679

Certification:: ISO9001-9002

Suitable Excavator Model

**YLB750 technical data
required oil flow:50-90L/MIN

impact rate:450-800BMP

working pressure:120-150KG/CM2

rod diameter:75mm
applicable carrier:6-9ton

operating weight:435kgs
valve Ass'y Position:internal

Brand	YLB680 for excavator model	YLB750 for excavator model
CAT	205 206
KOMATSU	PC40 PC45 PC50 PC60	PC45 PC50 PC60
DOOSAN DAEWOO	DH55 DH60
HYNUDAI	RB55-7 RB60-7	ZX60 ZX60W
HITACHI	ZX60 ZX60W
KOBELCO	SK60	SK60
VOLVO	EC55
KUBOTA	50 55	60
SANY	SY55C-9 SY60C-9 SY65C-9	SY65C-9 SY75C-9
YUCHAI	YC35 YC55 YC65	YC65
LIUGONG	CLG904 CLG905 CLG907	CLG907
STRONG	JCM906D GC60	JCM908D JC78 JCM907D GC88
LINGONG	LG660 LG665	LG685 LG690
FOTON	45	60 65
XGMA	Aug-60	22129
SUNWARD	SWE40/50/60/70/80	SWE60/70/80
ZOOMLION	ZE60E-1	ZE85E
XCMG	40 60	60 70 80
If you cannot confirm the model, please click to contact us online to help you.

Tips: Tonnage and excavator model are important parameters for hydraulic breaker selection

If you can not confirm the model to be install your excavator, please contact me in time, we can been in this field for more than 20 years with rich experience. We will provide reasonable suggestions for you.

SOOSAN breakers technical data

Model	Excavator tonnage	Operating Weight Box/Open/Side	Working Flow	Working Pressure	Impact Rate	Hose Dia.	Tool Dia.
	(ton)	(kgs)	(L/min)	(bar)	(bpm)	(inch)	(mm)
Light Type Hydraulic Breakers
YLB450 (SOOSAN 20)	0.8-3	120/100/80	15-30	90-120	600-1200	1/2	45
YLB530 (SOOSAN 30)	2.5-4.5	180/152/130	25-50	90-120	550-1000	1/2	53
YLB680 (SOOSAN 40)	4-7	350/320/300	40-70	100-140	500-800	1/2	68
YLB750 (SOOSAN 43)	6-9	435/400/396	50-90	120-150	450-800	1/2	75
YLB1000 (SOOSAN 50)	11-16	860/820/760	80-120	160-180	350-700	3/4	100
Medium Type Hydraulic Breakers
YLB1350 (SOOSAN 70)	18-21	1780/1720/1650	100-150	180-210	350-600	1	135
YLB1400 (SOOSAN 81)	20-26	1825/1780/1750	130-170	190-220	350-500	1	140
YLB1500 (SOOSAN 100)	25-30	2300/2230/2100	150-210	210-230	300-450	5/4	150
YLB1550 (SOOSAN 121)	28-35	2850/2780/2600	170-220	220-240	300-450	5/4	155
Heavy Type Hydraulic Breakers
YLB1650 (SOOSAN 131)	30-40	3560/3350/3200	200-260	230-250	250-400	5/4	165
YLB1750 (SOOSAN 151)	35-45	3990/3850/3750	210-260	240-260	250-350	5/4	175

Production Procedure

Control valve- 15CrMo

Do grinding process with high precision.

Piston-20Cr2Ni4

Do grinding process. It will have good concentricity. It will reduce the piston scratch problem.

Cylinder inner-20CrMo

61.8HRC hardness. Main body is resistant to deformation, ripping, or scratching

We produce all kinds of accessories for breakers, each part is strictly quality controlled including the raw material, heat treatments, size and production technology, etc. All adopt best raw material in the Chinese market purchasing from large steel mill.

Main body including front head, cylinder body, back head: 20CrMo

Front cover and inner bushing: 20CrMo Piston: 20Cr2Ni4

Though bolts, side bolts, Rod Pin, Chisel: 42CrMo

Control valve: 15CrMo

Seal kit: NOK and Parker brand made in Japan and America

Cylinder-20CrMo

Brackets-Q345 steel

Bushing- 20CrMo

Imported DONGYANG brand breaker from Korea since 1998 and participate in the Shanghai Bauma exhibition together, and as Korean brand stable supplier now with positive reviews

Always hire Korea Engineers to study Korean technology to produce SOOSAN and FURUKAWA series breakers

Specialized in R&D Heavy-duty hydraulic breakers. already successfully developed breakers with 210 mm and 230 mm diameter. Chisel

Comments from Customers

A harsh working environment can test the quality of a product. Feel free to contact me to view more customer reviews. Our hydraulic breakers are mostly used in mines and quarries for round-the-clock work.

How to make your money and goods safe?

We can make a deal through Alibaba, and draft an assurance order, you can pay it through credit card and bank transfer. It can protect your side interests. You also track the shipping information of your goods

Packing and Delivery

Packing:

1. Inner is stretch film
2. Outside is export wooden case
3. As per customer's request
Delivery time: Usually 3-7days after down payment. We could arrange ocean or air transportation according to your request from any
port of China.

Standard Accessories:

*Chisels x 2 pcs
*Hydraulic Oil Hoses x 2 pcs
*Nitrogen Charging Kit with Pressure Gauge x 1 set
*Nitrogen Bottle x 1 pcs
*Tool Box with necessary maintenance tools x 1 set
* User's Manual x 1 pcs.

Factory in a Glance

FURUKAWA breakers technical data

Description/Model			Unit	YLB-15G	YLB-20G	YLB-30G	YLB-40G	YLB-50G
Operating Weight	Box	kg	1310	1777	2540	3110	4150
		Open	kg	1230	1740	2420	3020	4100
		Side	kg	1200	1700	2380	2900	3922
Required Oil Flow			L/min	90-120	130-150	150-190	190-250	180-350
Working Pressure			kg/cm ³	160-180	160-180	170-190	180-200	200-220
Rod Diameter			mm	120	135	150	160	180
Impact Rate			bpm	400-900	400-800	300-750	250-500	110-190
Hose Diameter			inch	3/4	1	1	5/4	5/4
Excavator tonnage			ton	13-18	18-22	27-30	35-45	35-50
The parts size and working performance are same as the FAMOUS brand made in Korea.

Accumulator with powerful impact force

two adjustment valves for adjusting piston stroke and frequency

FURUKAWA HB20G

Our Service and RFQ

You deserve a good a good sales and service person and product.

1. 7Days*24Hours after-sales service by email and phone
2. Providing local market information and trends and how to develop market
3. Your inquiry will be replied in 24 hours during working days
4. Our customer-oriented sales and technical team are always at your service
5. Warranty: 18 months warranty for hydraulic breaker, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).

Q: Are you a manufacturer?
A: Yes, our factory was established in 2009 and we have ability to trading

Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.

Q: Can you provide customers' design?
A: Sure, we can provide OEM and ODM services. Also, we can design new appearance for you

Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, Western Union accepted, other terms can be negotiated.

Q: How about the delivery time?
A: 5-25 workdays after the payment, depending on your quantity.

Q: How about the package?
A: Our hydraulic breaker wrapped by stretch film, packed by pallet or polywood case.
