Quick Details
-
Mounting Type:
-
Wiring and installation
-
Description:
-
liquid level sensor, liquid level sensor
-
Model Number:
-
FS-1
-
Brand Name:
-
aikon
-
Theory:
-
Buoyancy principle
-
Output:
-
signal
-
Appearance:
-
Sealed sphere
-
Cable:
-
rubber
-
Ingress protection:
-
IP68
-
Working temperature:
-
0~60℃
-
Color:
-
Oranger
-
Body:
-
PP
-
Micro Switch:
-
250VAC/10A
-
Depth of immersion:
-
Max 20m(65.6FT)
-
Connection voltage:
-
48v or 24v
-
Warranty:
-
7 years
Quick Details
-
Use:
-
Measuring liquid level
-
Series:
-
liquid level sensor
-
Features:
-
Ball
-
Mounting Type:
-
Wiring and installation
-
Description:
-
liquid level sensor, liquid level sensor
-
Model Number:
-
FS-1
-
Brand Name:
-
aikon
-
Theory:
-
Buoyancy principle
-
Output:
-
signal
-
Appearance:
-
Sealed sphere
-
Cable:
-
rubber
-
Ingress protection:
-
IP68
-
Working temperature:
-
0~60℃
-
Color:
-
Oranger
-
Body:
-
PP
-
Micro Switch:
-
250VAC/10A
-
Depth of immersion:
-
Max 20m(65.6FT)
-
Connection voltage:
-
48v or 24v
-
Warranty:
-
7 years
Products Description

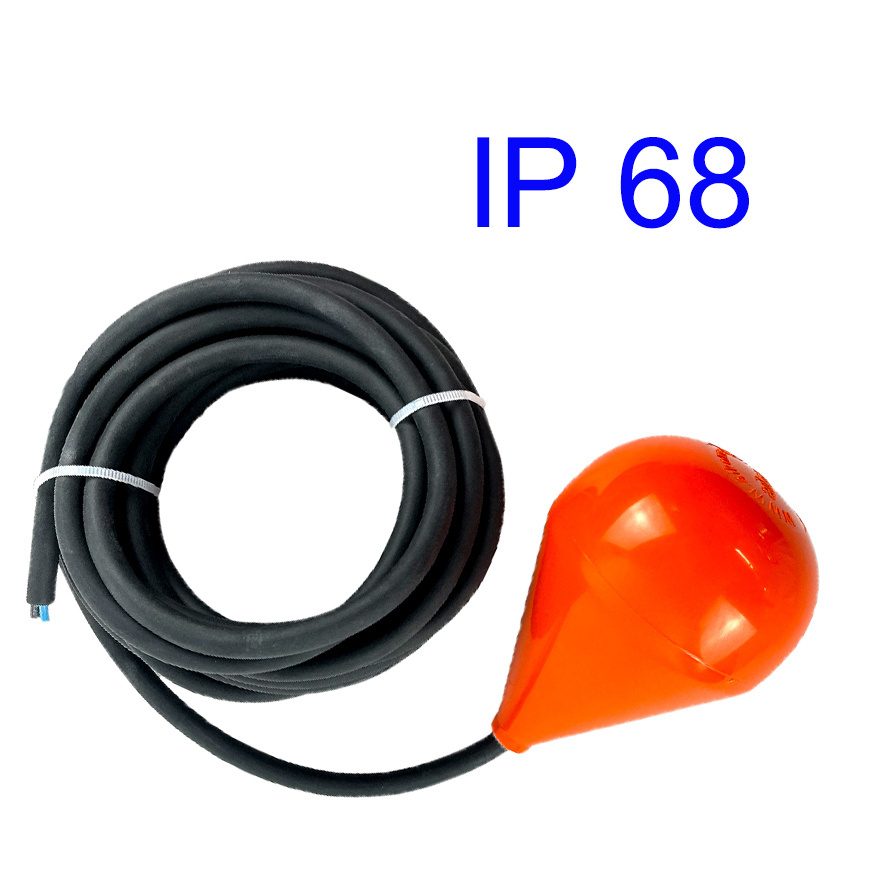

Model:FS-1
Brand: aikon
FS-1 In the sewage or rain water pump station, it is often mixed with a large number of solid impurities, long fiber solid waste,traditional float switch, cable may be entangled by solid waste, resulting in sensor stuck, failure, will cause the long-term
operation of the pump does not stop, or does not run, unable to discharge the medium in time, the pump station does not work,increase a lot of maintenance work, have an impact on the life of the pump Sound, FS-1 unique sensor design, to avoid a series of problems caused by cable winding, sensor operation is stable, is the best choice for sewage pumping station.
FS-1 In the sewage or rain water pump station, it is often mixed with a large number of solid impurities, long fiber solid waste,traditional float switch, cable may be entangled by solid waste, resulting in sensor stuck, failure, will cause the long-term
operation of the pump does not stop, or does not run, unable to discharge the medium in time, the pump station does not work,increase a lot of maintenance work, have an impact on the life of the pump Sound, FS-1 unique sensor design, to avoid a series of problems caused by cable winding, sensor operation is stable, is the best choice for sewage pumping station.
Product Paramenters
|
Item
|
High quality closed ball liquid level sensor
|
|
Warranty
|
7 years
|
|
Customized support
|
OEM, ODM
|
|
Brand Name
|
aikon
|
|
Materials
|
ABS
|
|
Storage temperature
|
-20~80°C
|
|
Cable type and approvals
|
CPE(Rubber)Cable
|
|
Protection
|
IP68
|
|
Max working pressure
|
1.2 bar (12m water depth)
|
|
Approval
|
CE/ISO9001
|
|
Power
|
220V/380V
|
|
motor
|
induction motor
|
|
Cable Length
|
5m,10m,20m
|
