Quick Details
-
Material:
-
HDPE
-
Diameter:
-
10m-40m or customized size
-
Shape:
-
Round Square
-
Fish cage Frame System Material:
-
Eco-HDPE
-
Fish Cage Net:
-
knotted / knotless net
-
Fish cage Perimeter:
-
30-160m
-
Anti-Windstorm capacity:
-
Max Grade 11
-
Ability of anti-wave:
-
Max wave high of 5m in the water
-
Anti-flow capability:
-
Max flow rate of 1.5m/s
-
Customized Fish Cage:
-
OK
-
Installation Service:
-
Available if needed
-
Usage:
-
Aquaculture fish farm
-
Product name:
-
Qihang Aquaculture fish farming floating net cages
-
Place of Origin:
-
Shandong, China
Quick Details
-
Use:
-
Fish
-
Brand Name:
-
Qihang Cage
-
Model Number:
-
QH-FISH CAGE
-
Material:
-
HDPE
-
Diameter:
-
10m-40m or customized size
-
Shape:
-
Round Square
-
Fish cage Frame System Material:
-
Eco-HDPE
-
Fish Cage Net:
-
knotted / knotless net
-
Fish cage Perimeter:
-
30-160m
-
Anti-Windstorm capacity:
-
Max Grade 11
-
Ability of anti-wave:
-
Max wave high of 5m in the water
-
Anti-flow capability:
-
Max flow rate of 1.5m/s
-
Customized Fish Cage:
-
OK
-
Installation Service:
-
Available if needed
-
Usage:
-
Aquaculture fish farm
-
Product name:
-
Qihang Aquaculture fish farming floating net cages
-
Place of Origin:
-
Shandong, China
|
L*W(M)
|
Diameter of floating pipe(MM)
|
Diameter of handrial pipe(MM)
|
Diameter of stand pipe(MM)
|
|
3m * 3m
|
200mm
|
90mm
|
110mm
|
|
4m * 4m
|
200mm
|
90mm
|
110mm
|
|
5m * 5m
|
200mm
|
90mm
|
110mm
|
|
6m * 6m
|
200mm/250mm
|
90mm/110mm
|
110mm/125mm
|
|
7m * 7m
|
250mm/315mm
|
110mm
|
125mm
|
|
8m * 8m
|
250mm/315mm
|
110mm
|
125mm
|
|
9m * 9m
|
250mm/315mm
|
110mm
|
125mm
|
|
10m * 10m
|
315mm
|
110mm
|
125mm
|
|
12m * 12m
|
315mm/350mm
|
110mm/125mm
|
125mm/--
|
|
15m * 15m
|
315mm/350mm
|
110mm/125mm
|
125mm/--
|
|
20m * 20m
|
350mm/400mm
|
125mm
|
--
|
|
Specification and Size
|
|
|
|
|
||||
|
Perimeter
|
30m-50m
|
40m-80m
|
60m-120m
|
120m-160m
|
||||
|
Floating Pipe
|
dia 200mm
|
dia 250mm
|
dia 315mm
|
dia 400mm
|
||||
|
Bracket
|
L200
|
L250
|
L315
|
L400
|
||||
|
Handrail Pipe
|
dia 90mm
|
dia 110mm
|
dia 110mm
|
dia 125mm
|
||||
|
Sinker Pipe
|
dia 110mm
|
dia 125mm
|
dia 160mm
|
dia200/250mm
|
||||

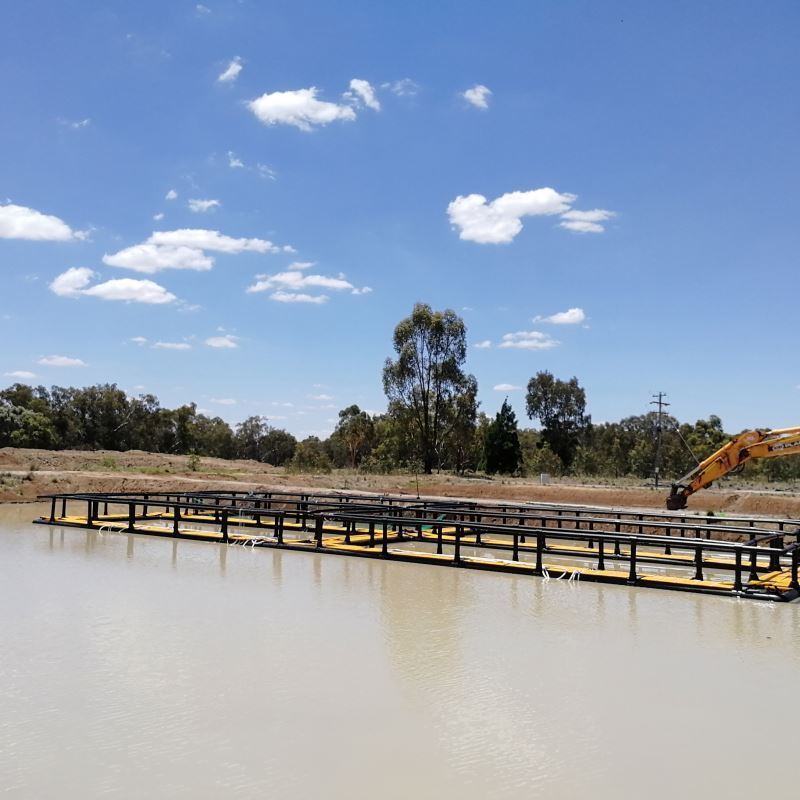

Qihang Aquaculture fish farming floating net cages
Qihang Fish Cage is made from HDPE tubular product and cage fitting, using foreign imported special-cage purpose polyethylene raw material. This kind of tubular product has good strength and tenacity. Using unique structure design by our company, the frame will have the ability to resist stormy waves, meanwhile all frame materials go through the ultraviolet rays aging resist and seawater corrosive resist process, and the service life is over 15 years.
According to customer demand the circumference from 30m to 160m, net depth from 5m to 30m. Effective farming up to 30,000 m3.
Advantage:
1. High intensity
2. Excellent flexibility
3. Corrosion resistant
4. Strongly resistant to the storm
5. Long service life
6. Sufficient aquaculture water volume with high efficiency and low comprehensive cost
7. Less pollution and high-grade aquaculture water resulted in the perfect quality of the fish products, the desirable benefits and returns.
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* View our Projects in Qingdao.
After-Sales Service
* Training how to instal Fish Cage, training how to use the machine.
* Engineers available to solve problems after using.
